10J 10-Channel Air Radio with R3008SB Rx, Mode 2

FEATURES

• Telemetry System
  A T-FHSS Air bidirectional communication system is used. The voltage of the battery mounted in the fuselage can be displayed at the transmitter during flight. Altitude, speed, temperature, and other fuselage data can be displayed at the transmitter by installing various optional telemetry sensors in the fuselage.
• Speech Function
  Telemetry data can be listened to by plugging commercial earphones into transmitter.
• Built-In Diversity Antenna
  Diversity antenna built into the transmitter provides a simple appearance and improves handling ease.
• S.BUS/S.BUS2 System
  S.Bus/S.Bus2 Servo channel and various functions can be set by connecting the servo to the transmitter.
• Power-Saving Type Transmitter
  Four AA alkaline batteries can be used. The optional HT5F1800B (NiMH 6.0 V, 1800 mAh) or FT2F2100BV2 (lithium-ferrite 6.6 V, 2100 mA) battery can also be used.
• Vibration
  A function that alerts the operator of various alarms by vibrating the transmitter can be selected.
• Unique Model Memory System
  The transmitter body contains a 30 model memory.
• Mixing Type Selection
  Fixed wing, helicopter, and glider mixing type can be selected to match the fuselage. In addition, 8 swash plate types can also be selected for helicopters. Multi-copter selection is also possible.
• Digital Trim
  Rapid trimming during flight is possible. The sound changes at the centre of trim. The step size can be arbitrarily changed. The trim position is displayed on the LCD.
• Lever head length adjustment and the new lever head shape
  The lever head length can be adjusted. A new lever head shape that reduces slip during operation has been adopted.
• Switch/VR Position Change and Aux Channel Function Change
  Mixing and other switches and knobs can be selected. Since the function of the AUX channels (5 ch ~ 10 ch) can also be changed, original mixing, in addition to existing mixing, can be created by using the programmable mixing function.
• Model Data Transfer Function
  Model data can be wirelessly transferred between 10J or 8J transmitters.
• Compatible Receivers:
  T-FHSS Air (Default): R3001SB, R3004SB, R3006SB, R3008SB
  S-FHSS (Change is possible): R2001SB, R2008SB, R2006GF, R2106GF

CONTENTS

• 1x T10J Transmitter
• 1x R3008SB Receiver
• 1x Switch Harness

DETAILS

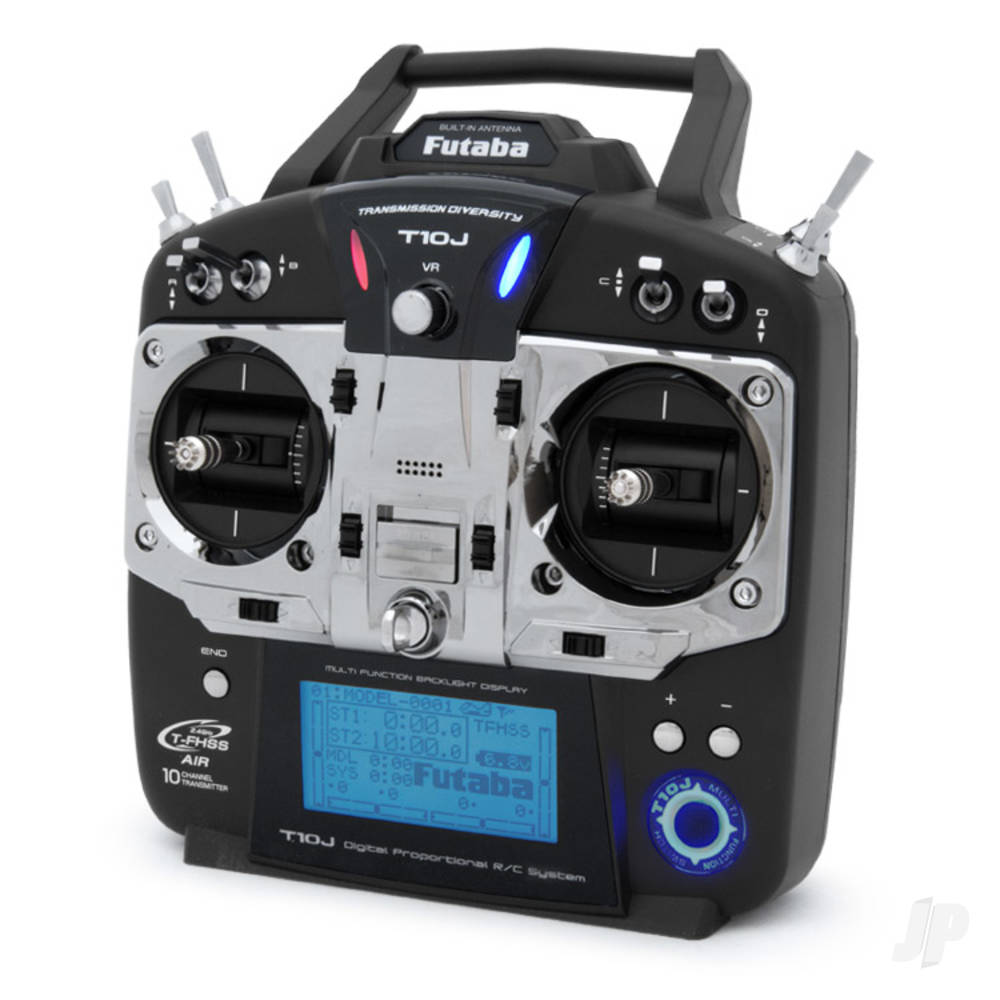

10J Transmitter 10-Channel Digital Proportional RC System

Transmitter Specs

• Transmitter Frequency:
  2.4 GHz band
• System:
  T-FHSS Air, S-FHSS, switchable
• Power Supply:
  6.0V Dry Battery
• Frequency Band:
  2.4 GHz
• RF Power Output:
  100mW EIRP

Receiver Specs

R3008SB

Features:

• T-FHSS Air system is S.Bus compatible
• EXT Battery Terminal
• Battery Fail Safe Function

Size:
24.9 x 47.3 x 14.3 mm
0.98 x 1.86 x 0.56 in

Weight:
10.1 g

Rated Voltage:
DC 4.8 ~ 7.4V

Operating Voltage
DC 4.0 ~ 8.4V

Compatible receivers as of 29 June 2022

S-FHSS PROTOCOL

• R2008GS
• R2008SB
• R2106SB
• R2001SB
• R2000SBM

T-FHSS TELEMETRY PROTOCOL

• R3001SB
• R3004SB
• R3006SB
• R3008SB

T-FHSS MONO (NON-TELEMETRY)

• R3206SBM
• R3106GF
