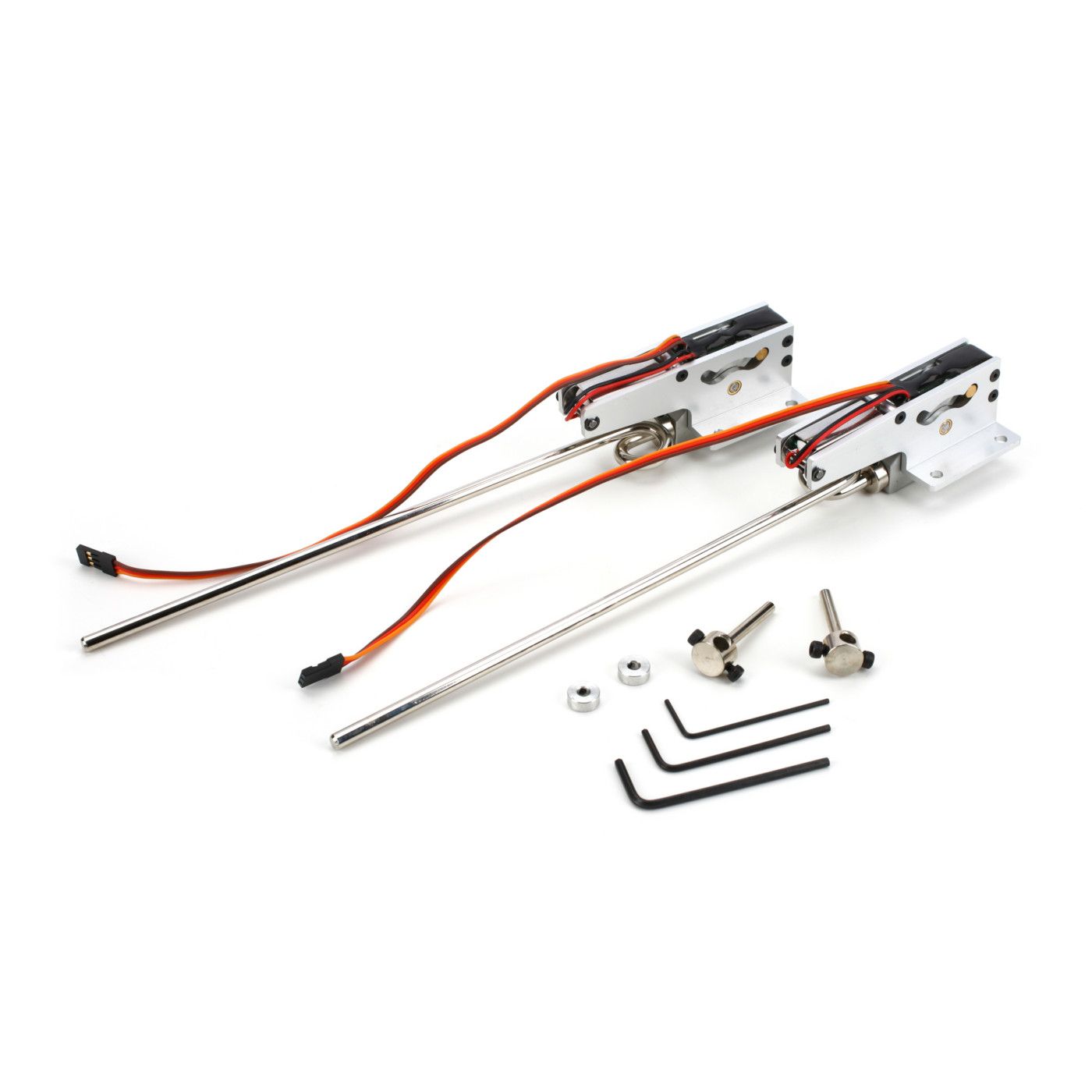

25-46 100 Degree Rotating Electric Retracts - Image 1
Click to enlarge
90 Deg Rotating Retract Pair: F4U-4 1.2M
90 Deg Rotating Retract Pair: F4U-4 1.2M £103.49
Back to products
60 - 120 Adjustable Axles
60 - 120 Adjustable Axles £17.99

25-46 100 Degree Rotating Electric Retracts

EFL

£206.99

RRP: £229.99
You save: £23.00

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Available on back-order

Add to wishlist
Add to compare
SKU: LOGIC-F-EFLG320 Categories: , , , , ,

Key Features

  • All-aluminum CNC-machined retract unit
  • Integrated electric motor with a micro PCB eliminating the need for a retract servo
  • Brass wheel collars and fully-bushed brass pivot points for smooth, trouble-free operation
  • Built-in over-current protection
  • Scale-appearance 100-degree retraction sweep and 90-degree rotation
  • Chrome-plated landing gear strut
  • Recommended for use in the Hangar 9® F4U-1D Corsair 50 ARF, .46-.55 (HAN2590)
  • Strut diameter: 4mm

Specifications

Current draw
Idle: 5mA
Operating: 900mA (maximum)

Pulse width trigger points
Down: 1.331ms
Up: 1.690ms

Operation with FM and DSM
FM: 22ms frame rate, 5V signal
DSM: 20ms frame rate, 3.3V signal

Sequence time
@4.8V 2.75sec
@6.0V 2.50sec
@7.4V 2.25sec

Operating voltage range
4.8—7.4V

Aircraft weight
5.00–9.50 lb (2.25–4.30 kg)

Unit weight
Nose gear: 3.5 oz (99.5 g)
Main gear: 2.8 oz (79.5 g) each

Detailed Information

25-46 Size Main Retract Units (mm)
