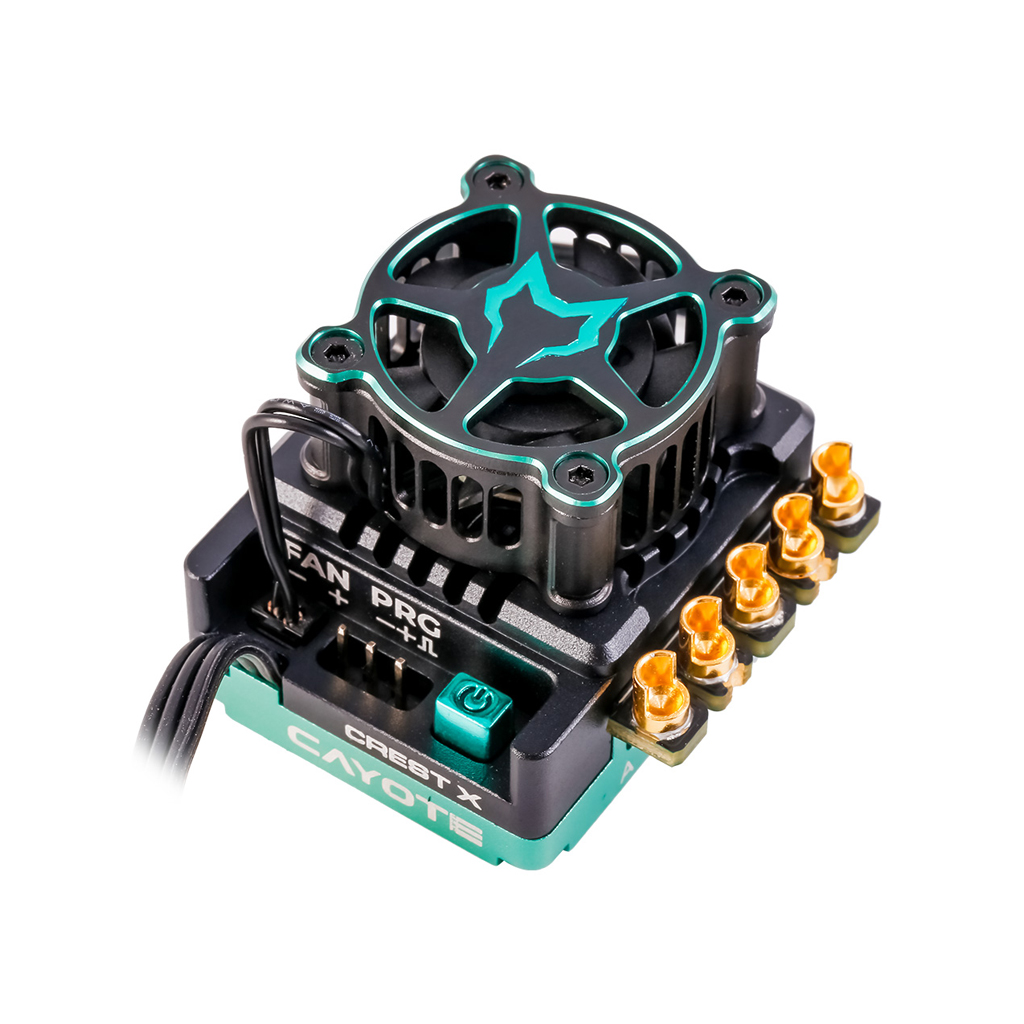

CAYOTE Racing ESC CREST X 160A

Cayote Crest X ESC delivers high performance and reliable current transmission, ensuring your RC vehicles run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with Cayote motor and battery for best performance.

Product Core Tech
Super Large 48-degree Boost & Turbo Timing
Increased power output and optimized motor efficiency.

Offline Data Recording
Track ESC’s performance, lets you make informed decisions.

Over 33 Adjustable Parameters
Supports various power and drive modes.

Built-in Super Switching Mode BEC
Support of 6V/7.4V adjustable BEC to adapt to various high power BEC.

Built-in Professional Reversing Shutdown
Only enabled in forward with brake and forward and reverse with brake modes.

Multiple Protection Functions
Low voltage protection, ESC and motor overheat protection.

BRCA Legal.

Specifications

Scale: 1/10
Mode:Sensor/Sensorless
Cont. Current: 160A
Peak Current: 1100A
Battery: 2S Lipo
BEC Output Voltage: 6.0/7.4V
BEC Output Current: 8A Cont. / 12A Peak
Firmware Upgrade: Supported
Data Recording: Extreme value, Real-time Data
Size: 37.9×31.4x30mm
Weight: 55g

Compatibility
Motor: 1/10th TC≥4.5T；1/10th Off Road≥5.5T
Vehicle: 1/10th TC; 1/10th Off Road/Etc.

Wiring and Cooling
Output Wires: Black-13AWG-180MM*3
Input Wires: Red-13AWG-180MM*1
Black-13AWG-180MM*1
Cooling Fan: 25x25x10mm, 5-8.4V BEC

ESC Programming Via
Xlink Program Box Compatible
B-Tune Connect (Optional)
Internal Program (Port)(APP Control)
