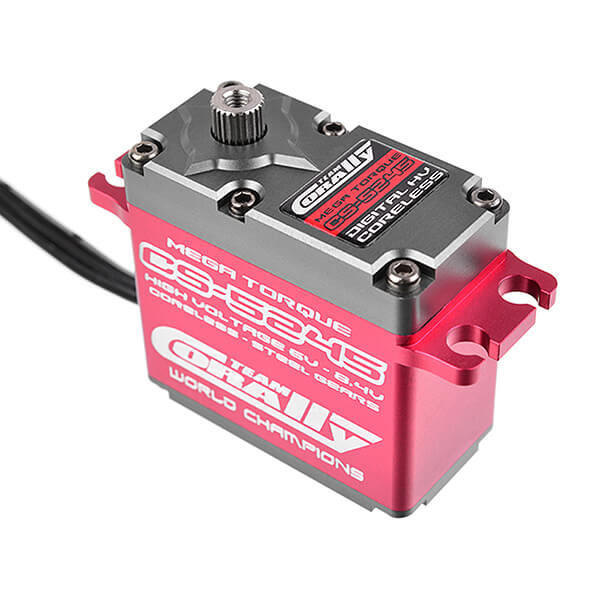

CORALLY CS5245 ULTRA H/TORQUE 45KG SERVO CORELESS MOTOR

Are you looking for some powerful control for your Monster Truck or Crawler?

We developped this servo with the racer in mind, ultimate digital power, precision and reliable.

Features

• Full CNC machined alloy case
• High Voltage 6.0 – 8.4V
• Steel gears
• Ball Raced
• Coreless motor
• Ultra high torque
• Water resistant

Specifications

Servo Technology: Digital Ultra High Voltage
Application: RC Car, RC Airplane
Input Voltage (V): 6.0V – 8.4V
Weight (g): 73 g
Servo Type / Size: Standard
Length (mm): 40.0 mm
Gear Material: Steel Gears
Width (mm): 20.0 mm
Ball Beared: Ball Beared
Motor Type: Coreless Motor
Height (mm): 37.0 mm
Servo Case: CNC alloy
Servo Power – Torque Kg/cm: > 25 Kg/cm
Servo Speed 60°/sec: 0.05 – 0.10 Sec/60°
Speed @ 6.0V: 0.12 sec/60°
Speed @ 7.4V: 0.11 sec/60°
Speed @ 8.4V: 0.10 sec/60°
Torque @ 6.0V: 37.5 kg/cm
Torque kg/cm @ 7.4V: Kg/cm
Torque @ 8.4V: 46.9 kg/cm
Connector type: JR
Spline size: 25T Spline
Water Protection: Waterproof
