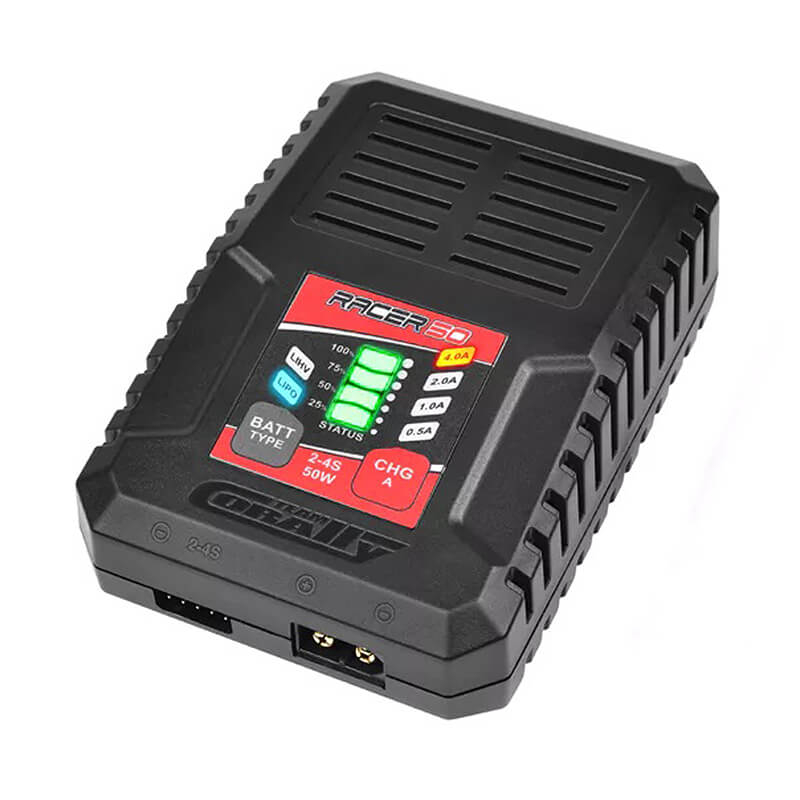

CORALLY RACER 50 AC 50W 2-4S BALANCE CHARGER

Description

Features

• AC Input (V) 100-240V AC
• Charge power 50W
• For 2-4S LiPo-LiHV batteries
• Automatic nr of cells detection
• Auto-start function
• Balance current 500mA
• Selectable charge current up to 4.0A
• Real time charge status indicator
• Multiple safety protections
  • Over-Current protection
  • Over-Voltage protection
  • Short-Circuit protection

This product is specially designed to support our customers’ needs, with features that guarantee top quality and reliability.

Important Note: 2-4S batteries with XT60 connector can be connected directly. An adapter is required for batteries with other connectors.

Specifications

Charger – Type

Type: AC Fast Charger
Suited for Battery – Cell Type: LiPo and LiHV
Nr of Cells: Li-xx 2 – 4 Cells
Display: LED Indicators

Charger – Specifications

Input Voltage (V): AC 100-240V – 50Hz
Charge Outputs: 1 x Charge Output
Output Power AC Total (Watt) Charge Power DC (Max. Watt): 50W
Charge Current (A): Selectable 0.5 – 1 – 2 – 4A
Balance Current (A): 0.5A

Charger – Safety

Audible Alarms: No
Over Current Protection: Yes
Reverse Polarity Protection: Yes

Charger – Dimensions

Length (mm): 107,00
Width (mm): 75,00
Height (mm): 35,00
Weight (g): 169,00
