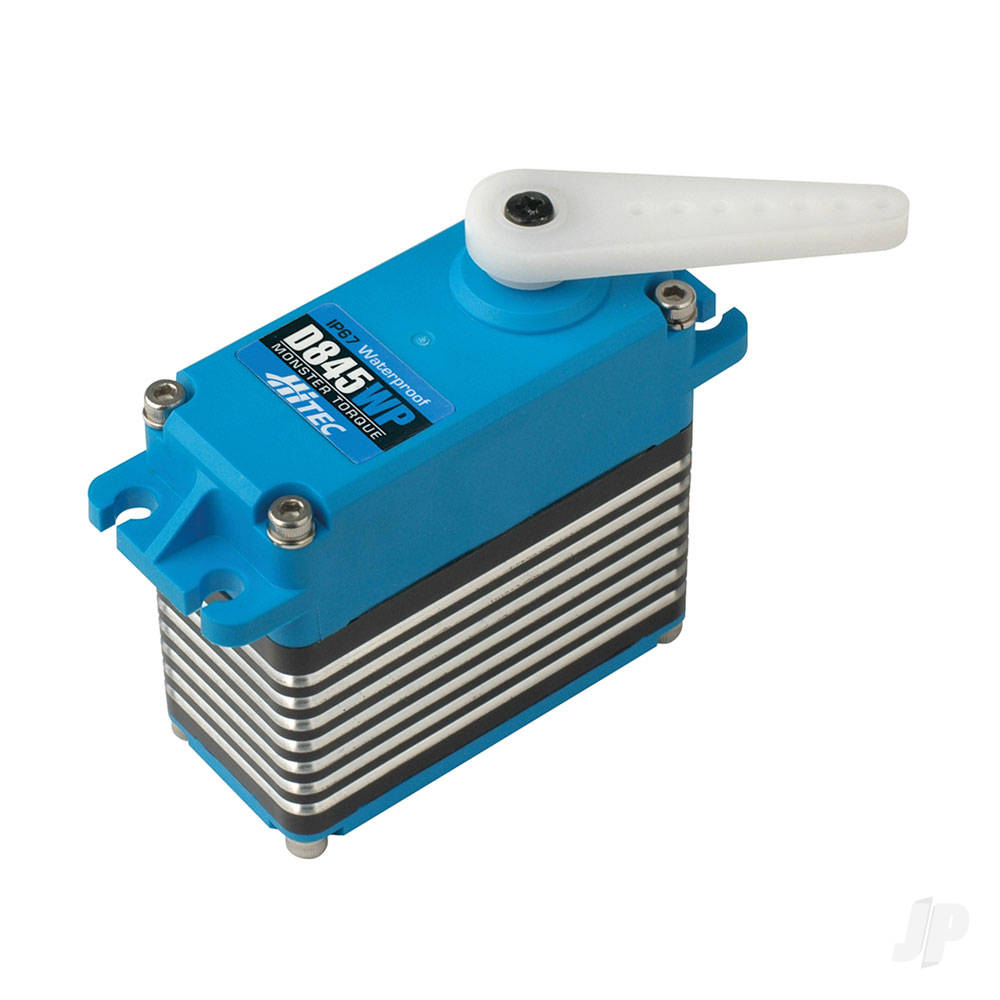

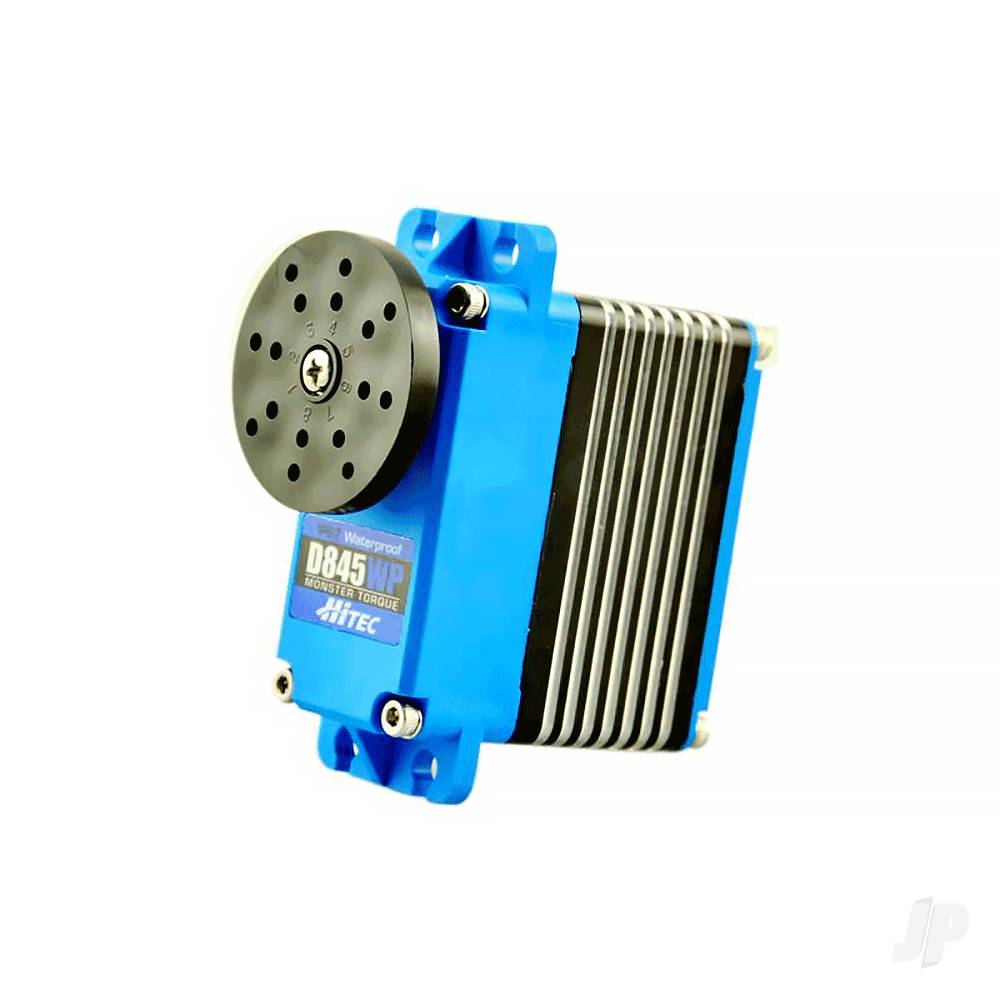

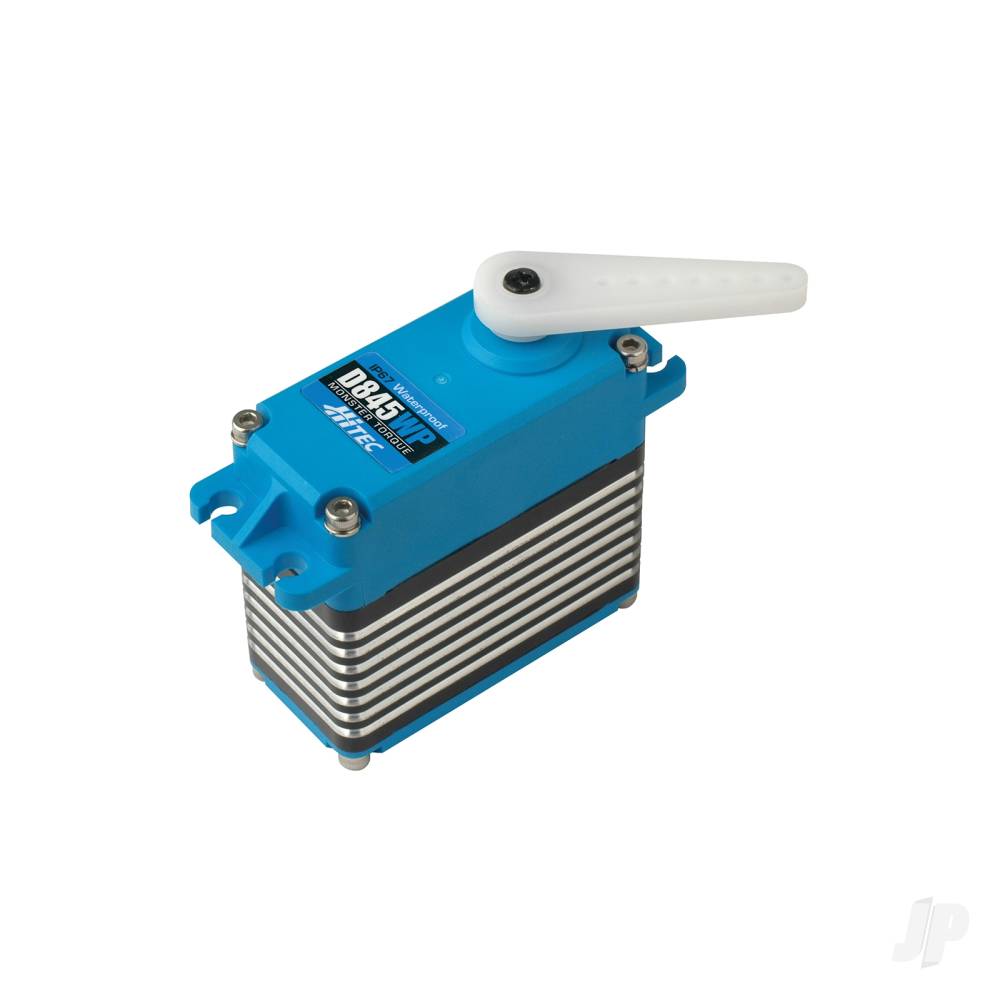

Hitec D845WP Giant Digital Cored Servo 227g 50kg/0.17s 4.8V – 7.4V

Description

FEATURES

• Part of Hitec’s D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
• Programmable high response digital amplifier with MOSFET drive.
• Durable steel gears with dual ball bearings.
• Dust resistance (IP67).
• Heat sink for motor.
• Waterproof.
• Speed at 4.8V (sec/60 ): 0.26.
• Speed at 8.4V (sec/60 ): 0.17.
• Torque at 4.8V (kg.cm): 32.5.
• Torque at 8.4V (kg.cm): 50.0.
• Resolution: 4096.

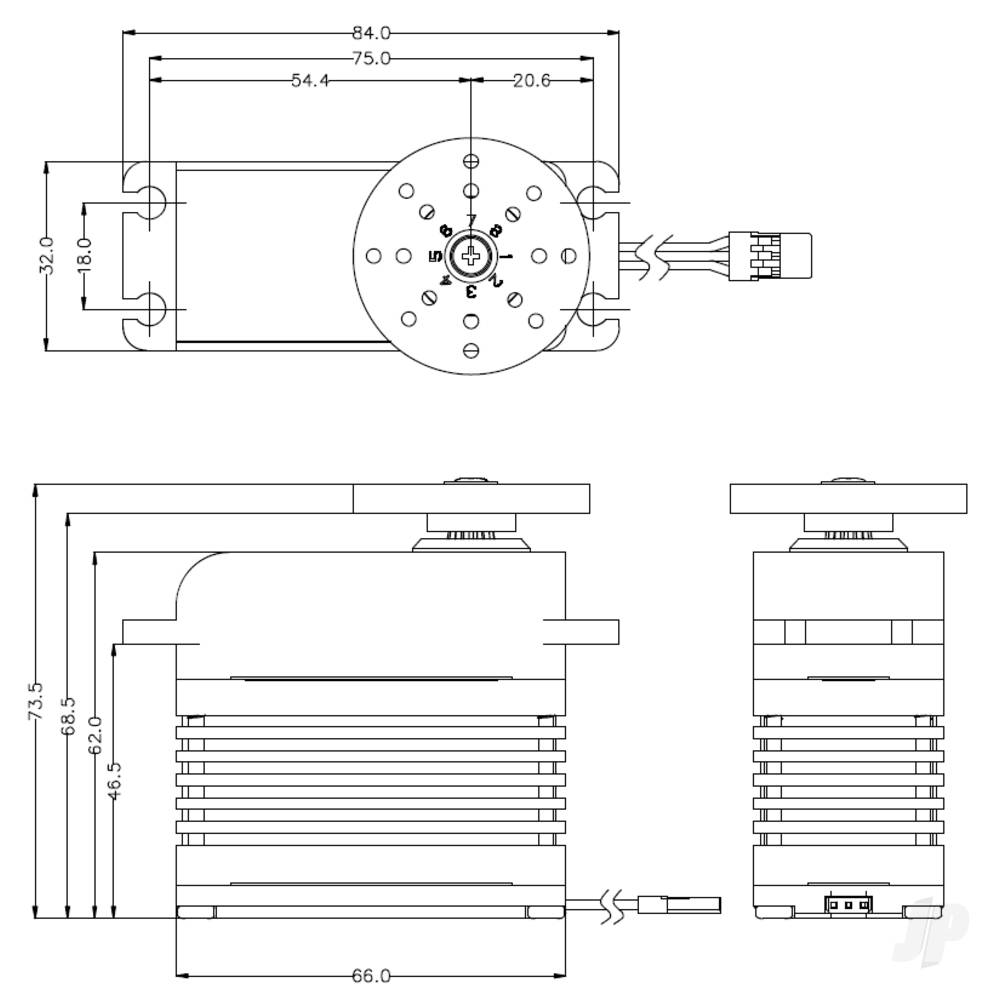

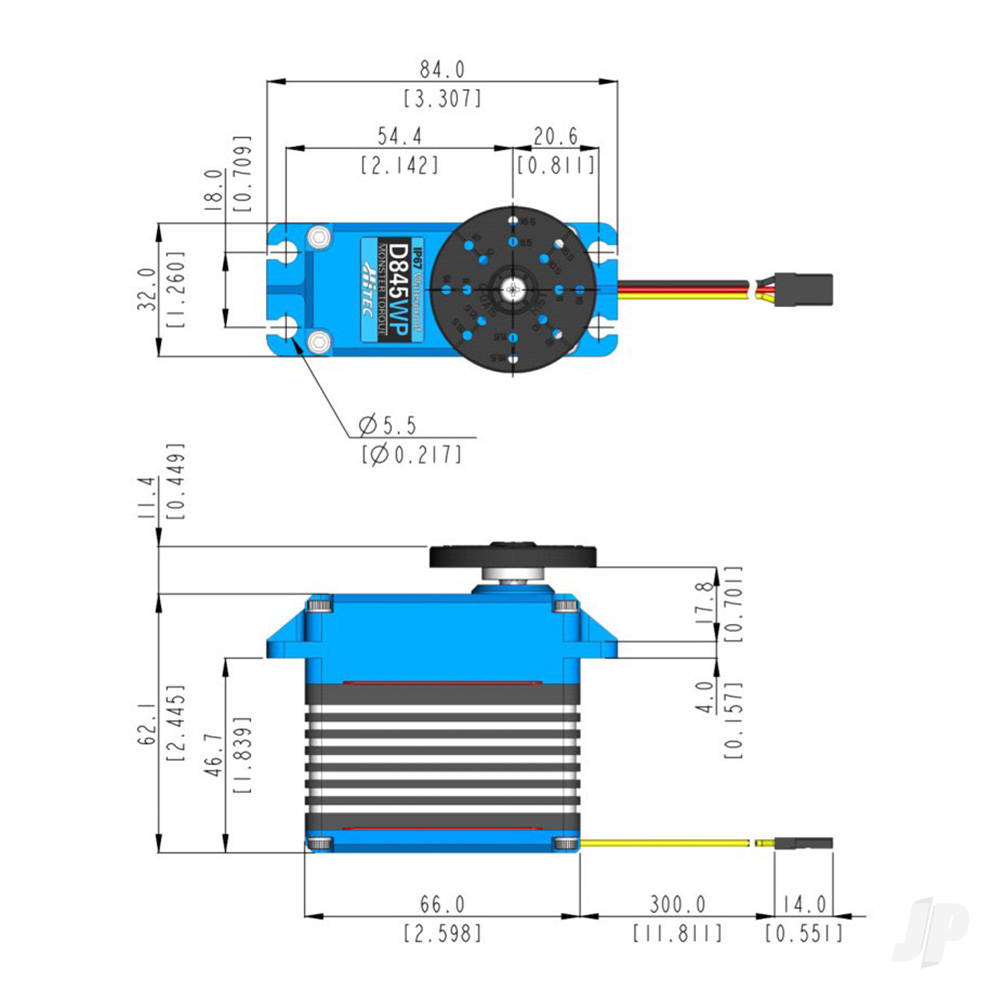

• Size (LxWxH): 84.0 x 32.0 x 73.5.

DETAILS

Part of Hitec’s D-Series servo range, the steel gear D-845WP features industry leading high-resolution, state-of-the-art ultra-response technology, a 32-bit MCU and a 12-bit ADC for unprecedented programmability and flexibility. The result is a significantly smoother movement and a 4.8 – 8.4 volt range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s 15 tooth HD output spline with 3mm hex screw, each D-Series servo offers true value for money with the promise of durability, quality and a monster performance.
