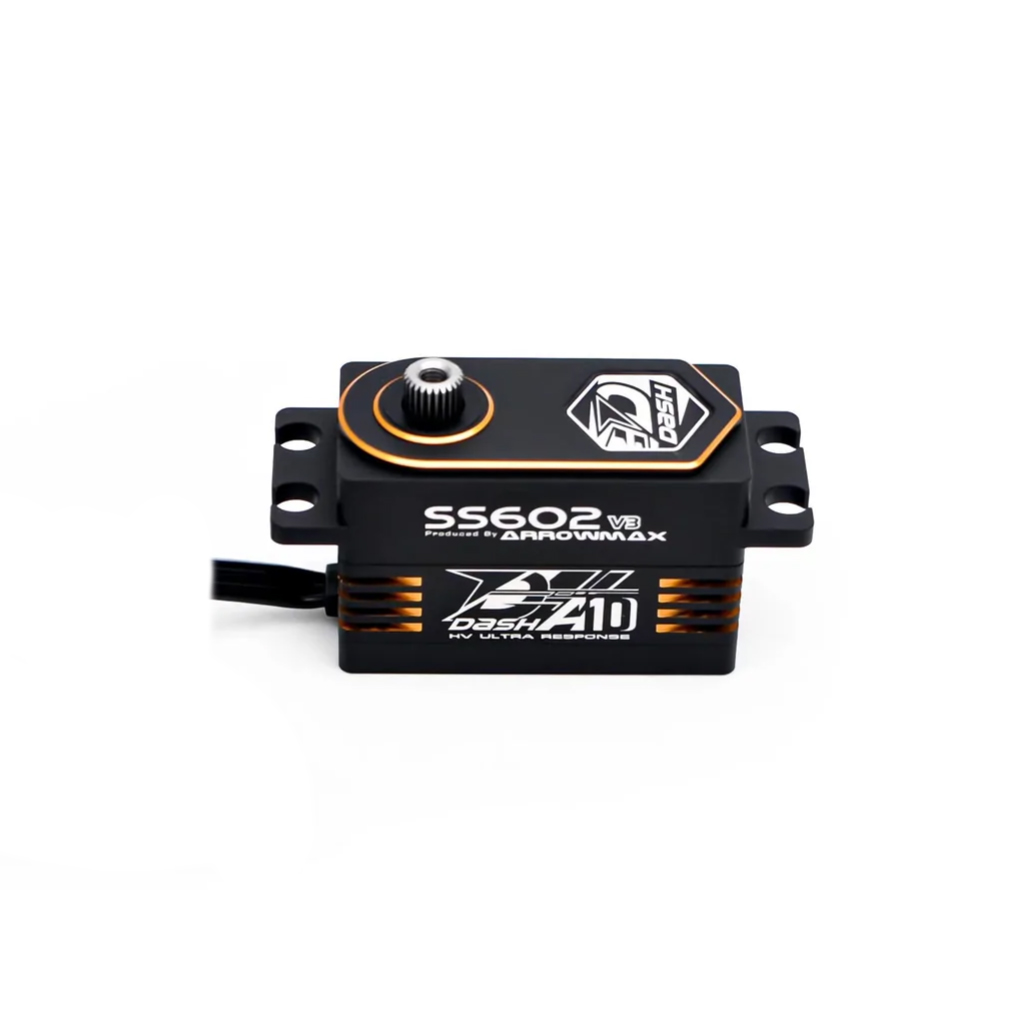

DASH SS602 Super Speed Low Profile Servo A10 V3 HV

From Dash RC is this SS602 V3 HV A10 super speed low profile brushless servo. The PCB control board has been upgraded to 32-bit MCU on the SS602 servo and features an improved 303 steel teeth to prolong the lifespan. The high quality full-alloy metal case has masses of torque and is also very quick and precise in its resolution. The control inputs are now SSR/SUR/SXR mode compatible on the Sanwa, Digital/SR mode compatible on the Futaba, and SR/FSR compatible on the Flysky Noble controllers. It is a must for 1/10 on-road cars.

Features:
– SSR/SUR/SXR mode compatible for Super fast and smooth steering response
– High voltage compatible Servo
– All aluminium housing for excellent durability
– Heat resistant brushless motor

Specifications:
Aluminium Case (Upper, Middle, Bottom)
SSR/SUR/SXR modes of SANWA
Digital/SR mode of FUTABA and SR/FSR mode of NOBLE
Operating Voltage: 6.0~8.4V
Operating Temperature Range: -20 to =60Deg
Operating Speed: (6.0V): 0.067 sec
Operating Speed: (7.4.0V): 0.055 sec
Operating Speed: (8.4.0V): 0.045 sec
Torque(6.0V): 12.4kg-cm
Torque(7.4V): 16.0kg-cm
Torque(8.4V): 17.5kg-cm
Dimensions: 41*20*26
Weight: 52g
Bearing Type: Ball Bearing x 2
Working Frequency: 1520us/333hz
Spline: 25T
