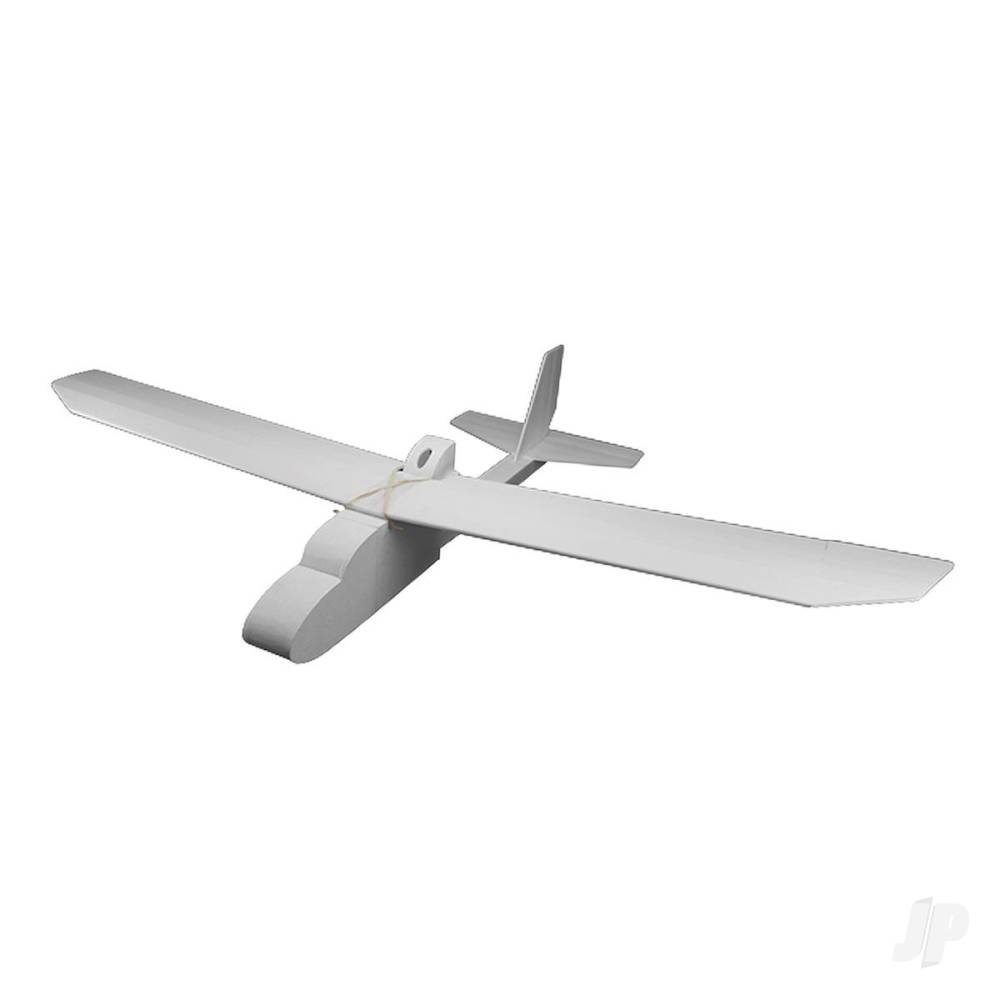

Explorer Speed Build Kit with Maker Foam (1447mm)

FEATURES

• White colour makes it much easier to add a simple trim scheme using stickers or pinstripes
• Translucent, allowing models to be creatively lit from within
• Takes paint or decals extremely well
• More durable than previous Flite Test foam products

NEEDED TO COMPLETE

• 1x Brushless Motor: 1000kV minimum
• 1x Propellers: 8.45 – 9×6
• 1x ESC: 20-30 Amp
• 1x Battery: 3S 11.1V 2200mAh LiPo
• 2-4x Servos: ~9 Gram Micro Servos
• 1x 2.4GHz Radio System (Transmitter and Receiver)
• Misc. Building Supplies

DETAILS

The FT Explorer carries all the simple lines, features, and characteristics that you will find with many of the most common and successful trainers The difference is that the motor, wings, tail section, and nose can all be swapped, reconfigured, or changed out to allow you to discover the performance changes of a new design. Our hope is that the community will design, learn, and share what they have created, so that others can learn and grow. The FT Explorer comes with 2 wings: one for 3 channel flight and a sport wing for faster 4 channel operation. Both the B and C motor packs (c packs need 9×6 propeller) can be used on the FT Explorer to go from a light and slow trainer to a strong performing FPV platform or sport trainer.

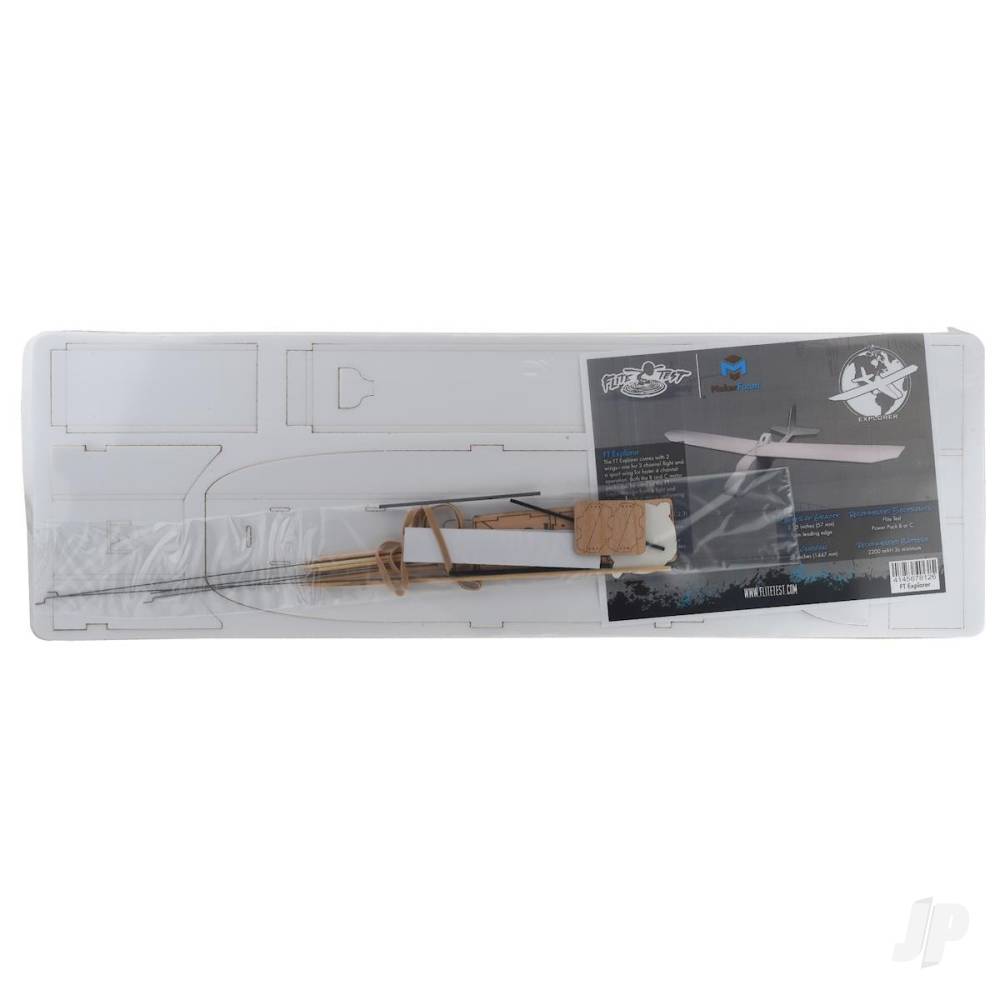

Kit Includes:

• Laser-cut Foam Airframe
• Power Pod (Swappable)
• Firewall
• Push Rods
• Control Horns
• Bar-BQ Skewers
• Velcro
• Throw Gauge
• Rubber Bands
• Specification Sheet

Specifications:

Weight:
1.08 LBs (Fully assembled, without battery)

Wingspan:
57 Inches (1447mm)

Centre of Gravity:
2.25 Inches (57mm) from leading edge of wing (Recommended)

Control Surface Throws:
12 Degrees

Expo Suggestions:
30%
