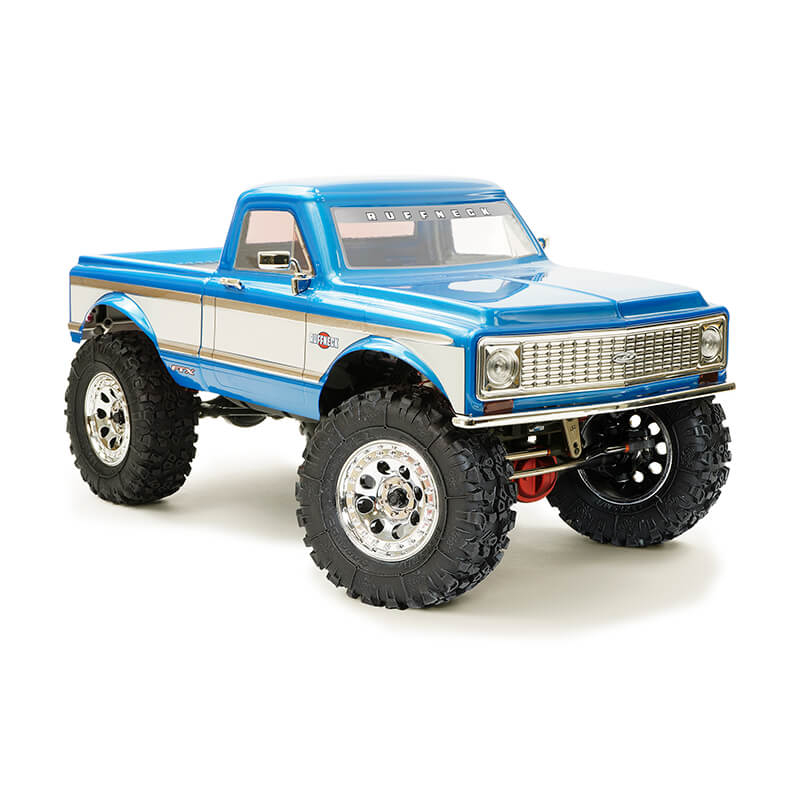

FTX RUFFNECK 1/10 BRUSHLESS 4WD TRAIL RTR – BLUE

The Ruffneck is your new high-performance crawler that features a twin rail carbon-fibre LCG (Low Centre of Gravity) chassis design with lightweight 6/4 counter-weight radio positioning of electronics for a super capable crawler. Featuring the Hobbywing 30A 2200kv All-in-One FOC Power System, this unit provides unparalleled low-speed torque, linearity and smoothness. The integrated design of motor and ESC reduces volume and weight for a simpler and cleaner chassis layout.

CNC aluminium chassis parts come as standard on the Ruffneck, with front and rear axles, motor plate, lower centre chassis plate and steering hubs all machined to the highest quality. Steel front CVA driveshafts and centre driveshafts handle the torque from the reduction drive transmission which features metal gears and steel reduction shaft with a final drive ratio of 37:1 for those steep, slow inclines.

An Etronix 15kg metal geared steering servo is mounted to a brass SOA (Servo Over Axle) mounting plate, matched up with a metal servo horn. Threaded, adjustable aluminium shock absorbers wrap things up before the detailed, semi-scale truck body is mounted via hidden mounts. Super tacky lug tyres provide traction in the worst conditions.

Control and performance all in one with the brushless Ruffneck from FTX!

Features

• 90% Ready-To-Run
• 2.4ghz 6Ch Radio System
• Hobbywing FOC All-In-One Brushless System
• 2200kv Brushless Motor
• 30A Brushless Speed Control
• Etronix 15kg Metal Geared Waterproof Servo
• 2.5mm Carbon Fibre Chassis Rails
• CNC 6061 Aluminium Axle Housings
• CNC 6061 Aluminium Steering Hubs
• CNC Aluminium Lower Chassis Plate
• CNC Aluminium Motor Mount
• Steel CVA Front Driveshafts
• Brass Steering Servo Mount
• 46° Steering Angle
• Reduction Drive With Metal Gears
• Steel Centre Transmission Driveshafts
• LCG Chassis Design With 6/4 Counterweight
• Radio Front to Rear
• Aluminium Wheel Hex
• 25T Metal Servo Horn
• Aluminium Adjustable Shock Absorbers
• Semi-Scale Bodyshell w/Accessories

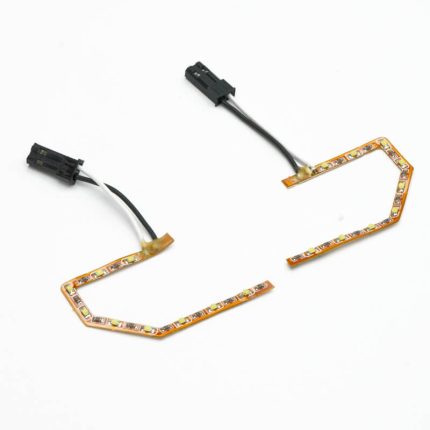

• LED Front Headlights
• Hidden Body Mounting

Specifications

Length: 420mm
Width: 210mm
Height: 200mm
Weight: 1690g
Wheelbase: 275mm
Gear Ratio: 37:1
Tyre Diameter: 110mm
Wheel Diameter: 52mm
Ground Clearance: 68mm (Chassis) 40mm (Axle)

Required To Complete

• 4 x AA batteries
• Battery 2-3S LiPo or 6-9 cell NiMH
• Charger
