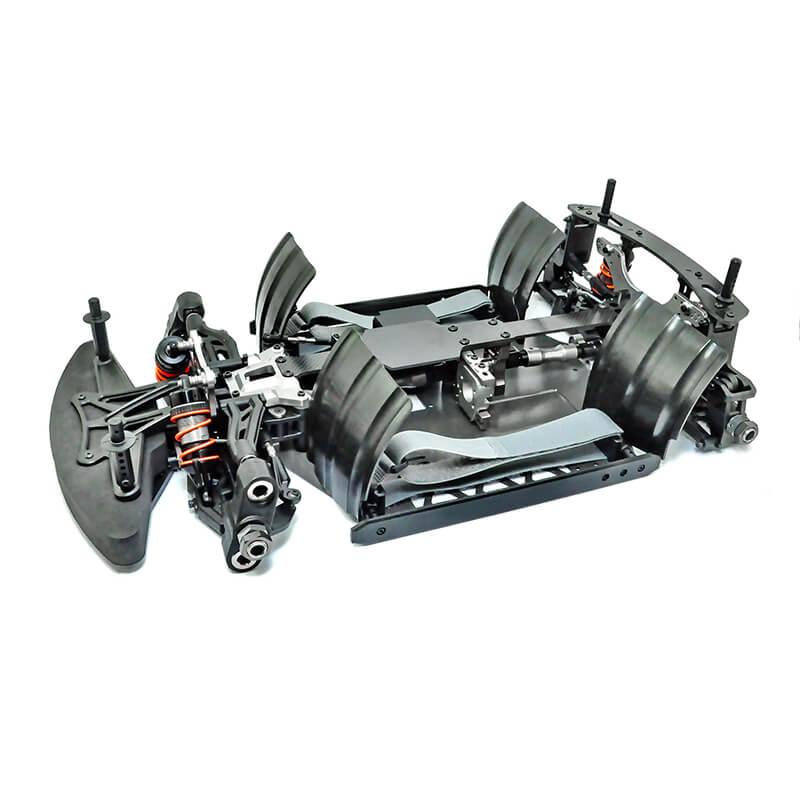

HOBAO EXTREME VTE2 1/8 ON ROAD EP ROLLER 80% PRE-ASSEMBLED

FEATURES

• Lightweight design, the car weight is 2360g.

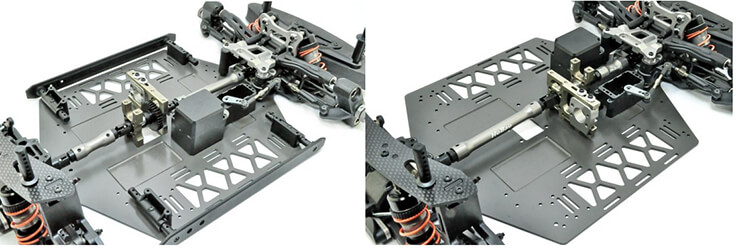

• Versatile Motor Mounting Options for Optimal Performance.
  Our innovative chassis design allows for flexible motor mounting, ensuring you achieve the perfect balance and performance for your needs.
  [Front Mounting] Ideal for motors up to 119 mm in length.
  [Rear Mounting] Accommodates motors up to 140 mm in length.

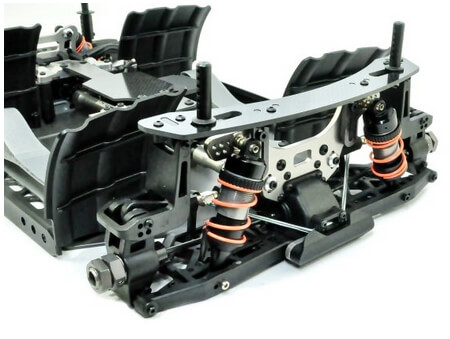

• Lightweight Rear Floating Body Mount Set.
  – Fitting for VTE and VTE2 series.

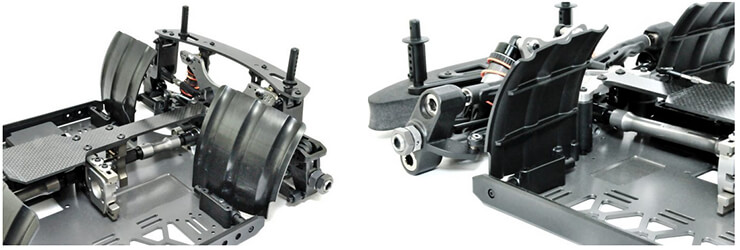

• Front and Rear Splash Guards.

• Adjustable Side Body Supports.

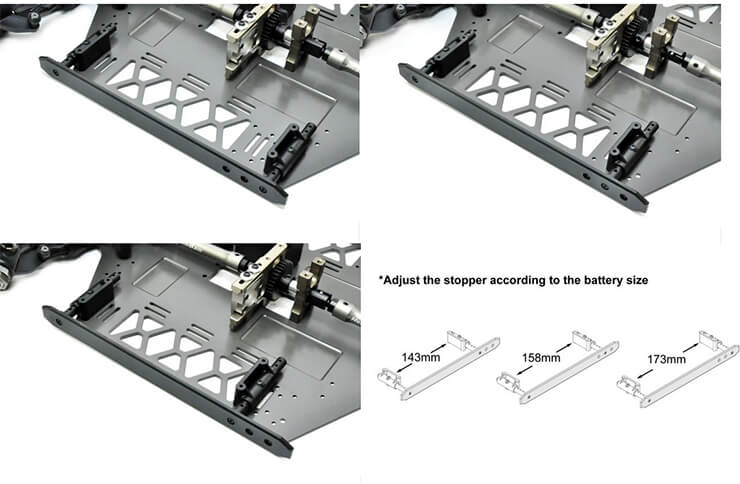

• 3-Position Adjustable Battery Stopper on Chassis for Different Sizes of Batteries.

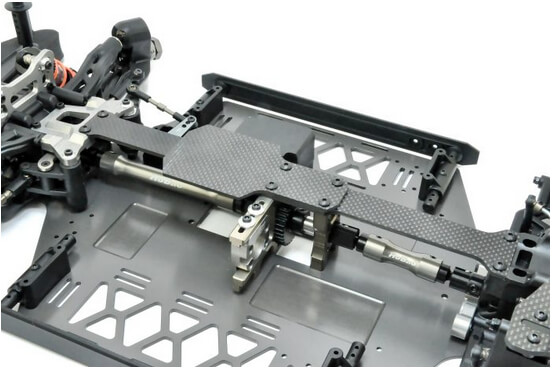

• Carbon Fiber ESC Top Tray (The tray can be placed either on front or rear as per your preference).

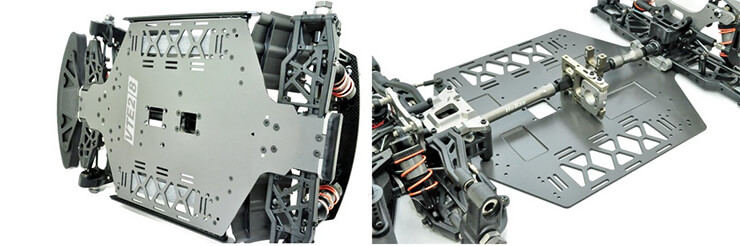

• New Chassis: Lightweight Hard Anodized Aluminium, Weight 390g.

• Rear Wheel Hub (Length +2mm) with Anti-Loose Wheel Nut.
• Rear Suspension Mount +4mm.

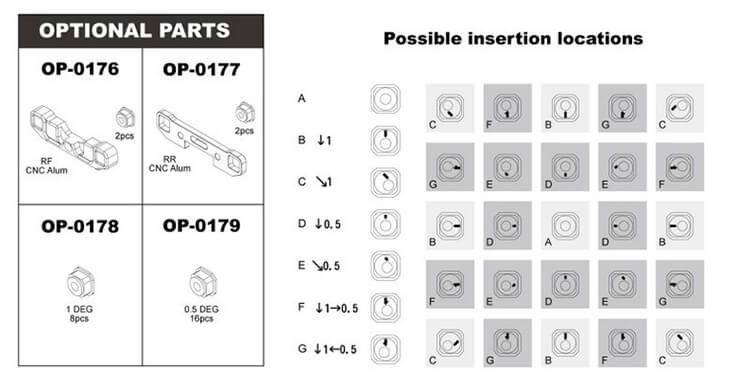

  – Optional rear Suspension Mount (RF) HOP-0176 and (RR) HOP-0177 with POM pills HOP-0178 and HOP-0179.

• Drive: 4WD Drivetrain:
  – Hardened Steel Front Universal Joint Driveshaft and Rear Dogbone.
  – Optional 5.3mm Universal Driveshaft HOP-0159 & 5.0mm Rear Dogbone HOP-0161.
  – New Heavy duty lightweight “Steel + Aluminum” Front & Rear Center Driveshaft.
• Front & Rear Differential: Bevel Gear Type, New Anti-Leakage Differential Housing, Hardened Steel Lightweight Cup.
  – Front differential filled with 500K silicone oil.
  – Rear differential filled with 50K silicone oil.
  – Optional 40T Ring Gear HOP-0146 and 15T Pinion Gear HOP-0147.
  – Optional Bevel Gear HOP-0139.
  – Optional Differential Housing : HOP-0148.
• Center Spool: 34T Spur Gear (MOD 1), 8mm Shaft, Hardened Steel Cup.
  – Fit for 8mm bore pinion gear.
  – Max. 48T Spur Gear can used.
• Aluminium Spool Mount HOP-0153.

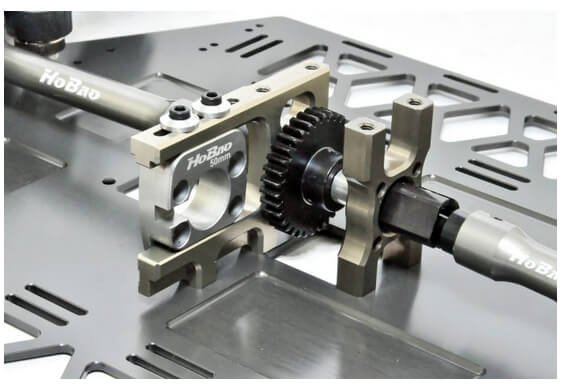

• Motor Mount: CNC Aluminum, Cam Lock Style.
  – Standard Part HOP-0149 for max. O.D 50mm motor.
  – Optional Part HOP-0150 for max. O.D 57mm motor.


• Shocks: Oil-filled 17mm Big Bore Shock with #600 silicone oil, 4mm Diameter Shaft.
  – Spring: 0.45 kgf/cm, L= 35mm, Orange.
• Shock Tower: 4mm thick CNC Aluminium.
• Ball Bearing: Full Set included.
• Suspension: Front and Rear Sway Bars, Front PBS, Reinforced Composite Upper Arm and Lower Arm.
• Caster: Adjustable.
• Camber: Adjustable.

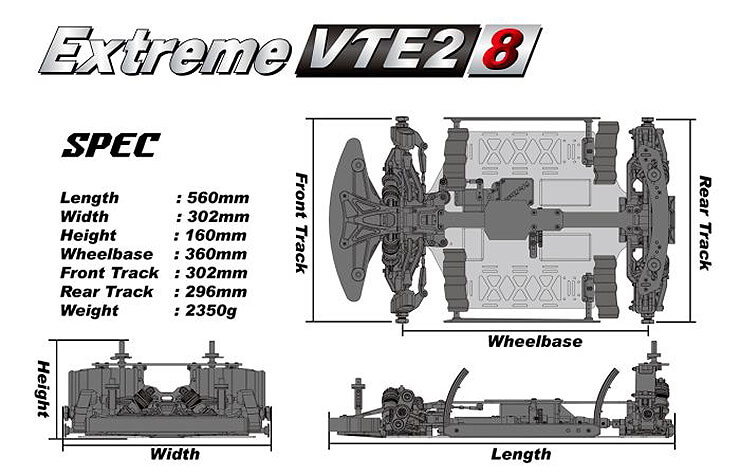

Specifications

Required To Complete

• 2-Channel Radio/ Transmitter Set.
• ESC & Motor.
• Pinion Gear for Motor.
• Tyres,Wheels, and Tyre Glue.
• Body and RC Body Paint.
• High-Torque Steering Servo.
• LiPo Batteries.
• Battery Charger.
• Batteries for Transmitter.
