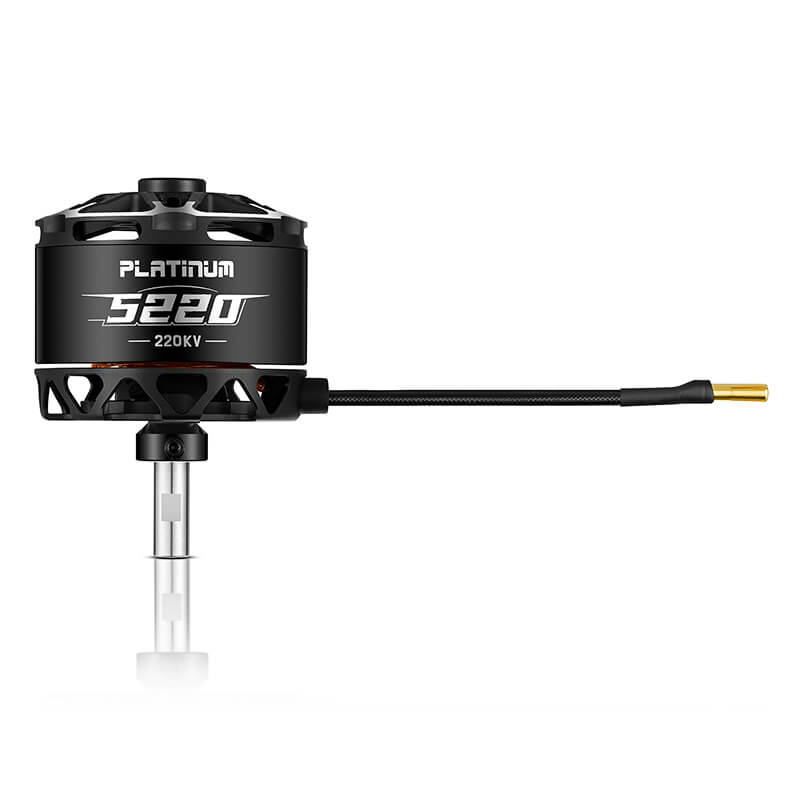

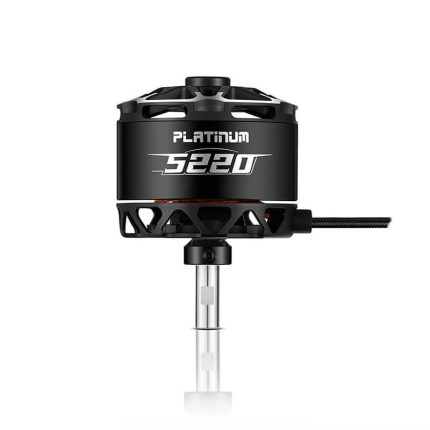

HOBBYWING PLATINUM 5220SL 220KV FIXED WING MOTOR
£113.39
RRP: £119.99
You save: £6.60
We keep most products in stock, however we are currently working on a live stock system. Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.
Found this product cheaper elsewhere? Enquire now about a price match!
Out of stock
Specifications
Motor Size: Φ60.2 *83.5mm
Stator Size: Φ51.7*t20
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?
Props Mounting Dimensions: Φ22mm-3*M4
Motor Mounting Dimensions: Φ30mm-4*M4;Φ44mm-4*M4
Slot & Pole: 24N28P
Dynamic Balance: ≤10mg
Bearing: 1560ZZ,698ZZ
Motor Axle Diameter: Φ8mm
Isolation Test: 500V AC high voltage resistance test
KV: 220
Battery (LiPo): LiPo-10~12S
No-load Current: 3.5A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 86A/44s
Max Power: 3828W/44s
Max Thrust: 10.05kg
Resistance: 27.5mΩ
Wire Size: Enamelled Wire Output
Wire Length:100mm
Weight (With Wire): 430g
Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
Recommended Propeller: 10S:20x8E,20x10E 12S:17x8E,18x8E,18x10E
