HOBBYWING XERUN AXE PLUS R3 & AXE 540L 2300KV R2 MOTOR

Experience the realm of RC with the Hobbywing Combo Xerun AXE Plus R3 & AXE 540L 2300KV R2 Motor. This combination offers a perfect balance of control and power, ideal for RC enthusiasts seeking top-tier performance in their vehicles. The Xerun AXE Plus R3 ESC ensures smooth operation and precise control, while the AXE 540L 2300KV R2 Motor delivers impressive power and acceleration. Together, they elevate your RC experience to new heights, allowing you to tackle any challenge with confidence.

Features Hobbywing XeRun AXE540 R2 Motor

• Minimum cogging torque
• Soft start behaviour
• Optimized for sensitive performance development
• Water and dust proof for almost any situation
• Includes a newly designed waterproof sensor port
• The built-in high-precision magnetic encoder sends more information to the ESC than before

Technical specifications Hobbywing XeRun AXE540 R2 Motor

Type: Sensored Brushless FOC
Poland: 4
KV Rating: 2300KV
LiPo Cells: 2-3s
No-load Current: 2.5A
Outer Diameter: 36.0mm
Length: 49.8mm
Shaft Diameter: 3.175mm
Shaft Length: 16mm
Waterproof: yes
Weight: 185g
Application: 1/10 Rock Crawler

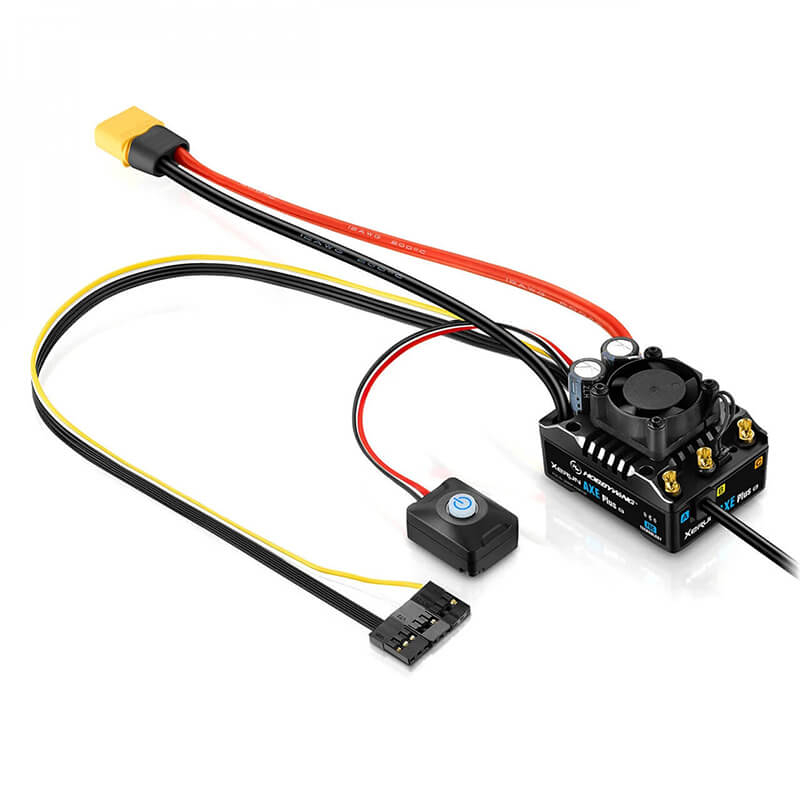

Features XeRun AXE Plus R3

• Stronger performance thanks to FOC (Field-Oriented-Control) technology.
• Drag brake adjustable up to 200% for unparalleled holding power on slopes.
• Super BEC with max. 6A and three voltage levels for using different servos.
• Waterproof and dustproof to IP67 standard.
• Smart torque delivery and speed control for easy control and constant speed under all loads.
• Built-in Bluetooth module.
• Multiple controller protection functions including reverse polarity protection.
• Only compatible with Xerun AX “R2” and “R3” motor series.

Technical Specifications XeRun AXE Plus R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE “R2” and “R3” motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and “HW LINK”-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
