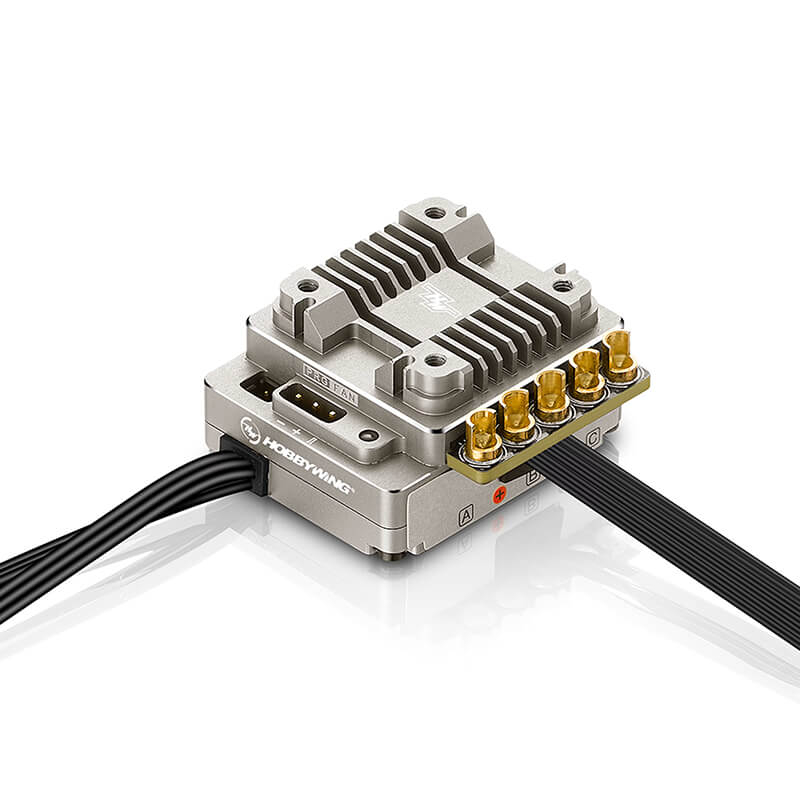

HOBBYWING XERUN XR10 PRO WP 160a SPEED CONTROL

Reliable hardware combined with intelligent software (containing 9 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable smart stop&start cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.

Features

• High Power Output
• Special Design for Top Racing
• Programming / Upgrading / Data reading wirelessly
• Adjustable Throttle & Brake PWM Frequencies
• Efficient Heat Dissipating System
• High current/voltage BEC
• Separate Programming/Fan Port
• IP67 All Weather Operation
• Smart Stop & Start Fan
• Innovative data-logging Function

Specifications

• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: SD/SL
• Waterproof: Yes
• Cont./Peak Current: 160A/1200A
• Input: 2S LiPo Only
• BEC Output: Switch Mode: 5V-7.4V Adustable,5A
• Input Wires: Black-13AWG-200mm*2
• Output Wires: Black-13AWG-200mm*3
• Input Connectors: No
• Output Connectors: No
• Fan Size: 25.0×25.0x10.0mm
• Fan Voltage Range: 5-7.4V
• WiFi Module: Supported
• LCD Program Box: Supported
• Size: 37.7×37.2×19.6mm (w/o Fan)
• Weight: 95.6g (w/ Wires)
