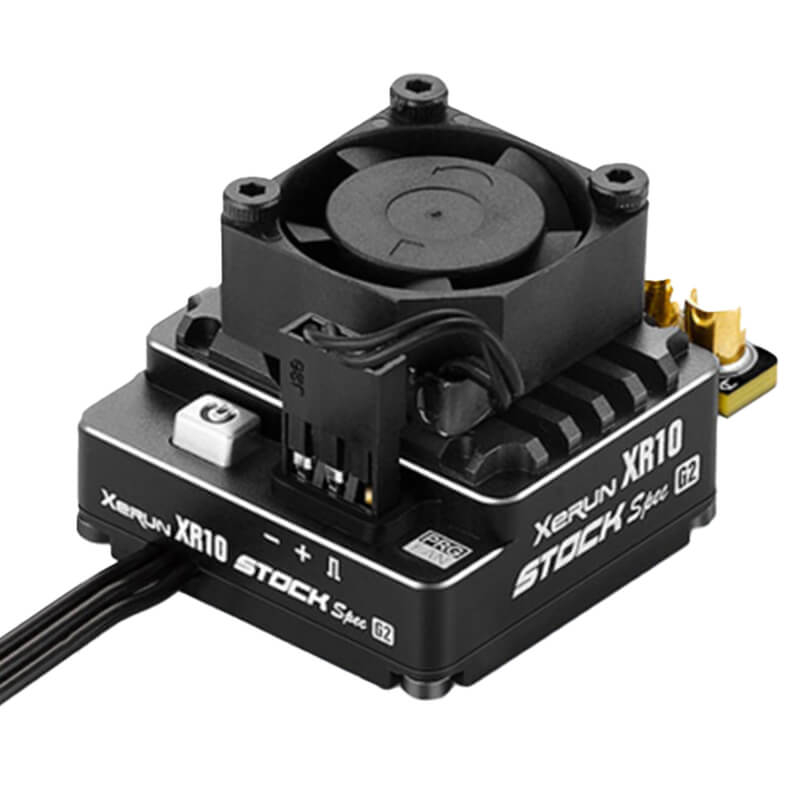

HOBBYWING XERUN XR10 STOCK SPEC G2 100A SPEED CONTROL

The XR10 Stock Spec G2 ESC is smaller and lighter than the standard XR10 Pro range and is the mini version of XR10 Pro 160A. The super small size (34.8 x 30 x 13.8mm) makes the installation convenient and the light weight provides more weight margin when adjusting the balance of the chassis.

Reliable hardware combined with great software (contains 3 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.

This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and others in real time and allows users to check the data via the LCD G2/Pro program box or OTA Programmer after each use (items sold separately).

Features

• Increased Maximum Current Rating
• Special Design for STOCK Class Racing
• Programming/Upgrading/Data Reading Wirelessly
• Small Size & Light Weight
• Upgraded Super Internal BEC
• Adjustable Throttle & Brake PWM Frequencies
• Data-logging Capability

Specifications

Scale: 1/10
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: No
Motor Limit: >10.5
Cont./Peak Current: 100A/500A
Input Voltage: 2S Lipo
BEC Output: Switch Mode: 6.0v/7.4V @5A
Input Wires: Black-13AWG-200mm*2
Output Wires: Black-13AWG-200mm*3
Input Connectors: No
Output Connectors: No
Fan Size: 20x20x8mm
Voltage Range: 5-7.4V
LCD Program Box: G2/PRO Supported
OTA Module: WiFi Supported
Size: 34.8 x 30 x 13.8mm
Weight: 63g (inc Wires)
