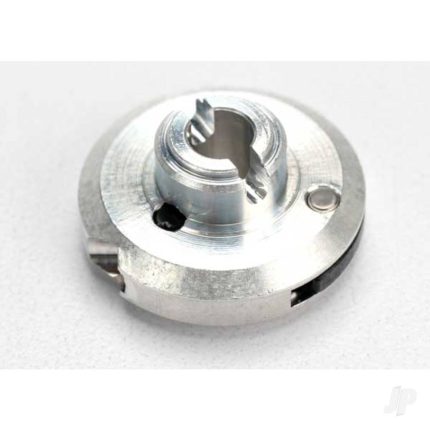

Primary clutch assembly (two-speed shift Hub) £15.53
Back to products
image_JP-TRX6876

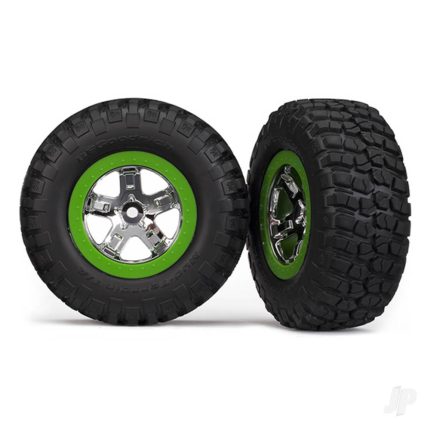

Wheels & Tyres, Assembled Glued BFGoodrich Mud-Terrain T / A KM2 Tyre (2 pcs) £27.08

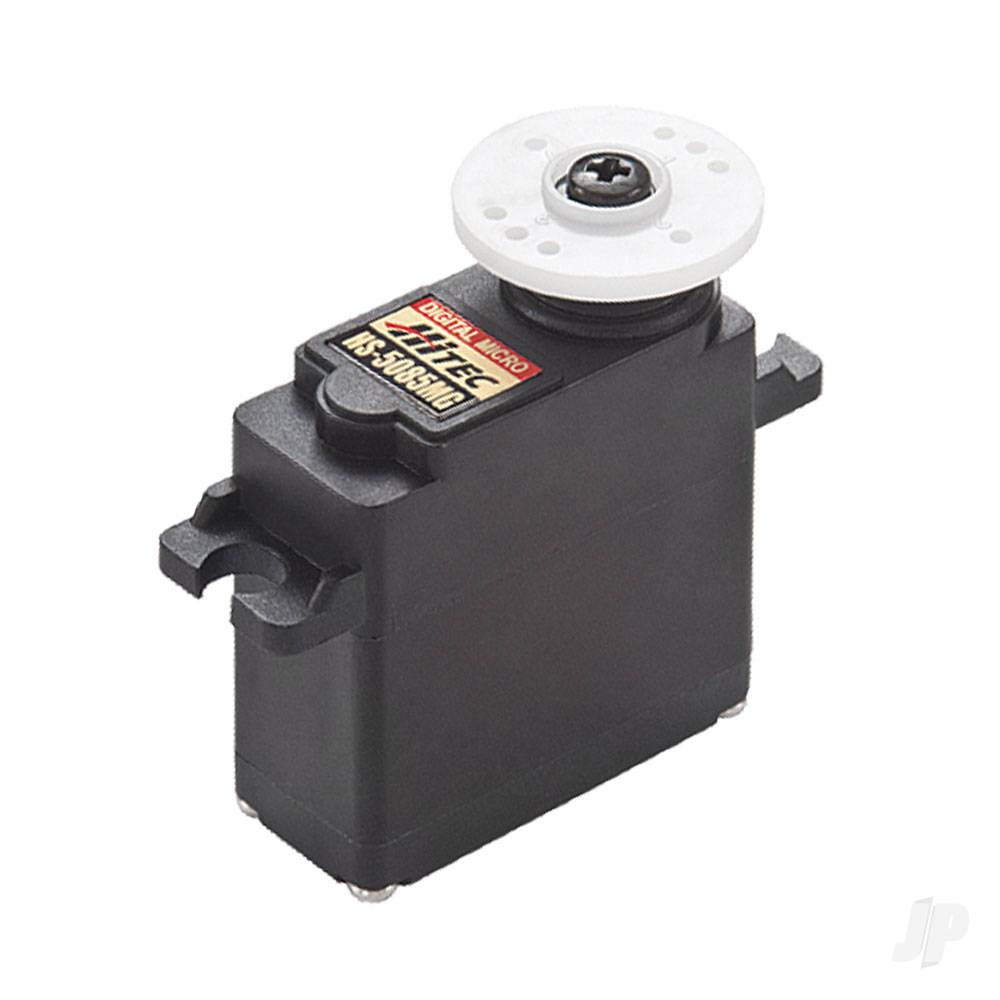

HS-5085MG Micro Digital Cored Servo 21.9g 4.3kg/0.13s 4.8V – 6.0V

Hitec

£36.90

RRP: £39.25
You save: £2.35

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Out of stock

Add to wishlist
Add to compare
SKU: JP-2216550 Categories: , , , ,

FEATURES

  • High performance digital amplifier.
  • Lighweight metal gears with ball bearing.

DETAILS

digital version of one of Hitec’s most popular mini servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, helis, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

Advanced Servo Specifications

Control System: +Pulse Width Control 1500usec Neutral
Operating Voltage Range: 4.8V to 6.0V
Operating Temperature Range: -20° to +60° (-4°F to +140°F)
Idle Current: 3mA
No Load Running Current (4.8V/6.0V): 230mA/60° / 290mA/60°
Stall Current (4.8V/6.0V): 1,700mA / 2,150mA
Dead Band Width: 2usec
Potentiometer Type: 2 Slider/Direct Drive
Connector Wire Length: 250mm (9.84in)
Connector Wire Gauge: 28AWG

Applications:

  • Smaller Airplanes: Provides precise control without adding significant weight.
  • Helicopters: Suitable for models requiring reliable and responsive servos.
  • Boats: Enhances maneuverability in compact marine models.
  • Cars and Trucks: Offers accurate steering and throttle control in lightweight vehicles.
