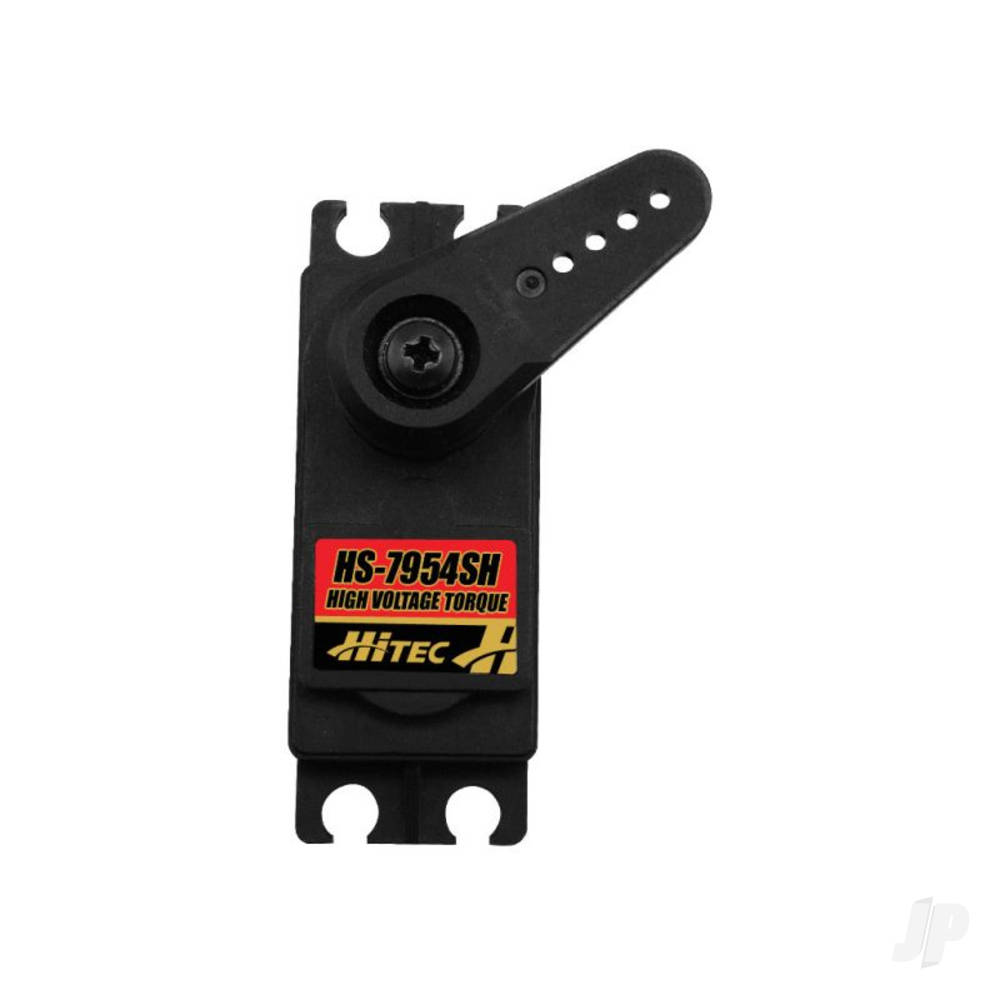

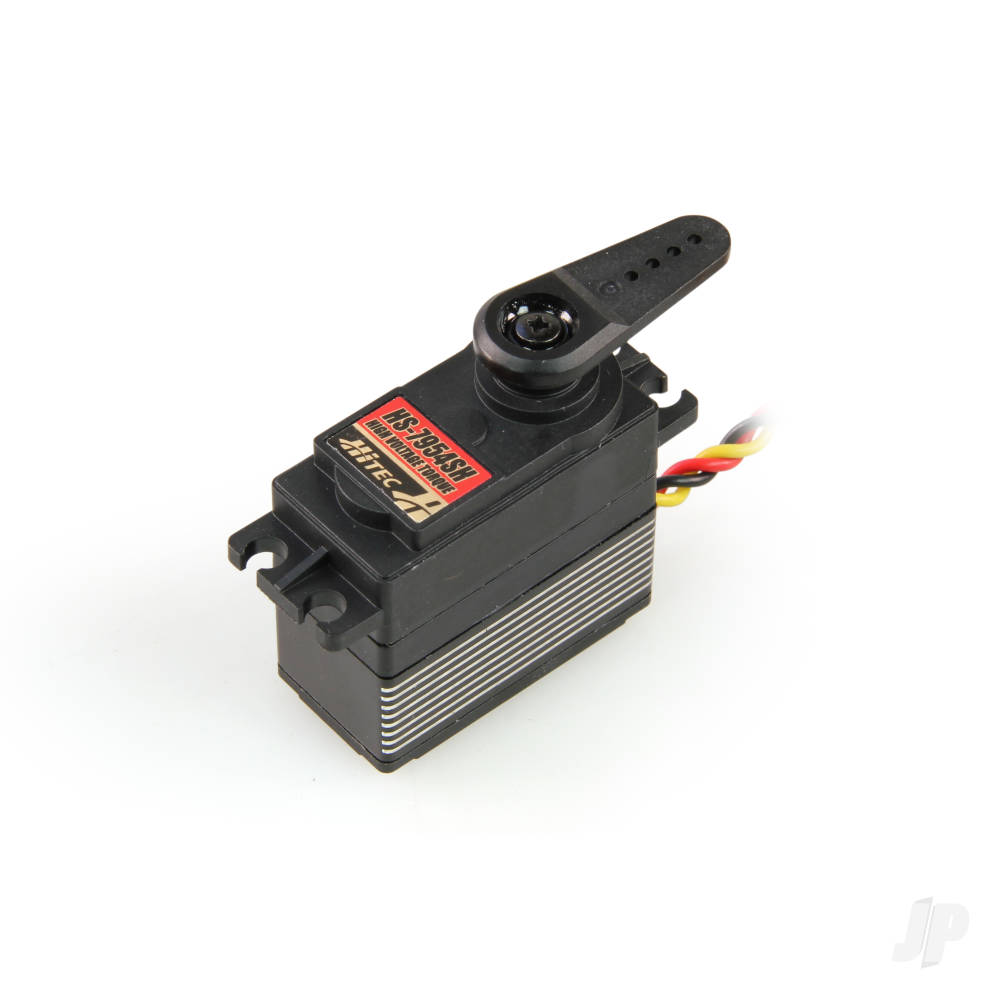

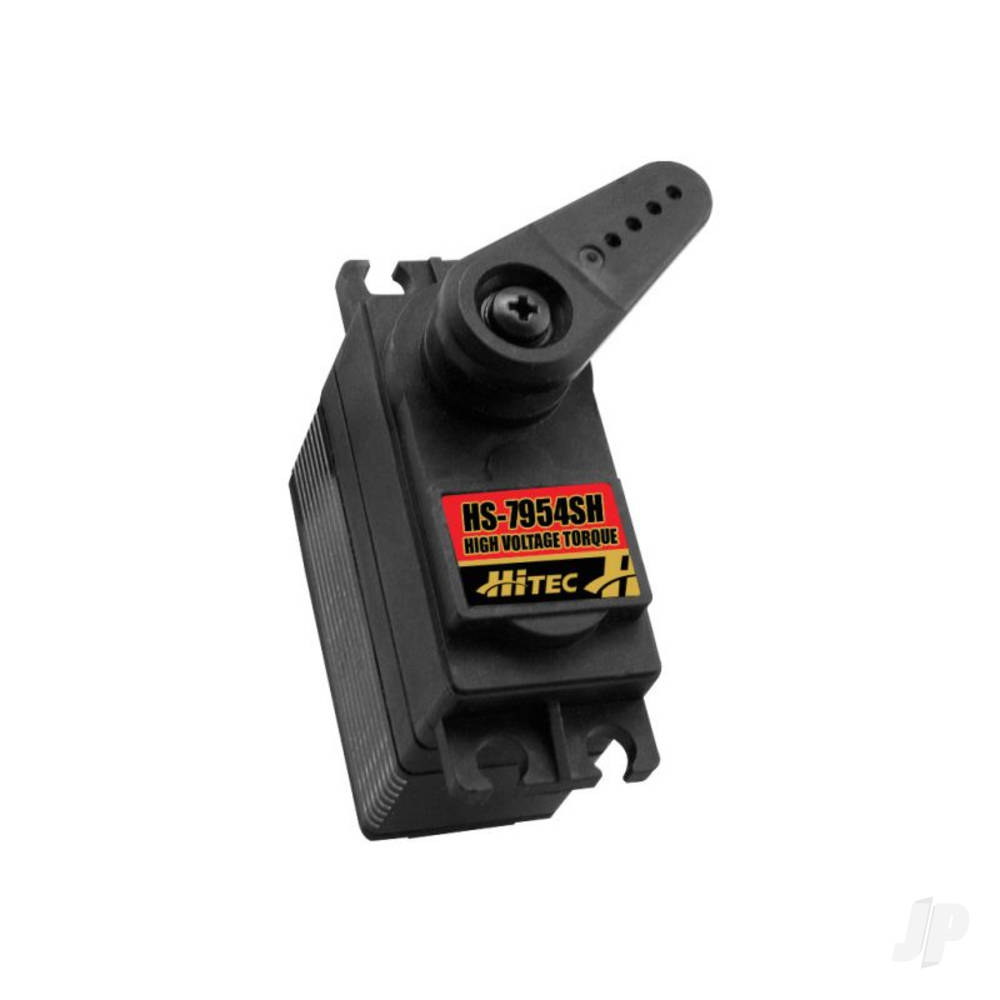

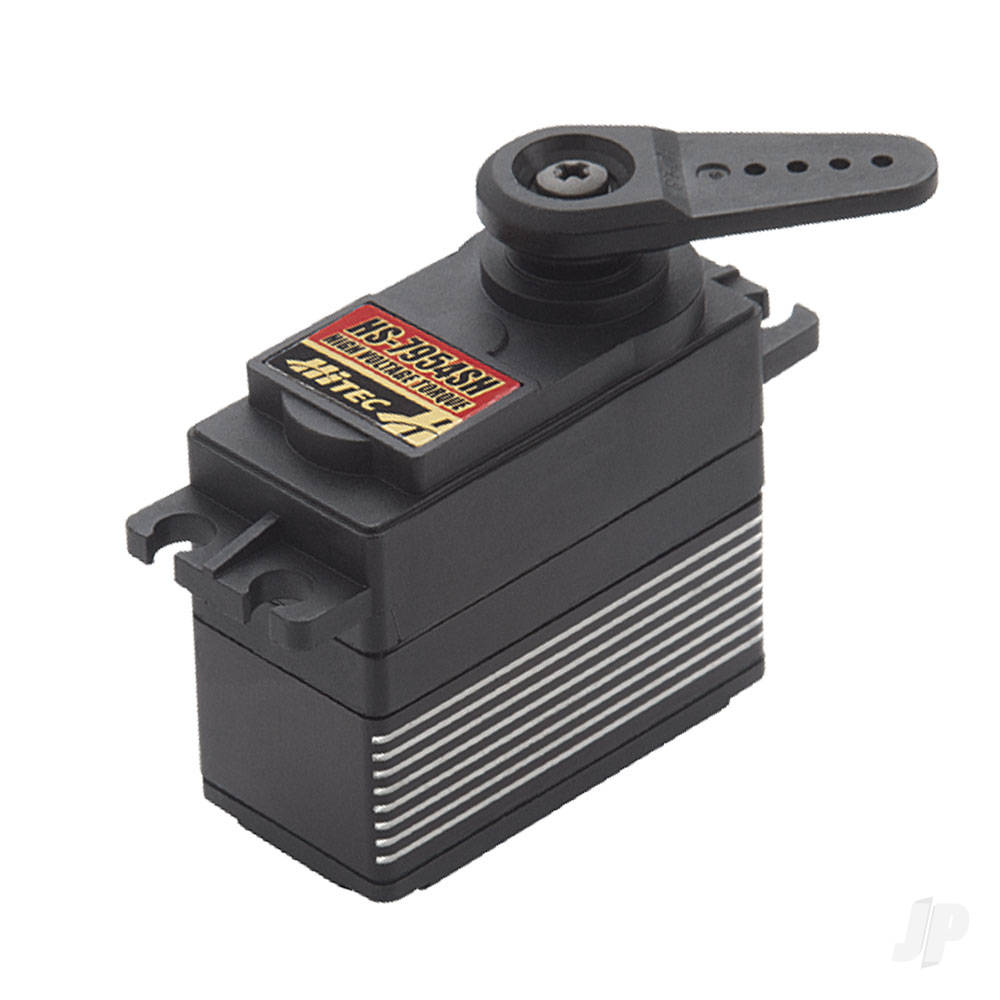

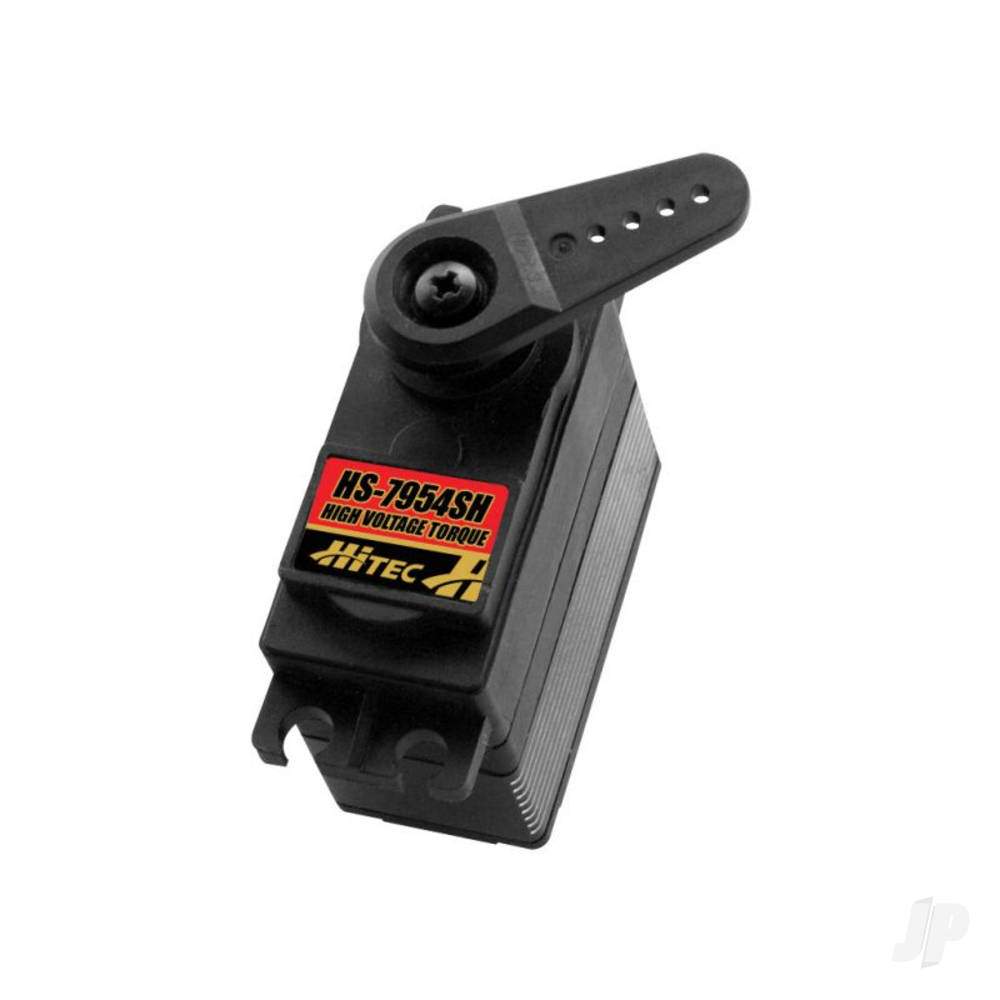

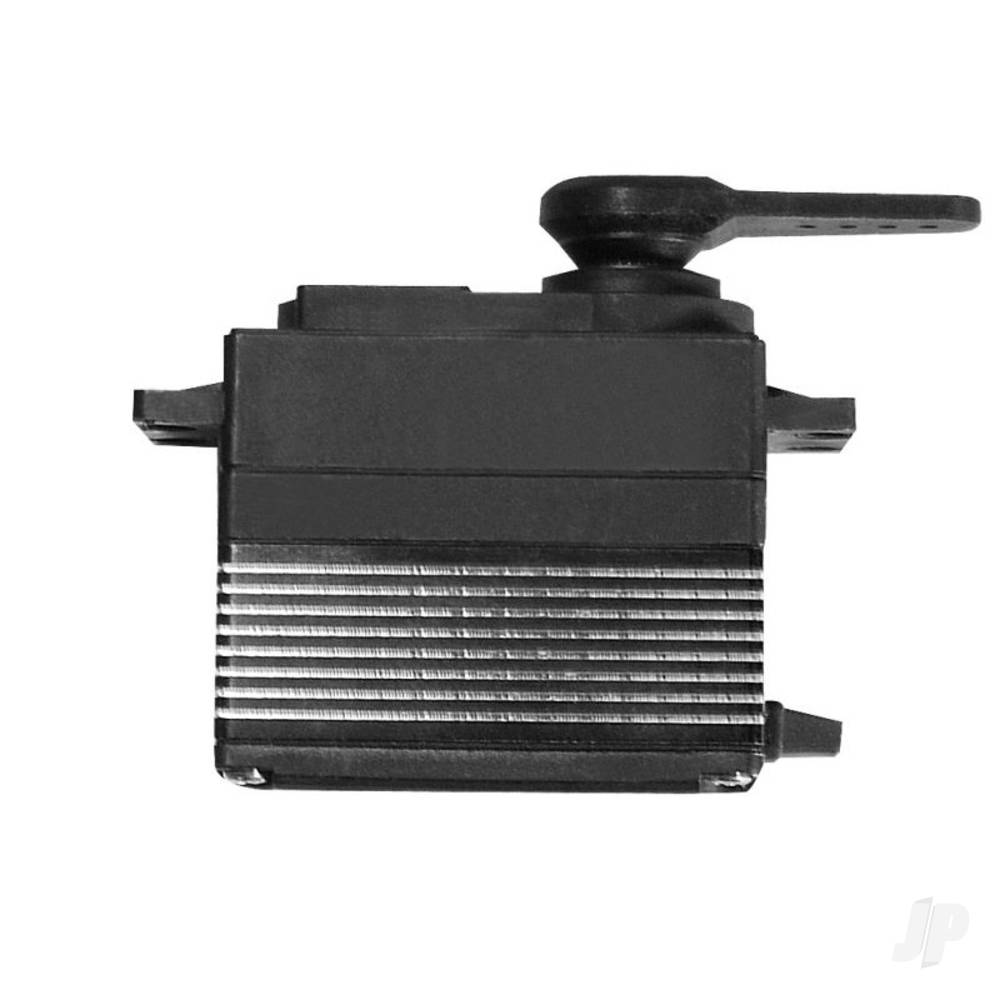

Hitec HS-7954SH Standard Digital Coreless Servo 68g 29kg/0.12s 6.0V – 7.4V

Description

FEATURES

• G2 Digital Circuit.
• HV Coreless Motor.
• Dual Ball Bearing Supported Output Shaft.
• Steel Gear Train (MK first gear).
• Programmable.
• Splashproof.

DETAILS

The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor.

With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilising a heavy duty case that incorporates an aluminium heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can’t be beat.

Programmable Features Include:

• – Dead Band Width
• – Direction of Rotation
• – Speed of Rotation (slower)
• – End Points
• – Neutral Points
• – Fail Safe On/Off
• – Fail Safe Point
• – Resolution* (default is high resolution)
• – Overload Protection* (default is off)

*These features are only programmable with the HFP-20 field programmer.
