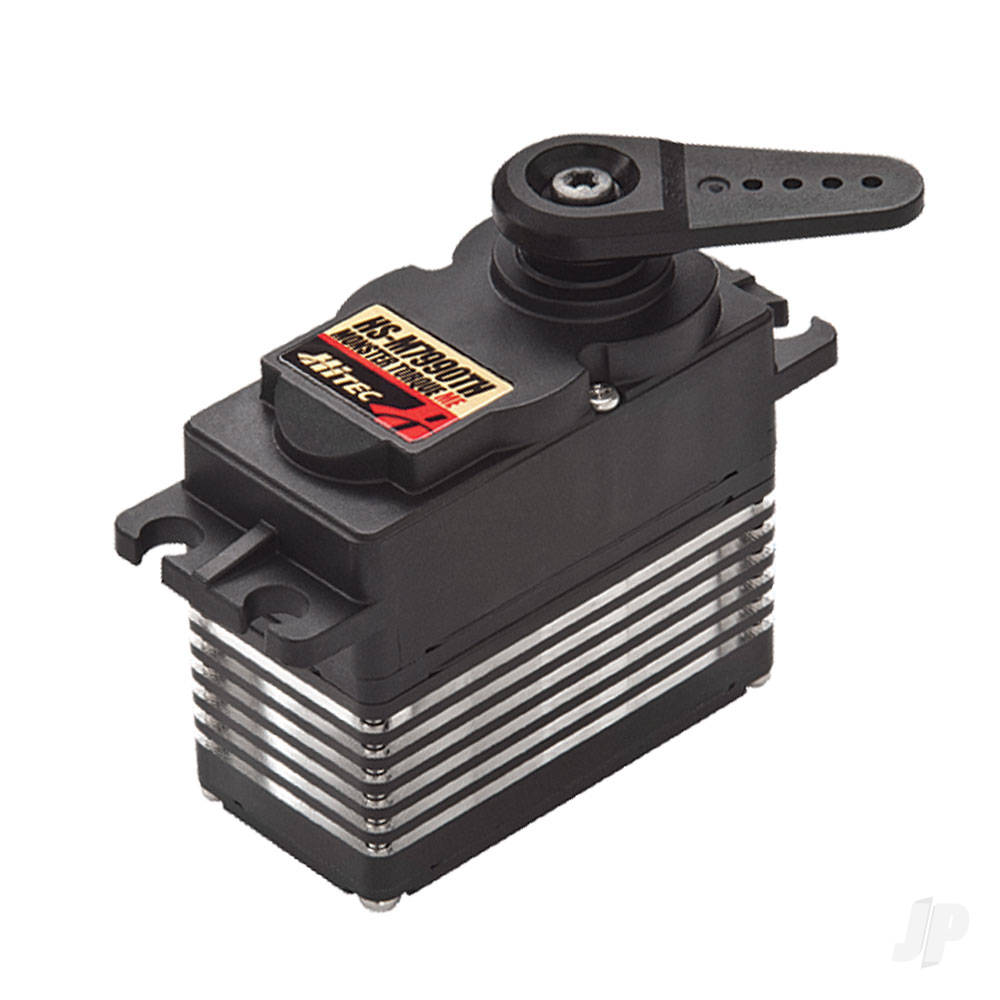

HS-M7990TH Standard Digital Coreless Servo 79g 44kg/0.17s 6.0V – 7.4V

Hitec

£191.75

RRP: £203.99
You save: £12.24

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

15 in stock

Add to wishlist
Add to compare
SKU: JP-2220560 Categories: , , , ,

FEATURES

  • High Resolution Magnetic Digital Ecoder
  • G2.5 12 bit Digital Programmable Circuit
  • Titanium Gear Train (MK first gear)
  • Ultra Performance Coreless Motor
  • Integrated Heatsink Case
  • (8) O-Rings for Water/Dust/Fuel protection
  • Dual Ball Bearing Supported Output Shaft
  • 10% larger than a HS-7955TG

DETAILS

Hitec’s most technologically advanced servo, the ‘Monster Torque’ HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution ‘G2.5’ 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimised coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.

Specification:

Torque (kg.cm): 36.0 at 6V / 44.0 at 7.4V
Speed (sec/60deg): 0.21 at 6V / 0.17 at 7.4V
Weight (g): 79.0
Dimensions (mm): 43.8 x 22.4 x 40

Programmable Features Include:

  • Dead Band Width
  • Direction of Rotation
  • Speed of Rotation (slower)
  • End Points
  • Neutral Points
  • Fail Safe On/Off
  • Fail Safe Point
  • Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
