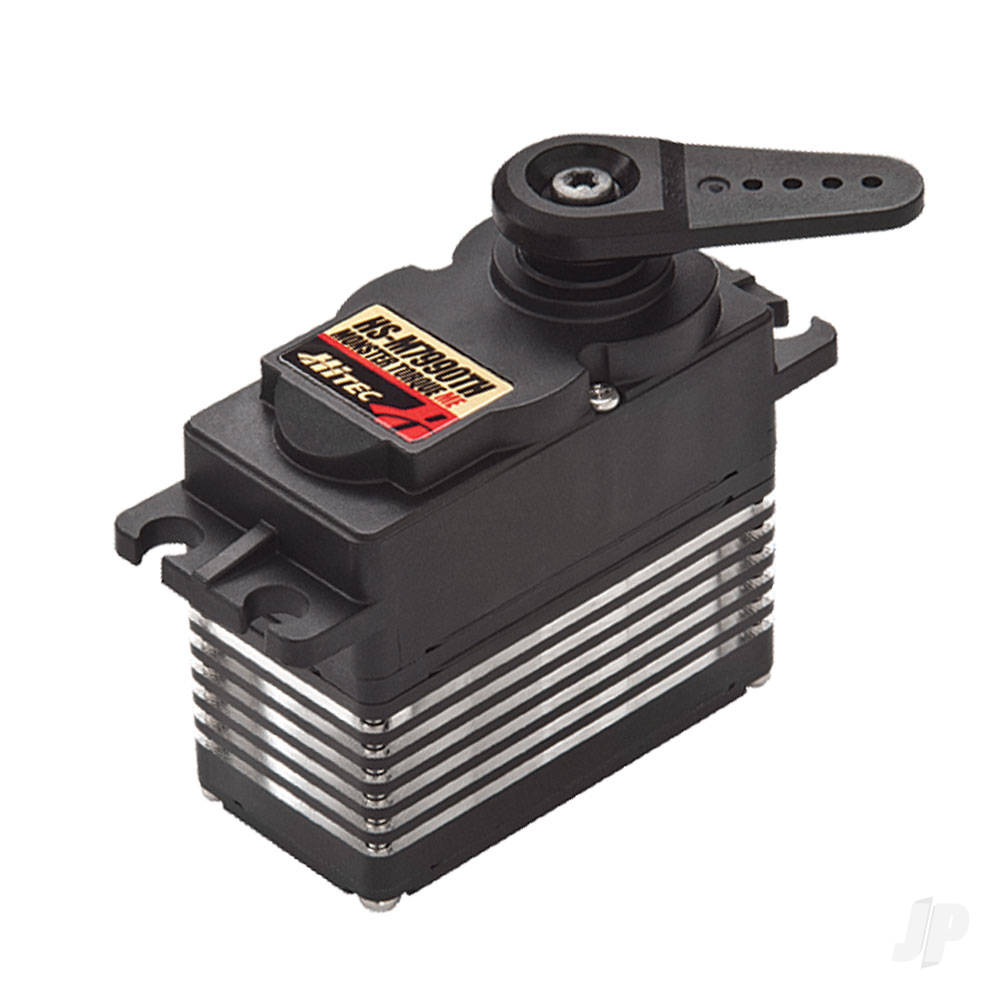

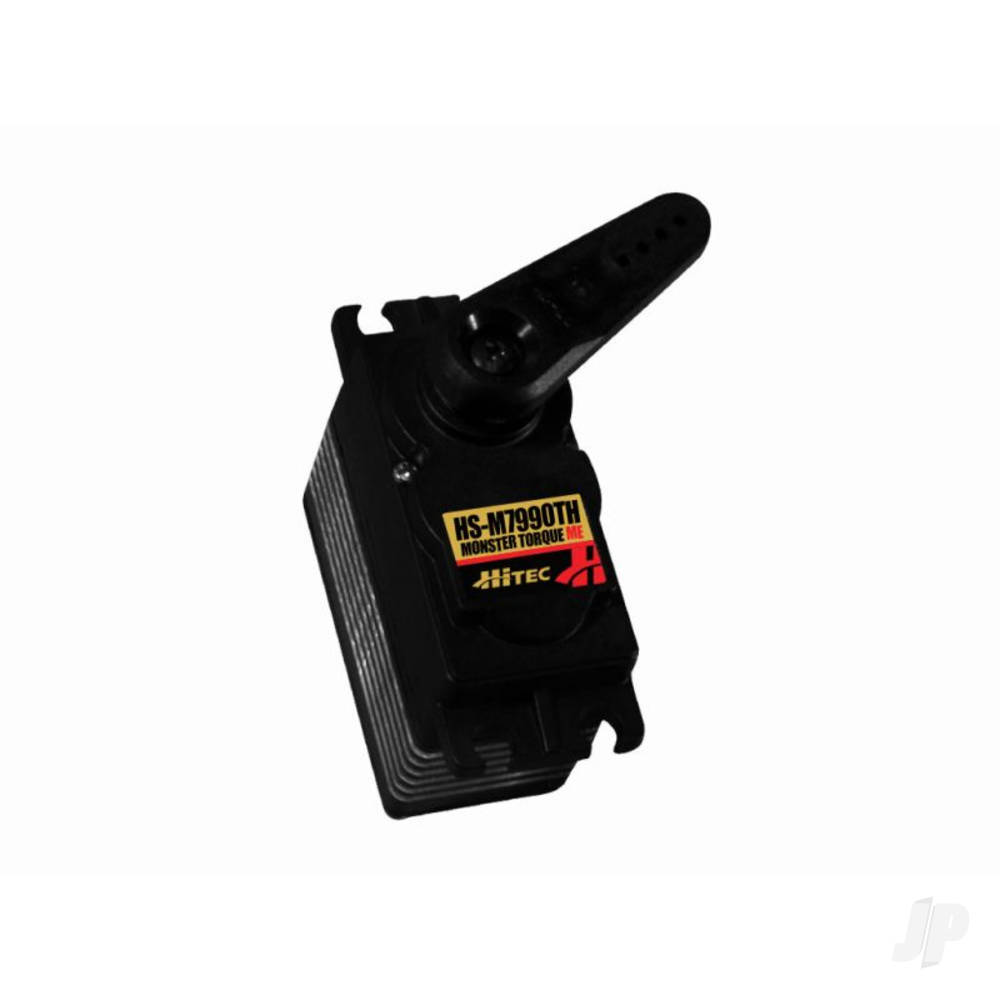

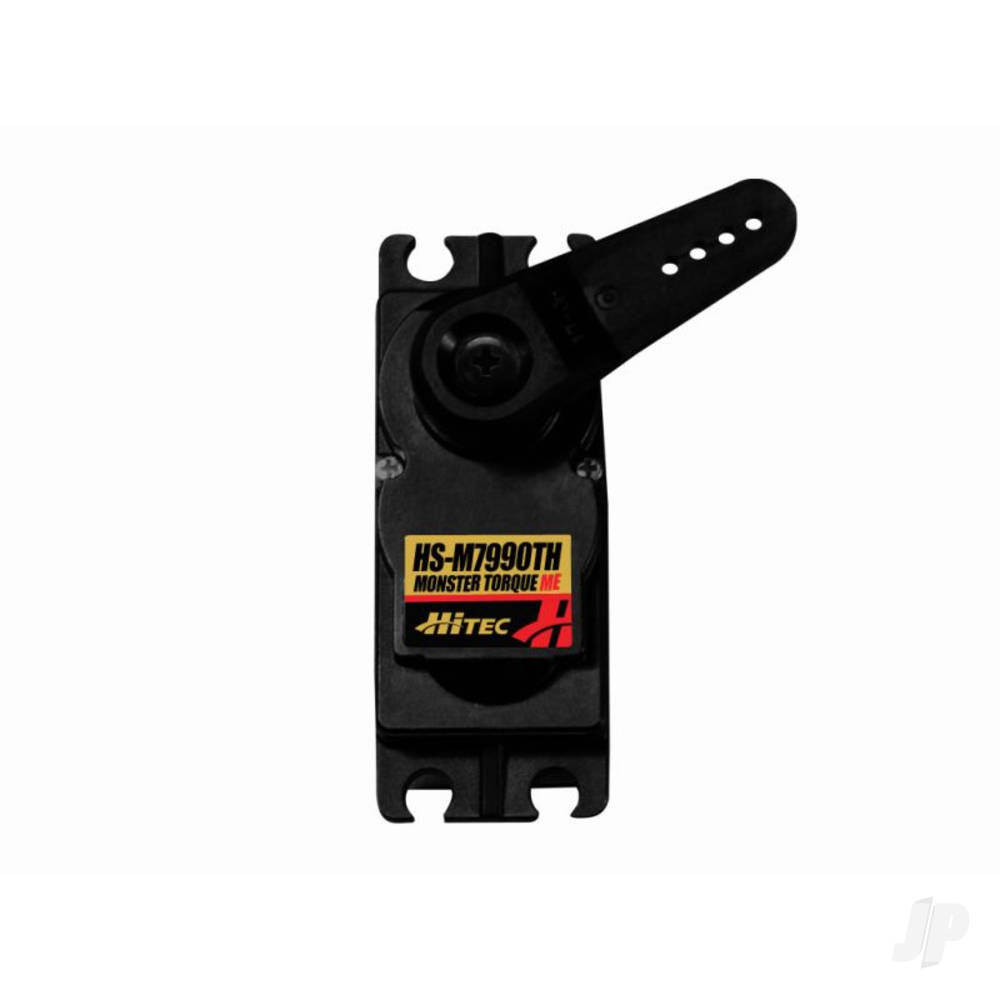

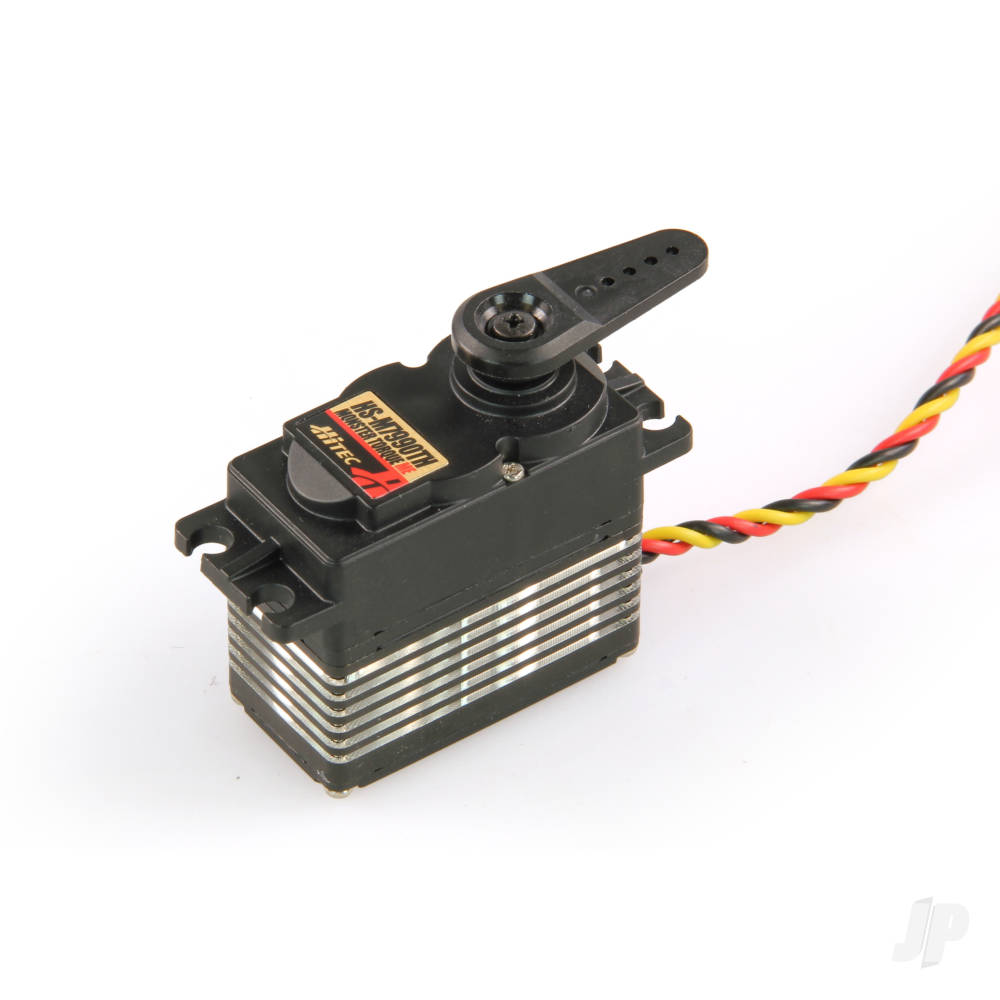

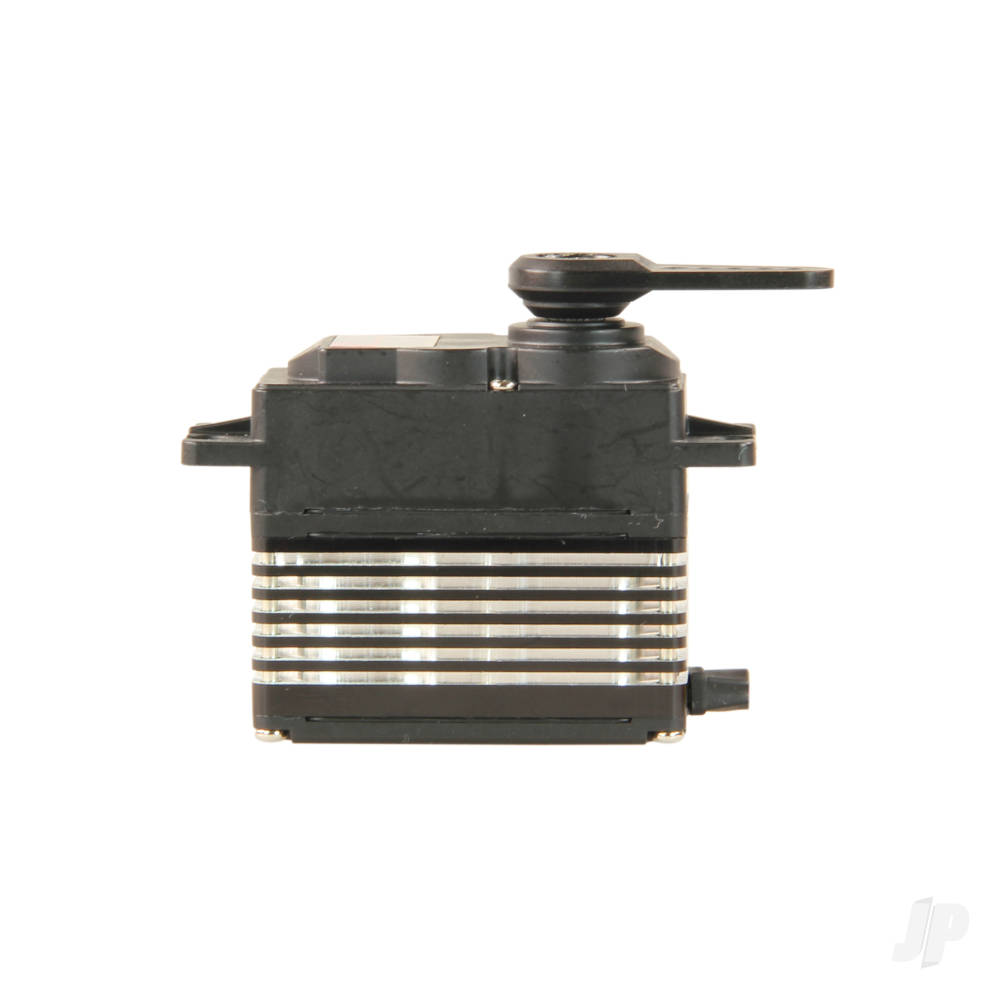

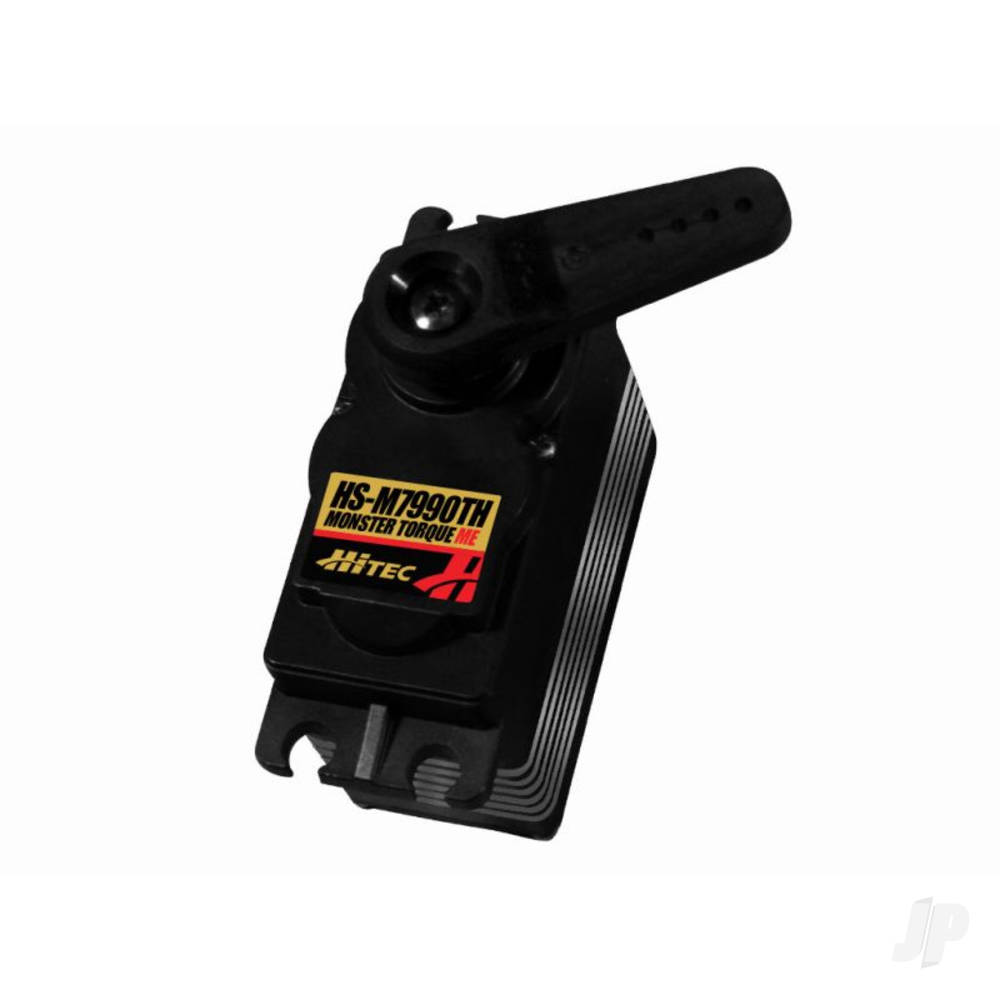

Hitec HS-M7990TH Standard Digital Coreless Servo 79g 44kg/0.17s 6.0V – 7.4V

Description

FEATURES

• High Resolution Magnetic Digital Ecoder
• G2.5 12 bit Digital Programmable Circuit
• Titanium Gear Train (MK first gear)
• Ultra Performance Coreless Motor
• Integrated Heatsink Case
• (8) O-Rings for Water/Dust/Fuel protection
• Dual Ball Bearing Supported Output Shaft
• 10% larger than a HS-7955TG

DETAILS

Hitec’s most technologically advanced servo, the ‘Monster Torque’ HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution ‘G2.5’ 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimised coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.

Specification:

Programmable Features Include:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point
• Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.
