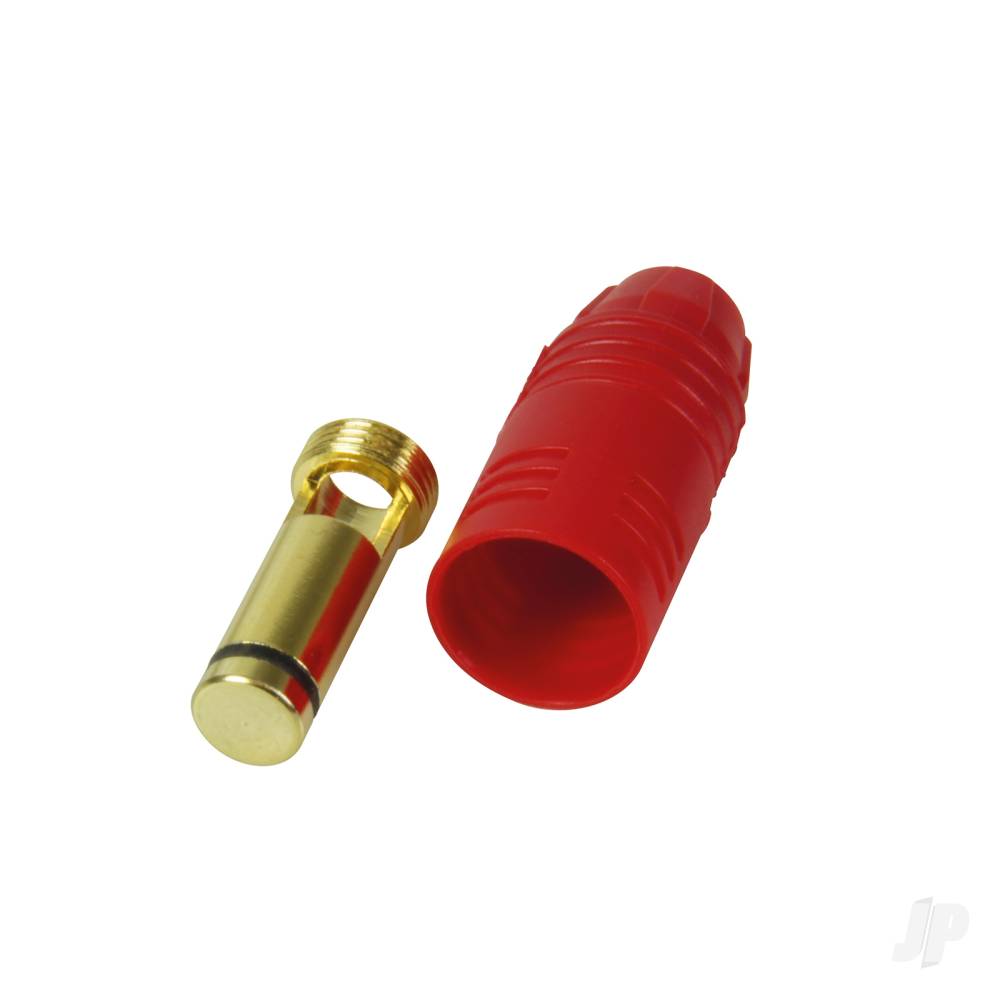

MPX-AS150 Male Plug, Red (2 pcs)

Multiplex

£9.78

RRP: £10.40
You save: £0.62

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Out of stock

Add to wishlist
Add to compare
SKU: JP-MPX1-02304 Categories: , , , ,

FEATURES

  • Dimension: 30.2mm x 13.5mm
  • Weight: plug 6 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 70A short-term 150A

DETAILS

1-02304 MPX plug AS150 anti-lightning red The MPX AS150 connectors are very robust and easy to use. They are suitable for larger drives. The housing has a good grip and is injection-moulded from temperature-resistant polyamide, which is classified according to fire class UL94 V0. It is securely screwed onto the contact via a thread. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The solder connections of the AS150 contacts are designed for cables with a cross-section of up to approx. 13mm (AWG 6). This AS150 connector is equipped with an anti-lightning resistor, which suppresses sparking when the drive battery is connected to the ESC.
