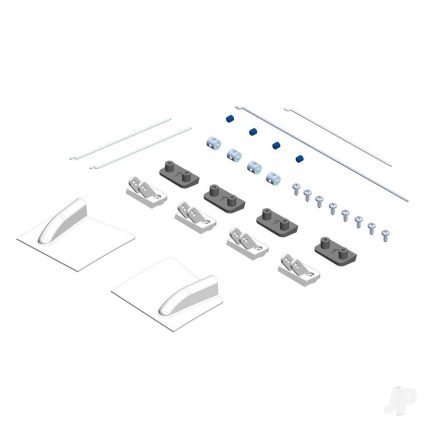

RaceWulf Set Of Accessories £13.99
Back to products
image_JP-TRX8361

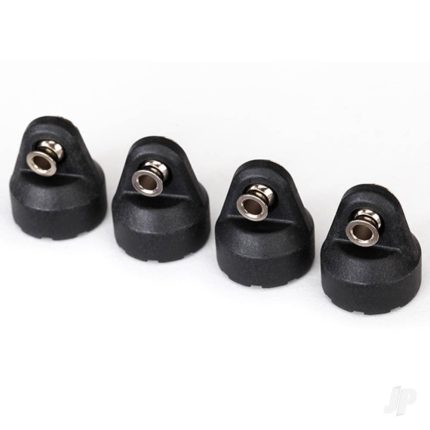

Shock caps (Black) (4 pcs) (assembled with hollow balls) £5.47

MPX-MR30 (5 pairs)

Multiplex

£12.21

RRP: £12.99
You save: £0.78

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Out of stock

Add to wishlist
Add to compare
SKU: JP-MPX1-02291 Categories: , , , ,

FEATURES

  • 3 pole
  • Contact diameter: 2mm
  • Dimension: Jack 14.4mm x 11.9mm x 4.9mm / Plug 15.4mm x 11.9mm x 4.9mm
  • Weight: Female 1.0 grams / Male 1.5 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 15A short-term 30A

DETAILS

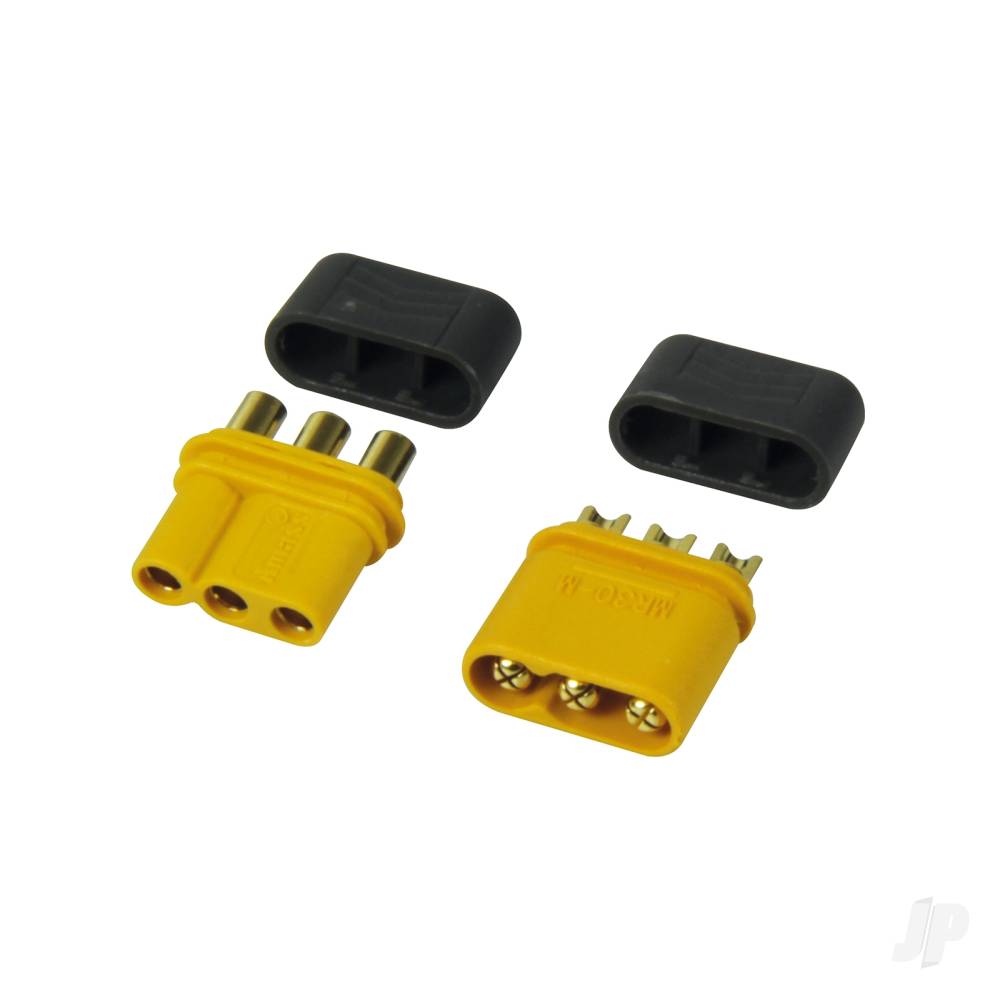

#1-02291 MPX connector MR30 The MPX MR-30 plugs are constructed asymmetrically, which guarantees high protection against polarity reversal. They are suitable as a plug connection between controller and motor for small brushless drives or as a connector for wing/tail servos on the fuselage. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the MR30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).
