SKU: MPX1-02288

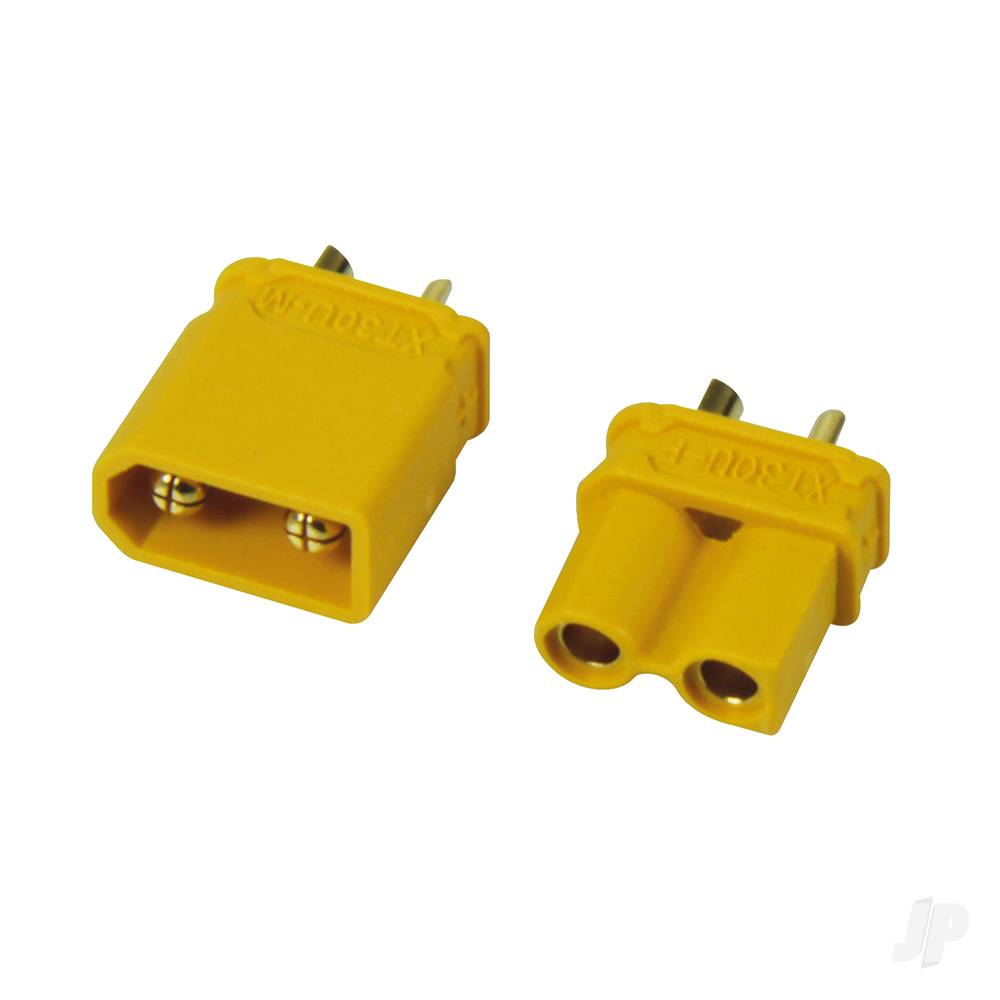

Multiplex MPX-XT30 (5 pairs)

RRP: ~~£10.40~~

Redfin Price: £9.15

Save 12%

Delivery: 2-4 Working Days

*items may be in stock with supplier or via our shop stock. All items in stock in our shop will be dispatched within 48 – 72 hours.

Available on backorder

Description

FEATURES

2 pin
Contact diameter: 2mm
Dimension: Jack 12.4mm x 10.2mm x 5.2mm / Plug 13.7mm x 10.2mm x 5.2mm
Weight: Female 0.8 grams / Male 1 gram
Maximum voltage: 500V DC
Current carrying capacity: 15A short-term 30A

DETAILS

#1-02288 MPX connector XT30 The MPX XT-30 plugs are constructed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for small drives or in the receiver power supply. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).
