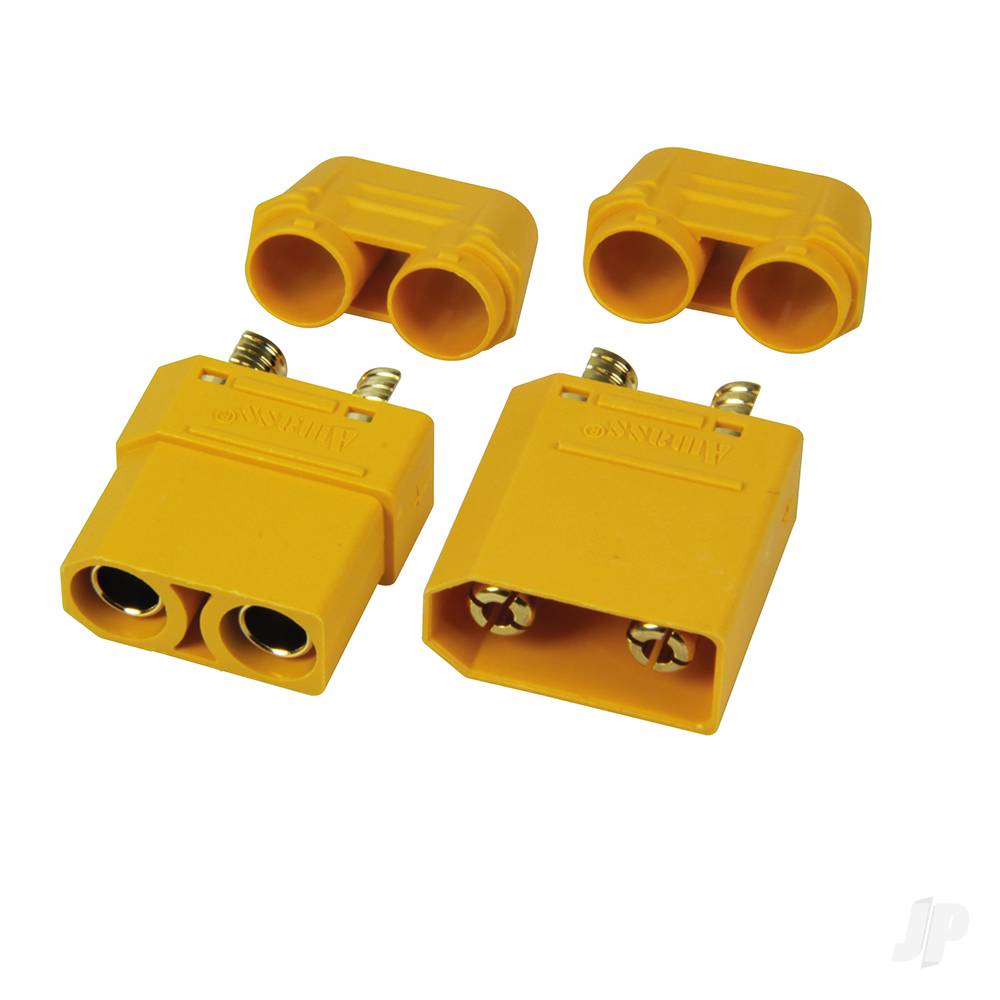

MPX-XT90 (3 pairs)

Multiplex

£13.72

RRP: £14.60
You save: £0.88

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Out of stock

Add to wishlist
Add to compare
SKU: JP-MPX1-02297 Categories: , , , ,

FEATURES

  • 2 pin
  • Contact diameter: 4.5mm
  • Dimension: Jack 29.7mm x 20.8mm x 9.9mm / Plug 30.7mm x 20.8mm x 9.9mm
  • Weight: Female 8 grams / Male 7.5 grams
  • Maximum voltage: 500V DC
  • Current carrying capacity: 45A short-term 90A

DETAILS

#1-02297 MPX connector XT90 The MPX XT-90 plugs are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium to large drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT90 contacts are designed for cables with a cross-section of up to approx. 5mm (AWG 10).
