SKU: MPX1-02299

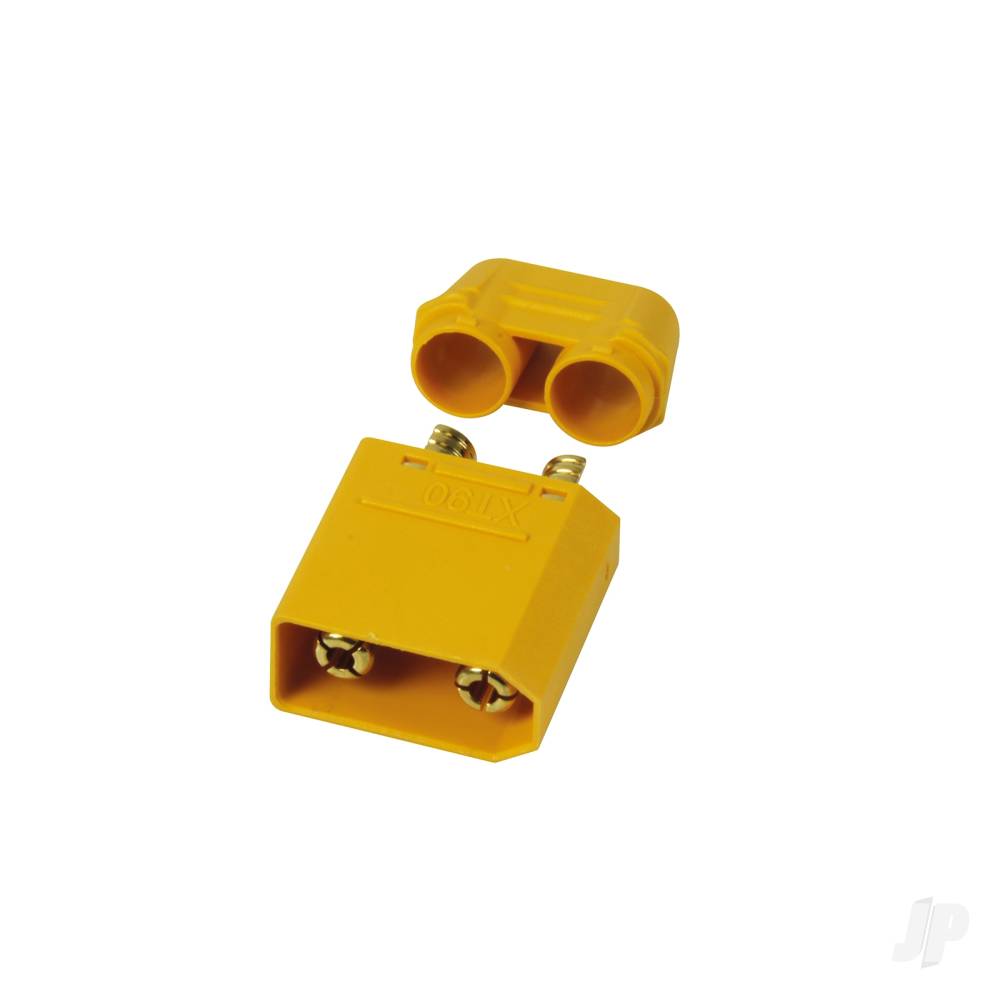

Multiplex MPX-XT90 Male Plug 2 (pcs)

RRP: ~~£5.40~~

Redfin Price: £4.75

Save 12%

Delivery: 2-4 Working Days

*items may be in stock with supplier or via our shop stock. All items in stock in our shop will be dispatched within 48 – 72 hours.

Available on backorder

Description

FEATURES

2 pin
Contact diameter: 4.5mm
Dimension: 30.7mm x 20.8mm x 9.9mm
Weight: plug 7.5 grams
Maximum voltage: 500V DC
Current carrying capacity: 45A short-term 90A

DETAILS

#1-02299 MPX connector XT90 The MPX XT-90 plugs are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium to large drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT90 contacts are designed for cables with a cross-section of up to approx. 5mm (AWG 10).
