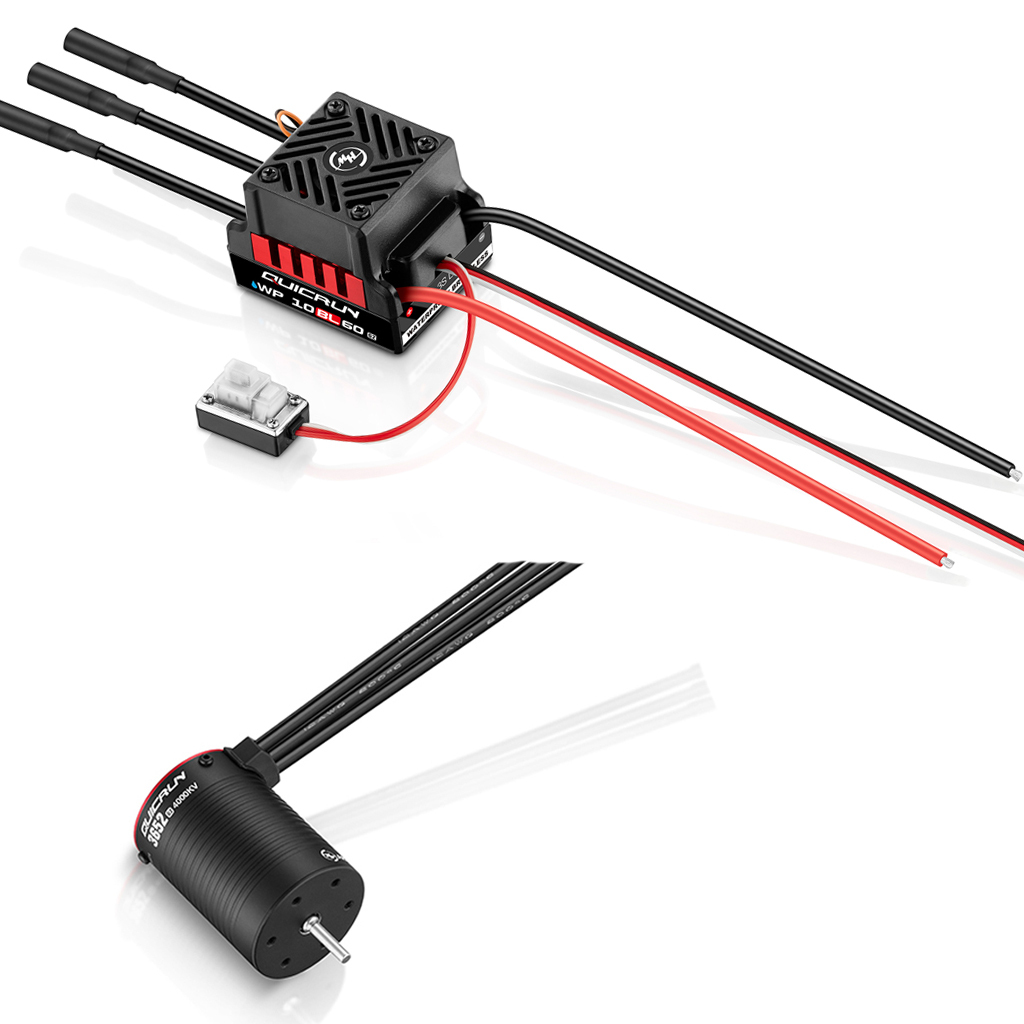

QUICRUN COMBO WP10BL60 G2 & 3652SL 4000KV G2

Introducing QuicRun WP 10BL60 G2 Brushless Speed Control and 3652SL 4000KV G2 Brushless Motor Combo.

Intelligent freewheeling technology effectively reduces heat generation
The intelligent freewheeling technology enables the ESC to be able to achieve higher driving efficiency at a lower operating temperature.
It further improves on the stability and reliability of the ESC.

Small and compact
The new QuicRun WP 10BL60 ESC is more compact than its predecessor
It is shorter in length by 2.5mm
The width is reduced by 1.5mm
Overall, it makes the layout and wiring convenient

Efficient cooling system
The mesh design of the heat sink is used for efficient cooling of the ESC. Each of the phases adapt a copper thermal bar for better cooling.
The heat sink designed with the fan ensures the ESC is always in the best operating temperatures.

Capacitor overheating protection
The capacitor overheating protection function will effectively prevent exploding capacitors due to overload usage. It prevents users from completely damaging the ESC.

All-weather operation capability
The ESC’s protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may degrade due to daily wear and aging. Do not submerge in water for a long time, otherwise the product may be damaged.

A vast variety of programming methods
It supports three programming methods:
Multi-function LCD programming box PRO, LED programming box, and SET key, making it easy for users to choose their favorite programming method for parameter adjustment.

Great value for money
Designed specifically for entry-level users. Simple to use high quality product. Easy to install and go!

Specifications

Scale – 1/10th

Brushed/Brushless – BL

Sensored/Sensorless – SL

Waterproof – Yes

Cont./Peak Current – 60A/360A

Input Voltage – 2-3S LiPo

BEC Output – Switch Mode 6V @3A

Input Wires – Black-14AWG-150mm*1 Red-14AWG-150mm*1

Output Wires – Black-14AWG-60mm*3

Input Connectors – No

Output Connectors – 4.0MM Gold (female)

Fan

Size – 30.0×30.0x10.0mm

Voltage Range – 6V

Powered by BEC

ESC Programing via

SET Button on ESC – Supported

LED Program Box – Supported

LCD G2 Program Box – Supported

OTA – Not Supported

Programming Port – Shared with fan port

Firmware Upgrade – Not Supported

Data Recording – Not Supported

Size – 46×36.5×34.3mm

Weight – 82.6g(w/Wires)

Applications – Sensorless / Sensored Brushless Motor (only in sensorless mode)

Vehicles – 1/10th On-road,Buggy,Short course truck

KV Rating/T Count – 2S LiPo:KV≤6000；3S LiPo:KV≤3500（3652/3660 size motor）

Motor Specification

The output of the motor is powerful and explosive.
Taking 3652-3250KV as an example and comparing it with the same specification, there is 10% increase in power.

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification.
Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher, motor temperature is lower under the same load condition.

Explosion-proof rotor design, strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Solid material, strong and reliable
Provides a solid guarantee for the long-term excellent performance of the motor.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Pole Count – 4
KV Rating – 4000KV
LiPo – 2-3s
No-load Current(A) – 5.3A
O.D. (mm) – 36
Length (mm) – 52
Shaft Diameter (mm) – 3.175
Weight (g) – 224g
Front Bearing – D13*D5*T4
Rear Bearing – D13*D5*T4
Applications – 1/10th On-road, Buggy, Truck (Light Load)
