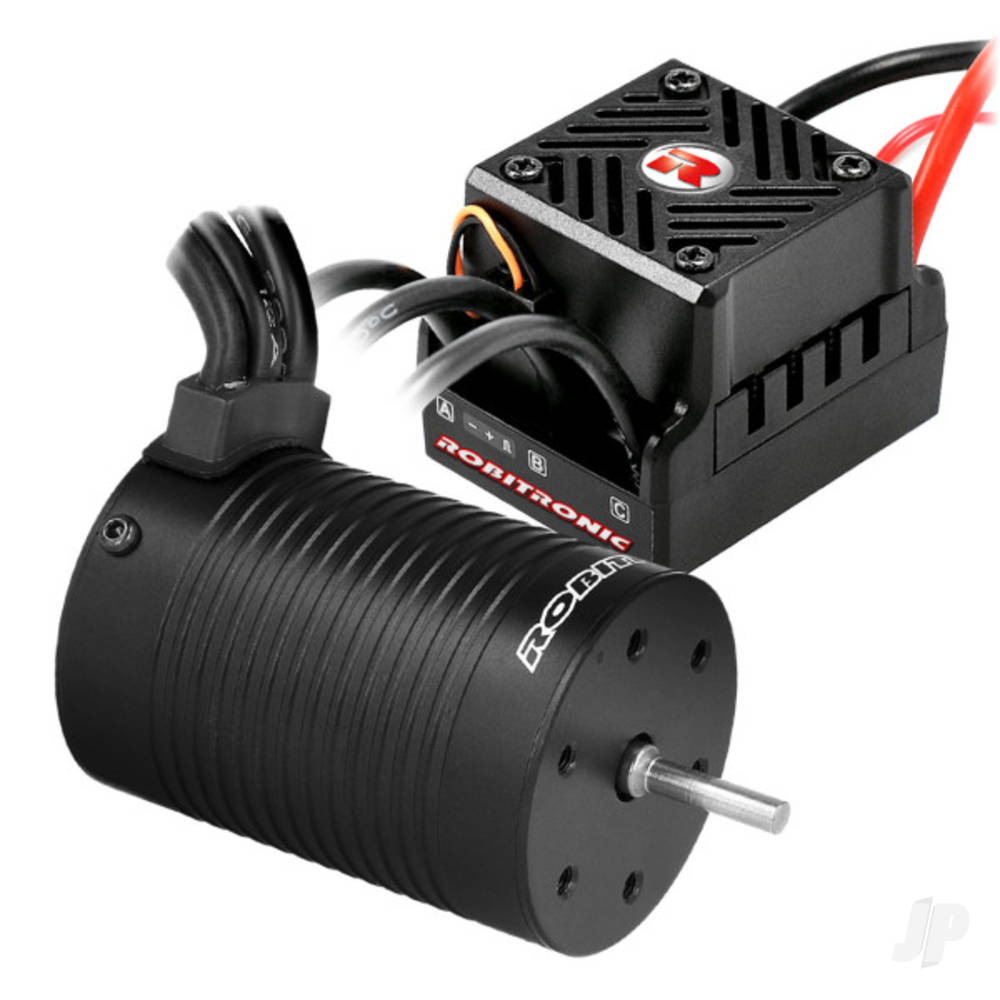

Razer ten G2 Brushless Combo 60A 3652 3250kV

FEATURES

• More compact and modern than its predecessor
• Fully water and dustproof ESC (not applicable to the motor)
• ON/OFF switch with setup button
• S-BEC with 6V and 3A peak current
• Plug and Play, battery and motor connectors pre-soldered
• Multiple protection features: low voltage cutoff, thermal protection, and signal loss protection
• Easy programming via setup button
• Separate programming port, easy connection for optional LED programming card
• 4-pole rotor design for high torque and quick response
• CNC machined high-strength aluminium housing for optimal heat dissipation
• Motor winding made of pure, double-insulated copper wire
• Precision ball bearings for smooth operation and longevity
• Highly flexible silicone connection cables with pre-soldered 4mm connectors
• High-strength, polished 3.17mm steel rotor shaft

CONTENTS

• 1x Razor ten Brushless ESC 60A 2-3s
• 1x Razor ten Brushless Motor 3652 3250kV

DETAILS

Whether it’s 1:10 On-Road or 1:10 Off-Road, the action starts with the Razer ten G2 Combo. The Razer ten G2 60A ESC is always the top choice when reliability, efficiency, and durability are paramount. With extensive adjustment and programming options, it leaves nothing to be desired. All cables are pre-wired and ready to connect, no soldering required. Paired with the 3250kV Razer ten motor, it delivers a sensorless experience with immense power. The motor features a CNC machined aluminium housing that can be disassembled, along with a precision-balanced rotor supported by high-quality ball bearings, delivering top-tier performance.

ESC

• Item No.: R01225
• Current: 60A
• Type: Sensorless
• Cells: 2-3S LiPo / 6-9 cells NiMH
• Motor Limit:
  • 2S: 3652/3660 motor, kV = 6000
  • 3S: 3652/3660 motor, kV = 3500
• BEC: 6V @ 3A
• Fan: Yes, powered by BEC
• Programming Port: Yes
• Battery Connection: T-Plug
• Motor Connection: 4mm
• Dimensions: 46 x 36.5 x 35.5mm
• Weight (incl. Cables): 98.2g
• Application: 1/10 On-Road, Buggy, Short Course Truck (2WD)

Motor

• Item No.: R01230
• kV Rating: 3250kV
• Cells: 2-3S
• Poles: 4
• Outer Diameter: 35mm
• Length: 52mm
• Shaft Diameter: 3.17mm
• Shaft Length: 15mm
• Weight (incl. Cables): 204g
• Application: 1:10 Onroad, Buggy, light SCT/Truck/MT
