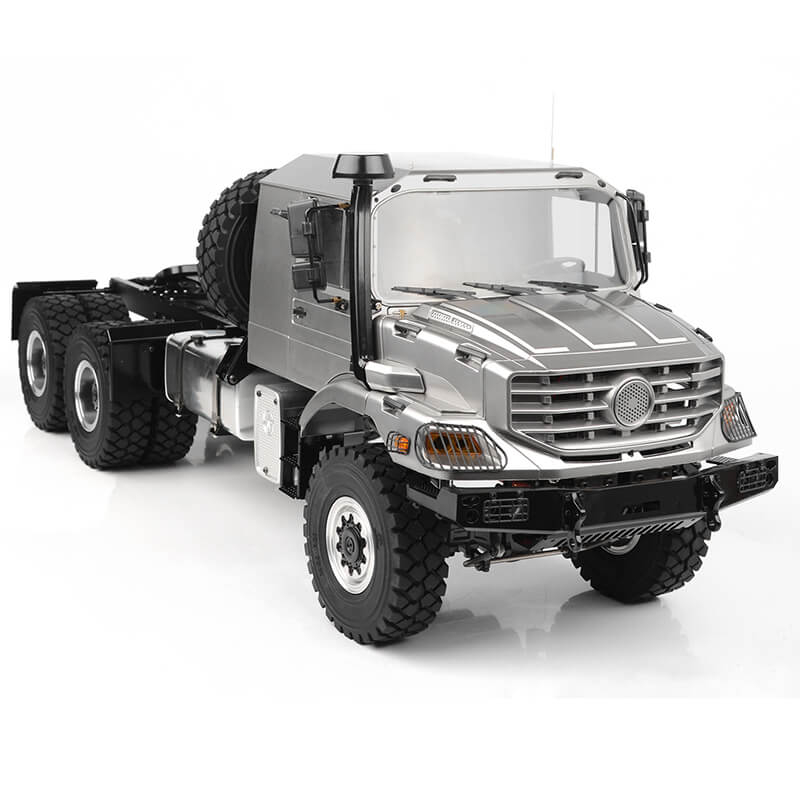

RC4WD 1/14 SLEDGE HAMMER HEAVY HAUL 6X6 RTR TRUCK

Features

• Hard Plastic European Style Front Cab
• Full Metal 2 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Molded Fuel Tanks (Stainless Steel)
• Super Scaled Leaf Spring Suspension Setup
• Scale Rims (Billet Aluminum)
• Remote Lockable Front and Rear Axles (Locking Differential)
• Full Metal Front and Rear Axle Housing
• Steel Scale Drive Shaft
• Realistic Front Cab Latch
• Rear Light Guards
• Scale Light Buckets (Fits 3-5mm LED)
• Recommended Payload: 10kg / 22lbs
• LiPo Cutoff
• Painted Body
• Scale Wheels and Tires
• Brushed Motor
• First Gear 1:64, Second Gear 1:16 (Transmission)
• Basic 4 Channel 2.4Ghz Radio

Specifications

Length: 28.8in / 734mm
Width: 9.05in / 230mm
Height: 10.7in / 273mm
Weight: 6.9kg / 15.2lbs
Axle Gear Ratio: 2.6 : 1
Maximum Load: 10kg / 22lbs
Load Total Mass: 17kg / 37lbs

What’s Included

• 1/14 Sledge Hammer Heavy Haul 6×6 RTR Truck

Needed To Complete

• 5200mAh 11.1V 3S 25C LiPo Battery Pack with XT60 Plug (Battery Size: 5.59 x 1.77 x 1.57in / 142 x 45 x 40mm)
• Compatible Battery Charger
• 4 x AA Batteries for Radio

Notes

• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Use threadlock sparingly.
• Do not over tighten screws, otherwise, you may strip the thread.
• Do not use more than 3S battery. (11.1 volt(s))
• This product is for experienced R/C users. Not recommended if you just started with R/C.
• Only the right side of the truck has a blind mirror with downward view.
