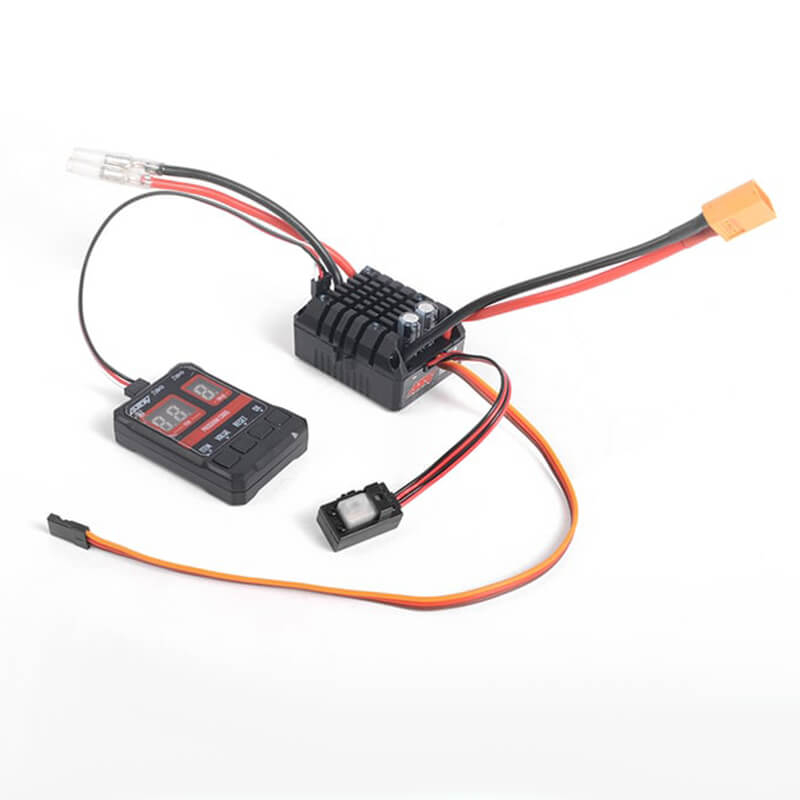

RC4WD OUTCRY EXTREME SPEED CONTROLLER ESC W/ PROGRAM CARD

Features

• Input Voltage: 2-3S Lipo/5-9 Cells NiMH
• Built-in Powerful Switch-mode BEC
• BEC Output Voltage-Current: 6V / 7.4V @ 8A
• Cont. / Peak Current : 80A / 400A
• Applicable to All Weather Conditions

Specifications

Multiple Protection Functions: Low Voltage Protection, Over-temperature Protection
Recommended Motors: 540 /550 / 775 Motors
Size: 1.96 x 1.68 x 1.04in / 50 x 42.9 x 26.5mm
Program Card Working Voltage: 5.0V – 8.0V
Program Card Size: 1.53 x 0.47 x 22.0in / 38.9 x 12.0 x 55.9mm
Total Weight: 1.37oz / 110.5g
Battery Plug: XT60

What’s Included

• 1 x Outcry Extreme Speed Controller ESC
• 1 x LED Program Card
• 1 x XT60 Female to Tamiya Male Connector Adapter
• 1 x Extension Wire 150mm

Fits

• RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)

Notes

• Prior to proceeding, be sure to either remove the pinion from the motor or elevate the truck so the wheels are not able to touch the ground.
• Do not touch this product while in use to avoid injury. Product emits heat and thus, the heatsink may become extremely hot.
• This product is water-resistant.
• Begin using your ESC by calibrating with your transmitter. We strongly recommend all users to use the “Fail Safe” function on the radio system and set (F/S) to “Output OFF” or “Neutral Position” . Example of calibrating Neutral range and Endpoint.
