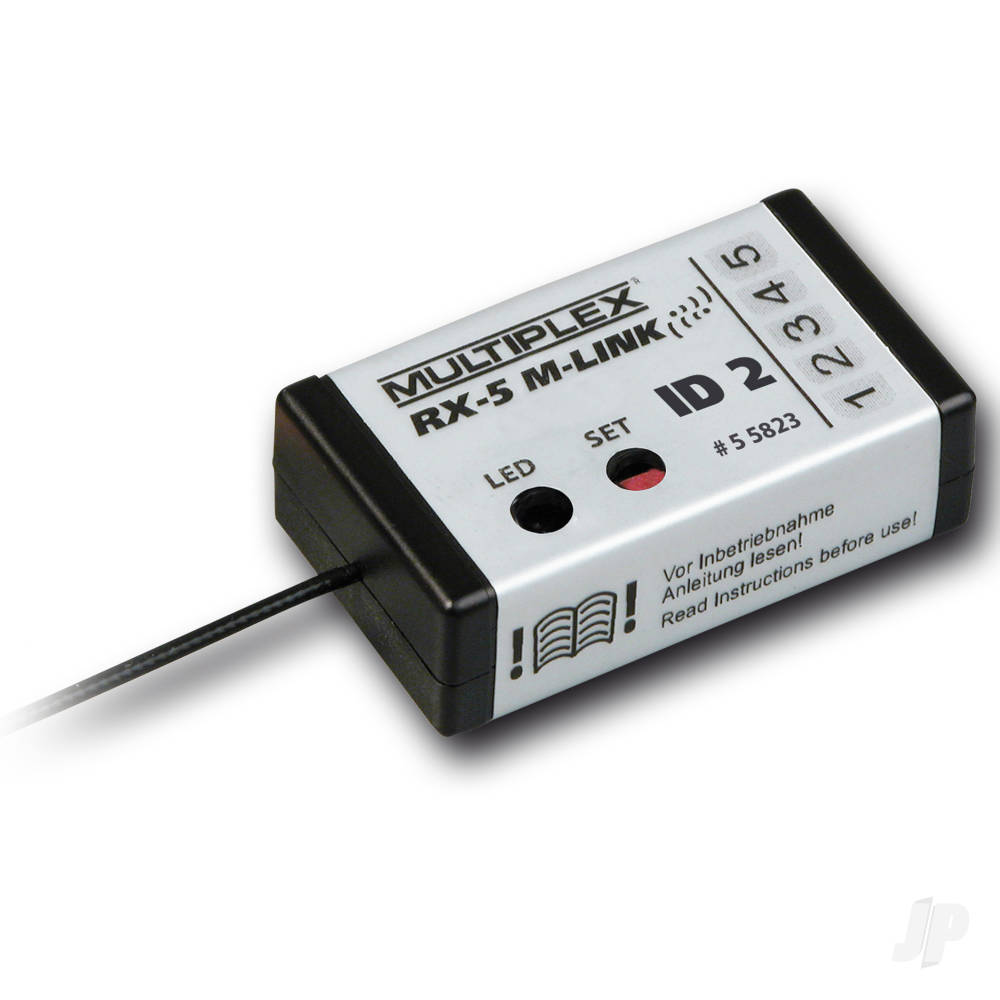

Receiver RX-5 M-LINK ID 2 2.4GHz 55823

DETAILS

Compact and inexpensive 5-channel 2.4 GHz M-LINK receiver with UNI connector system. Due to the compact housing and the small dimensions in connection with the inline connector arrangement, it is particularly suitable for smaller models.

Typical areas of application:

• Helicopter models up to approx. 80cm rotor diameter
• Electric and motor modules with a wingspan of up to approx. 1.3m
• Model gliders and electric gliders with a wingspan of up to approx. 2m
• RC cars
• RC boats

Thanks to the model recognition, our entry-level transmitter SMART SX automatically changes the respective model memory based on the ID of the receiver. When changing models, the model-specific settings (e.g., trimming, servo rotation directions, dual rate) stored in the SMART SX transmitter are always automatically available. This eliminates the need to check the direction of servo rotation or readjust the trims, which is required for typical, simple entry-level transmitters.

The following recipients/IDs are available:

• ID1 (enables SMART SX model memory 1)
• ID2 (enables SMART SX model memory 2 for EasyStar II)
• ID3 (enables SMART SX model memory 3 for EasyGlider PRO)
• ID5 (enables SMART SX model memory 5 for RAZZOR)
• ID6 (activates SMART SX model memory 6 for FunCopter)
• ID7 (enables SMART SX model memory 7 for Funman)
• ID9 (enables SMART SX model memory 9 for Shark)
• ID10 (enables SMART SX model memory 10 for Panda)
• ID21 (enables SMART SX model memory 21)
• ID22 (enables SMART SX model memory 22)

The model data records can be overwritten or adjusted on the transmitter side (SMART SX6), so that the receivers can be used universally. The RX-5 ID receivers can also be operated with any other M-LINK remote control without ID recognition and then correspond to a RX-5 light M-LINK 2.4 Ghz receiver.
