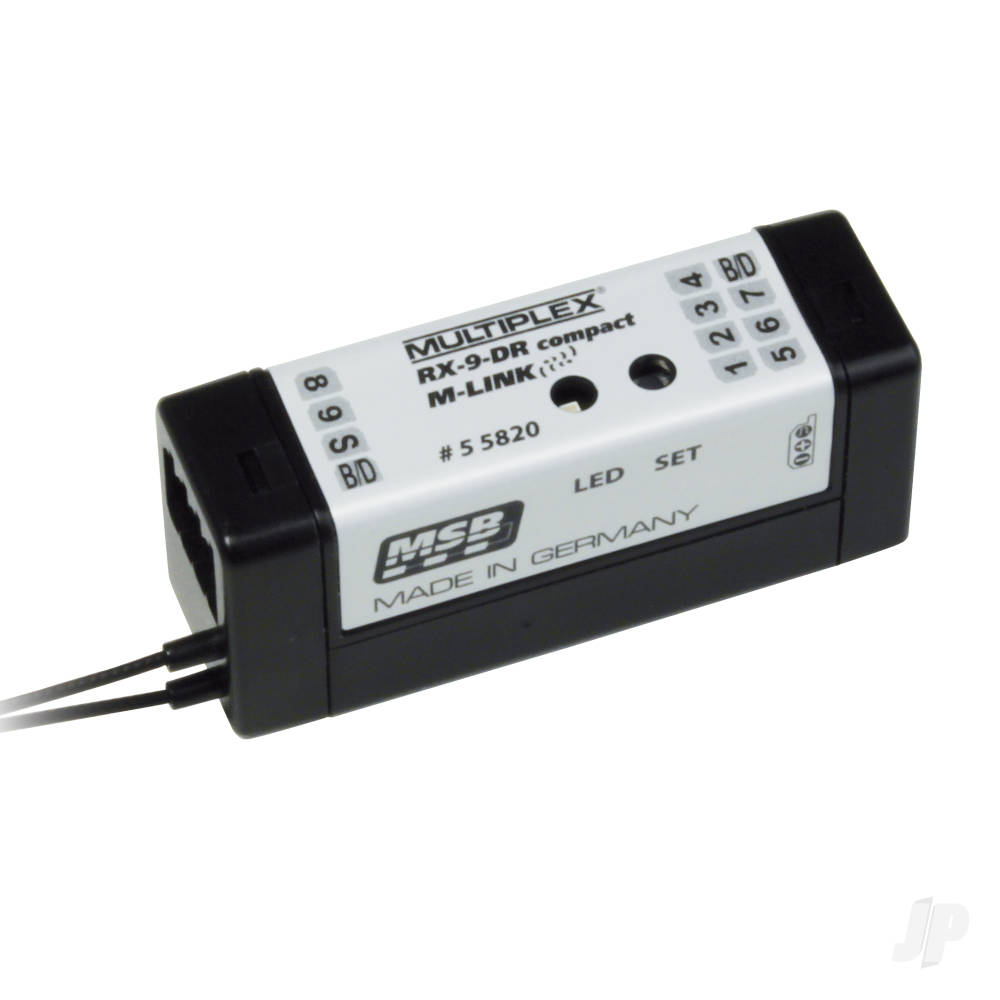

Receiver RX-9-DR Compact M-LINK 2.4GHz 55820

DETAILS

The outstanding features of the new “compact” series of MULTIPLEX receivers are their slim format and top-level performance. These receivers are primarily aimed at glider pilots who fly F3B and F3J models, and require high quality and excellent security. The “compact” series of receivers contain the same technology as the “pro” receiver series intended for large-scale models. This means that they feature two complete receive sections (DR = Dual Receiver) and high-performance signal pre-amplifiers. The RX-12-DR compact M-LINK now ranks as the smallest, highest-performing twelve-channel receiver available anywhere!

• Ultra-compact dual receiver, available with 9 channels
• Signal pre-amplification for maximum sensitivity
• Telemetry / downlink capability. Receiver battery voltage and signal quality (LQI) without separate sensors
• Integral sensor interface for connecting external sensors. Including other makes of sensor compatible with the MSB (MULTIPLEX Sensor Bus)
• HOLD / FAIL-SAFE function
• Integral button and LED for: Binding, FAIL-SAFE programming, RESET and operating status information
• Wide operating voltage range 3.5 – 9 V (compatible with high-voltage servos)
• Option of two-receiver mode (= double diversity)
• Integral error counter / data logger (operating voltage errors, signal errors)
• Sum signal output (e.g. for FBL systems)
• Compatible with MULTImate (for supplementary receiver settings, e.g. HOLD / FAIL-SAFE times, HOLD / FAIL-SAFE by channel, telemetry settings)
• Integral PC interface for firmware updates and receiver set-up via PC

Specification
