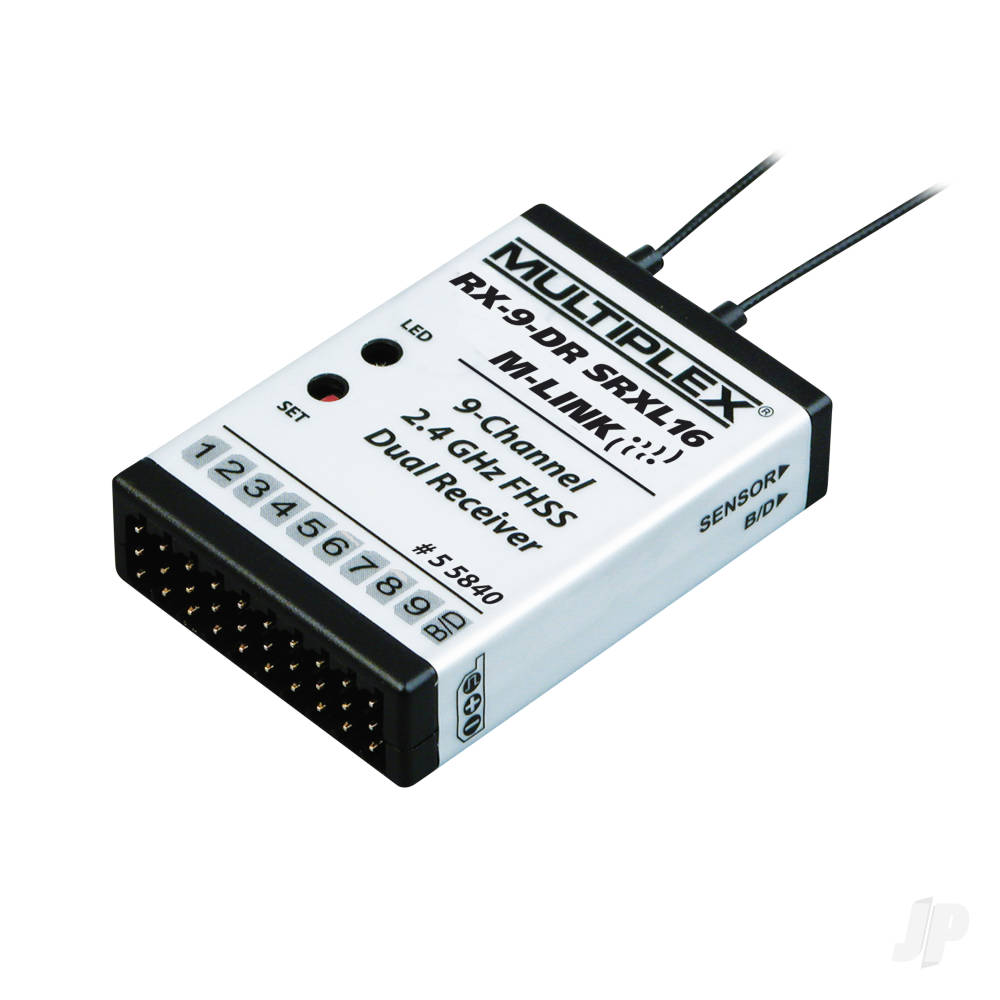

Multiplex Receiver RX-9-DR M-LINK with SRXL Interface 2.4GHz 55840

Description

FEATURES

• Max 9 proportional channels
• 16 proportional channels on the SRXL interface
• SRXL interface for MULTIswitch FLEXX bus and for flybarless systems
• HOLD/FAIL-SAFE function
• Telemetry/return channel capable
• Integrated sensor interface for connecting external sensor modules (max. 16)
• Integrated error counter (voltage and signal errors)
• MULTImate compatible
• Integrated PC interface – updateable

DETAILS

9-channel receiver with serial servo output SRXL

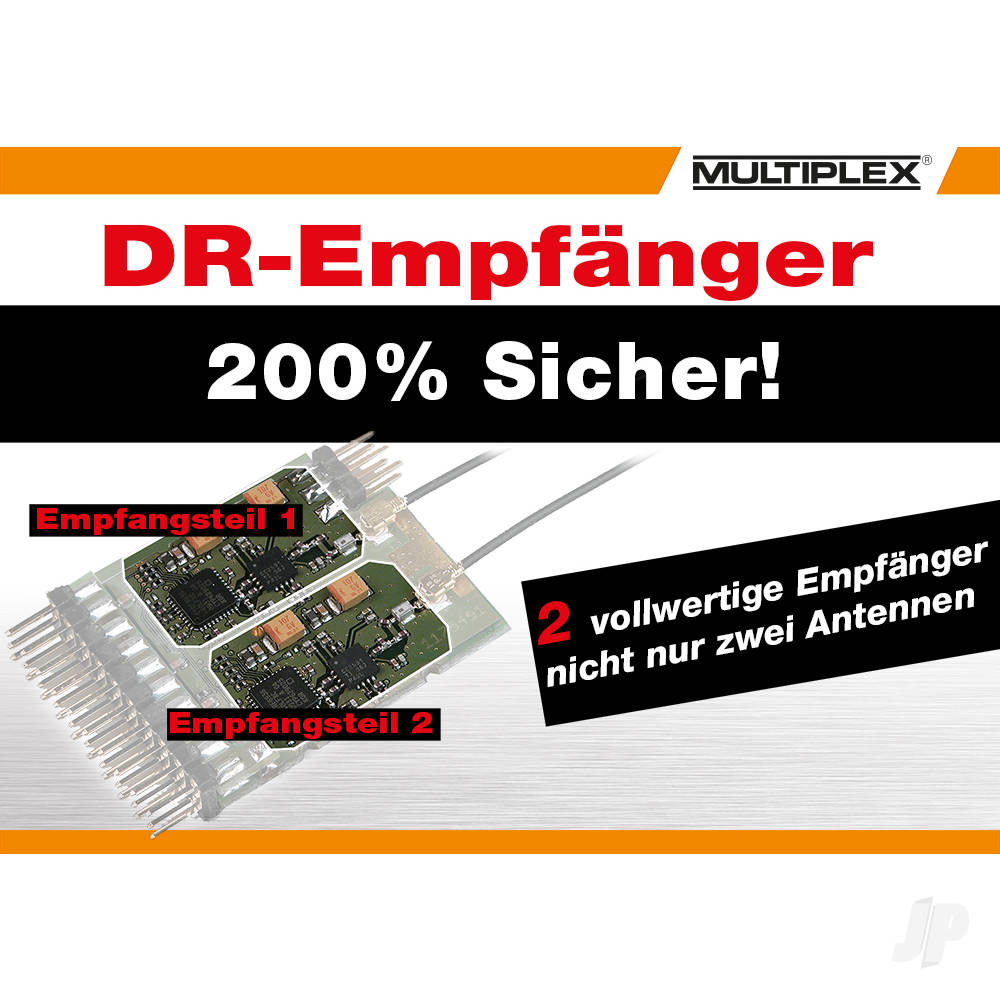

The universal 9-channel DR receiver with serial servo output SRXL is designed especially for use in functional models. The RX-9-DR SRXL16M-LINK receiver can be operated with any other M-LINK remote control. A high-quality 9-channel receiver in MULTIPLEX 2.4 GHz M-LINK technology, built using the latest SMD technology, for all types of models. As a dual receiver, this receiver has two complete receiver circuits working in parallel (receiver diversity). In conjunction with a special signal pre-amplification, this ensures maximum sensitivity and thus excellent reception quality and maximum system range.

Typical areas of application:

• Helicopter
• Multicopter
• RC trucks
• RC construction machines
• RC ships
