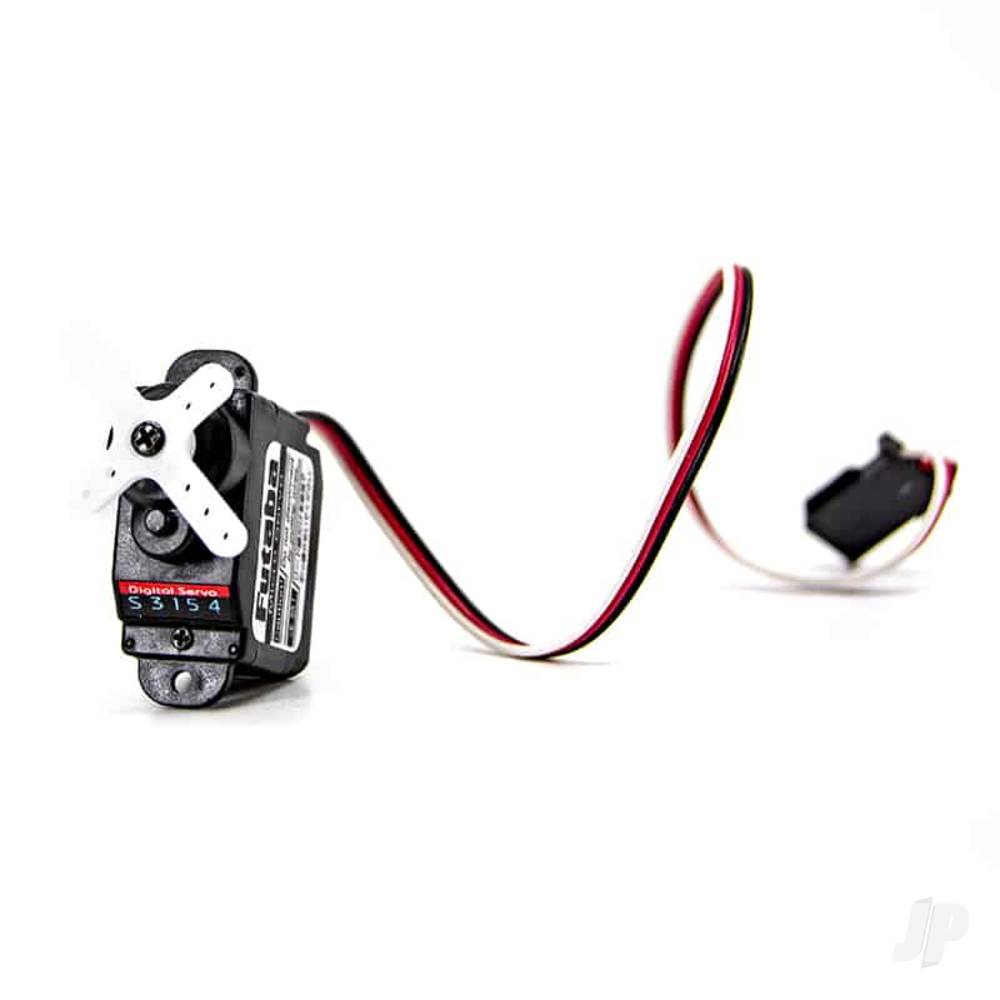

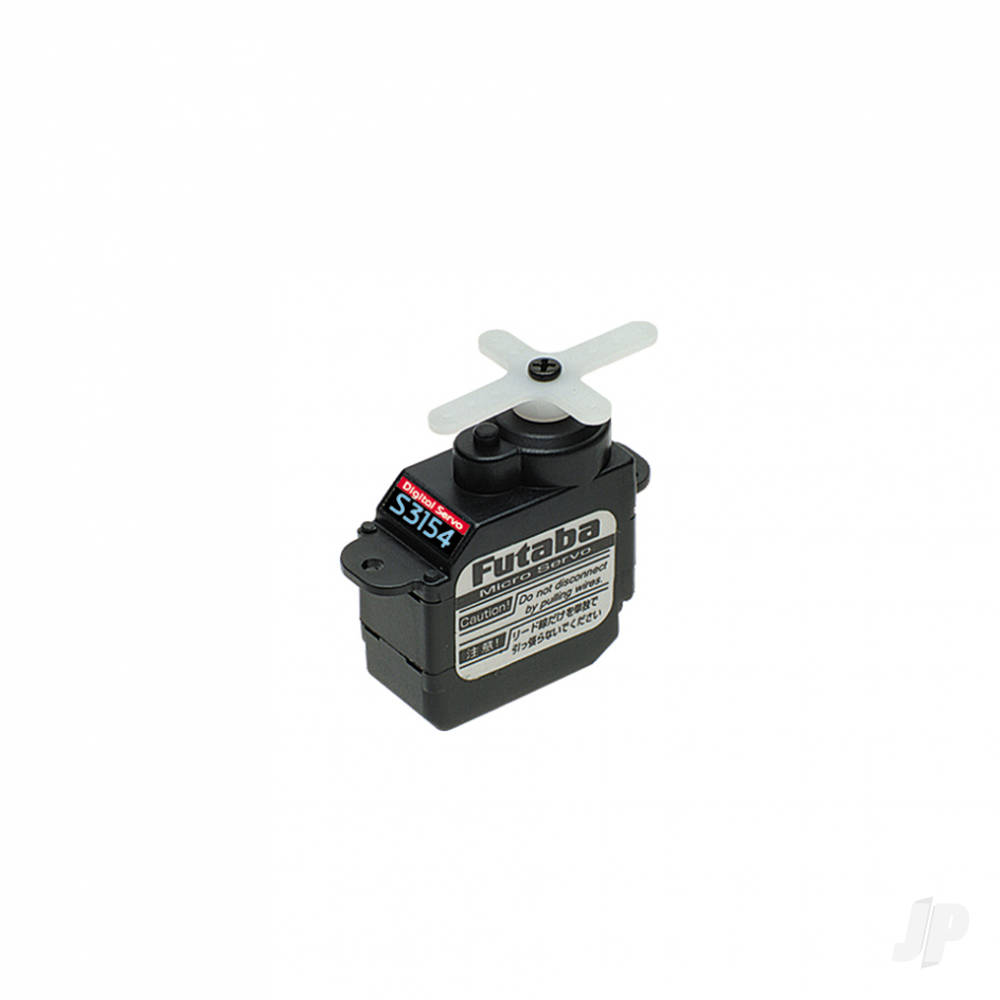

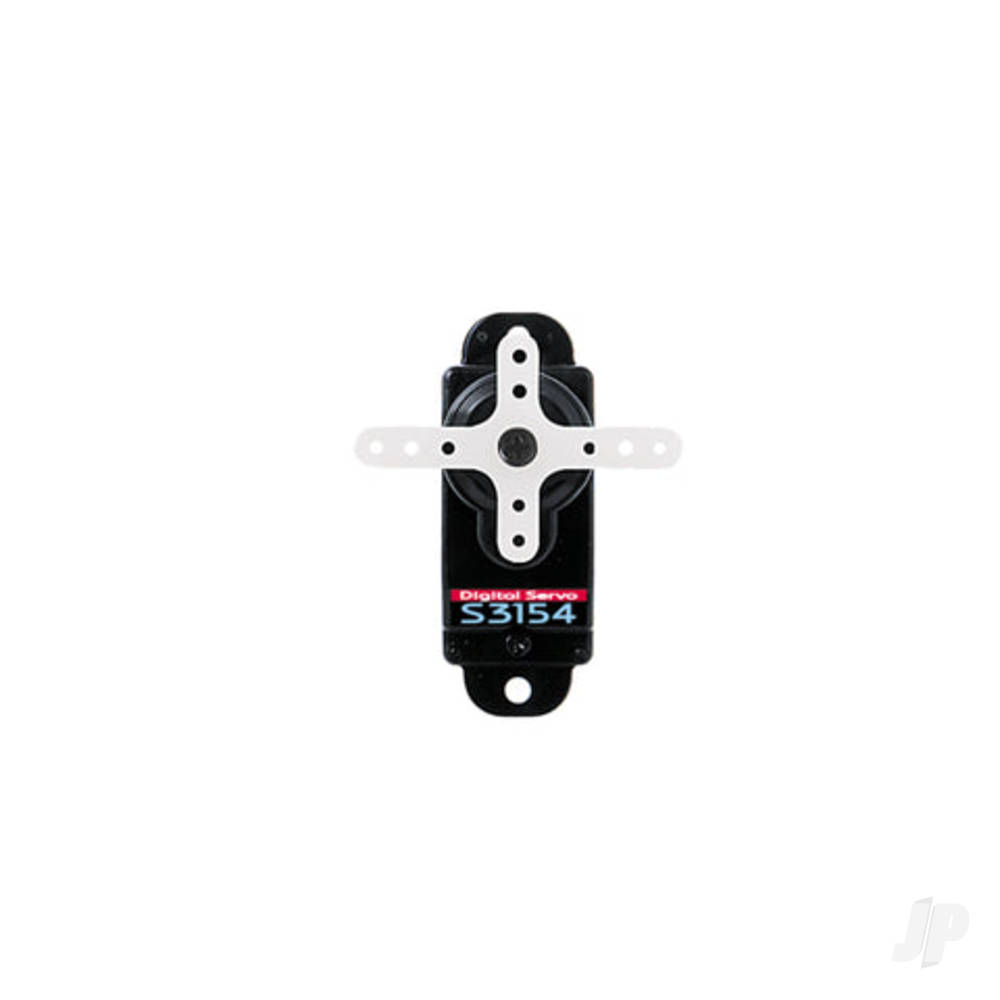

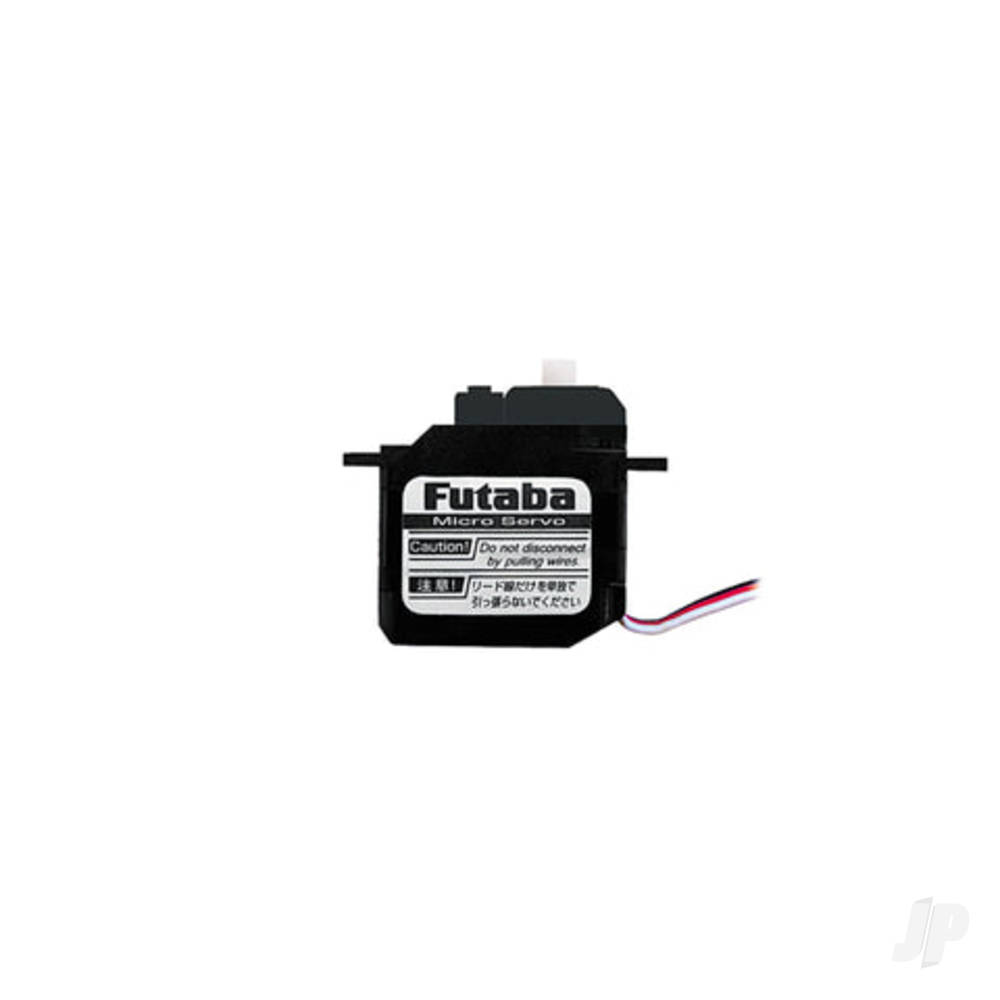

Futaba S3154 Sub-Micro Digital Servo 1.7kg / 0.09s 4.8V – 6V

Description

FEATURES

• Torque: 1.5kgf cm (4.8V) / 1.7kgf cm (6.0V)
• Speed: 0.10sec/60° (4.8V) / 0.09sec/60° (6.0V)

CONTENTS

• 1x S3154 Sub-Micro Digital Servo
• Horns
• Mounting Hardware

DETAILS

S3154 Micro Digital Air Servo

For Small Electric Powered Models

Speed:
0.10 sec/60 at 4.8V
0.09 sec/60 at 6.0V

Torque:
20.8 oz/in at 4.8V
23.5 oz/in 6.0V

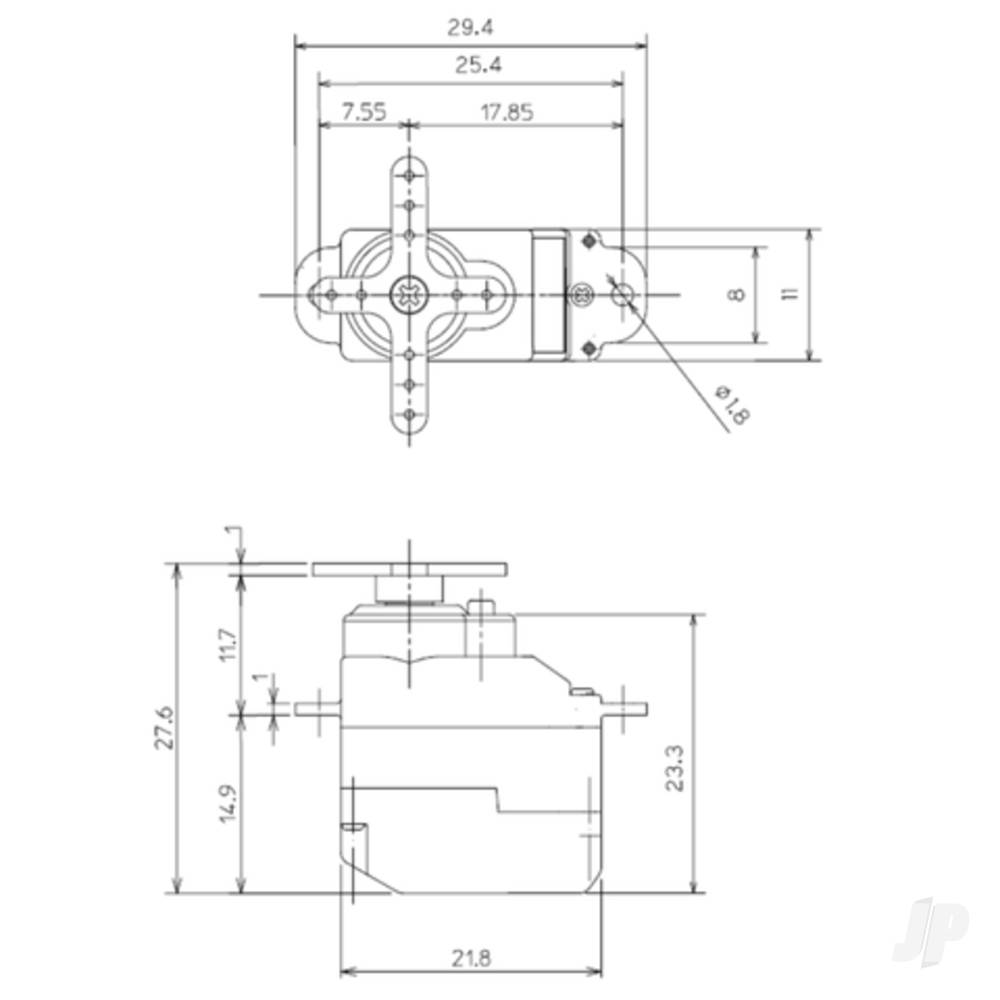

Size:
0.86 x 0.43 x 0.78 in

Weight:
0.27 g

The S3154 servo is a micro servo for small electronic models. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque
• Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
• Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
