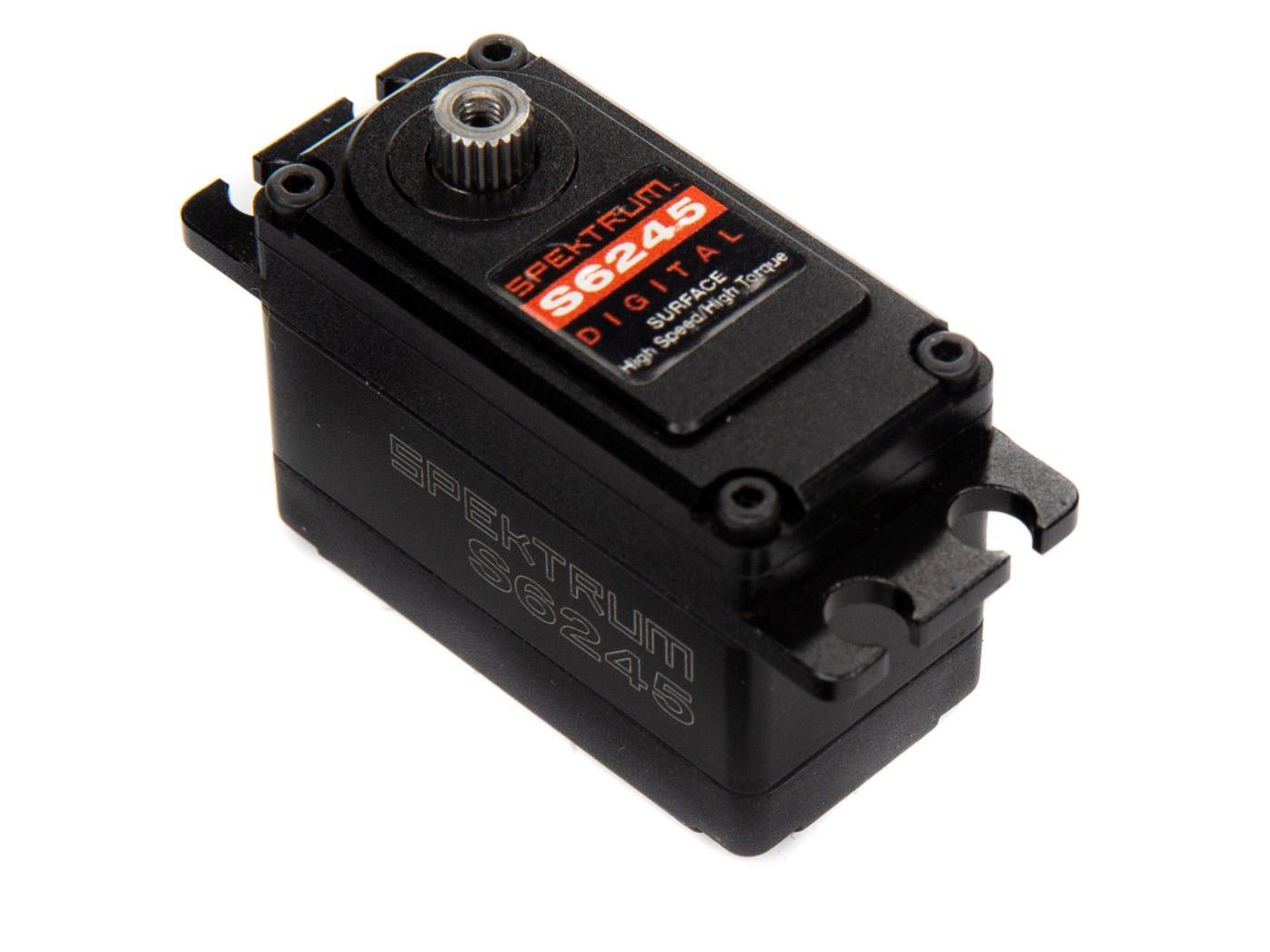

S6245 High Speed/Torque Servo

£133.49

RRP: £149.99
You save: £16.50

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Available on back-order

SKU: LOGIC-P-SPMSS6245 Categories: , , , , ,

Features

  • Stylish stealth black and silver anodized aluminum case*
  • Aluminum case provides great heat dissipation
  • High Voltage HV compatible (7.4V/2S Max)*
  • Improved torque and speed*
  • Removable wire harness with different lengths available
  • Improved gear design for added durability*
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Includes 2 inch extension for easy minimum wire installs
  • Robust aluminum mounting tabs
  • NMB dual main output shaft bearings
  • 23T output shaft
  • Waterproof

    *Compared to S6240 Racing Servo

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.

Specification

  • Motor Type Coreless
  • Height 30mm
  • Length 41mm
  • Weight 2.2oz (62.37g)
  • Width 20.8mm
  • Programmable: No
  • Servo Operating Voltage: 6.0 – 7.4V (HV)
  • Speed: 0.08 sec/60 deg @ 6V, 0.06 sec/60 deg @ 7.4V
  • Spline Count: 23 Teeth
  • Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
