SAVOX DIGITAL LOW PROFILE SERVO 9KG @ 6V

The SAV-SC1251MG+ is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features

• Coreless Motor
• 4096 Super High Resolution
• Water Resistant with 4 silicon seal implanted
• Strong and precise-made metal gears
• Digital control
• Sleek design with laser etching
• Aluminium Case provides cooler operating temperatures.
• Metal gear train ensures durability under harsh situations.
• Ideal for 1/10 on road vehicles

Specifications

• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 44.5g
• Torque @ 4.8v: 7.0kg/97.2oz-in
• Torque @ 6v: 9.0kg/125.0oz-in
• Speed @ 4.8v: 0.10 sec/60 deg
• Speed @ 6v: 0.09 sec/60 deg
• Servo Horn: 25 Tooth Spline

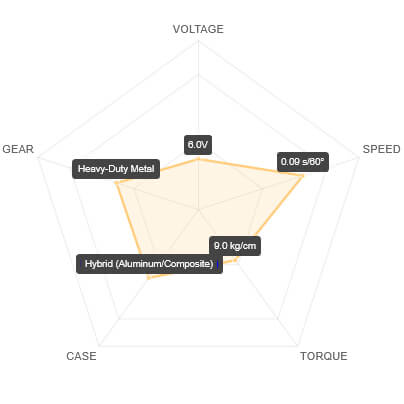

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

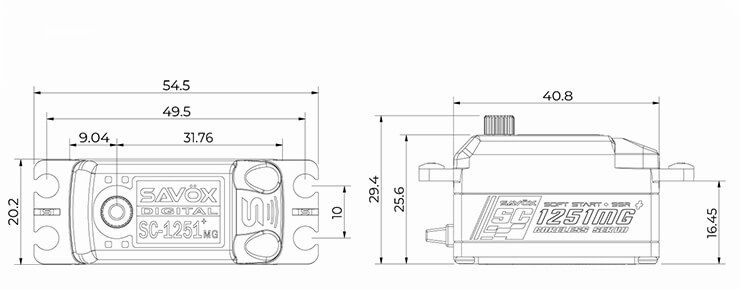

Dimensions
