SAVOX HIGH VOLTAGE STD ULTRA TORQUE 30KG/0.10S@7.4V – PLUS

The Savox SV1272SG+ ‘monster torque’ high voltage unique steel gear digital servo is extremely powerful for its size, pushing a massive 30kg-cm of torque.

Features

• Super strong and precision made unique steel gears provide high level of durability and survives heavy use.
• Coreless motor brings output performance to the top level – smoother, faster, and more efficient.
• Special design for high voltage native 2s LiPo operation.
• Our servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for large-scale airplane, jet, and 1/5th scale surface.

Specifications

• Dimensions(mm): 40.3 x 20.2 x 37.2
• Weight(g): 63.0
• Speed @6.0V (sec/60): 0.13
• Torque @6.0V (kg-cm): 23
• Speed @7.4V (sec/60): 0.1
• Torque @7.4V (kg-cm): 35
• Speed @8.4V (sec/60): 0.09
• Torque @8.4V (kg-cm): 40
• Gear: Unique Steel
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

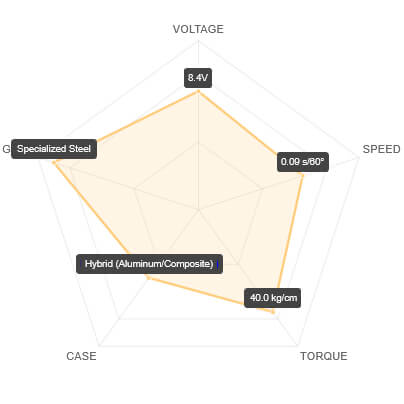

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

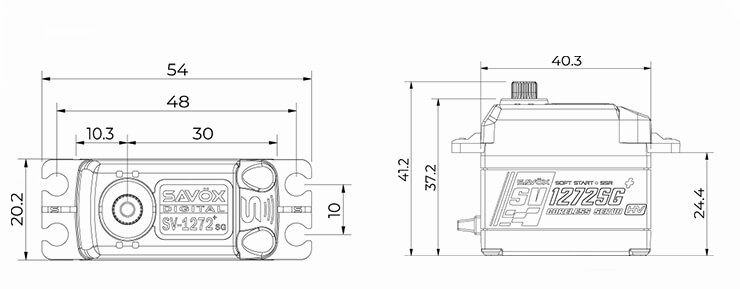

Dimensions
