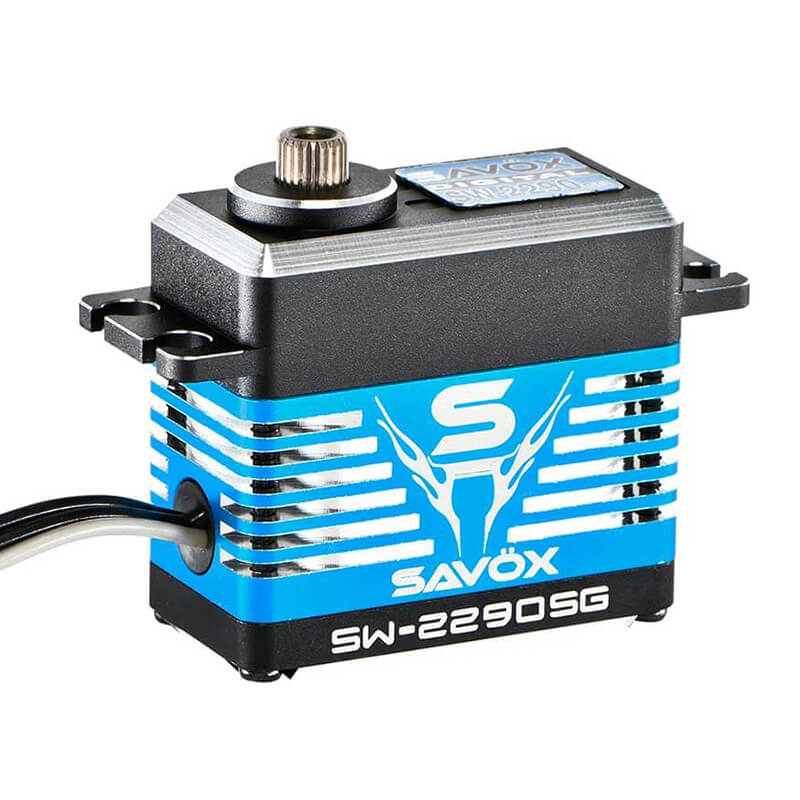

SAVOX HV CNC MONSTER BRUSHLESS SERVO 55KG/0.13s@7.4V W/PROOF

This Savox Monster Series servo delivers an insane amount of torque for specific applications where monster torque is needed.

Features Savox’s patented brushless servo motor technology that provides up to 35% more power than motors in competing brands, while smoothness and reliability are optimized through the use of three precision ball bearings.

Specifications

• Dimension(mm): 41 x 21 x 39.9
• Weight(g): 88
• Speed @6.0V (sec/60): .16
• Torque @6.0V (kg-cm): 45
• Speed @7.4V (sec/60): .13
• Torque @7.4V (kg-cm): 55
• Speed @8.4V (sec/60): .11
• Torque @8.4V (kg-cm): 70
• Gears: Unique Steel
• Bearing: 3BB
• Case: Aluminium
• Servo Horn: 25 Tooth Spline

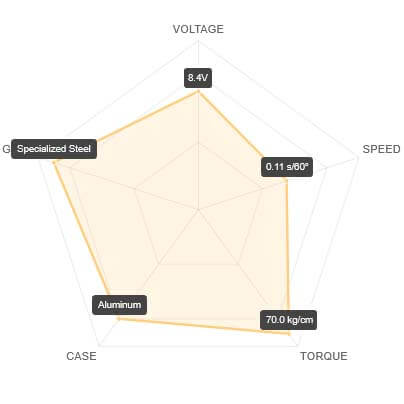

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

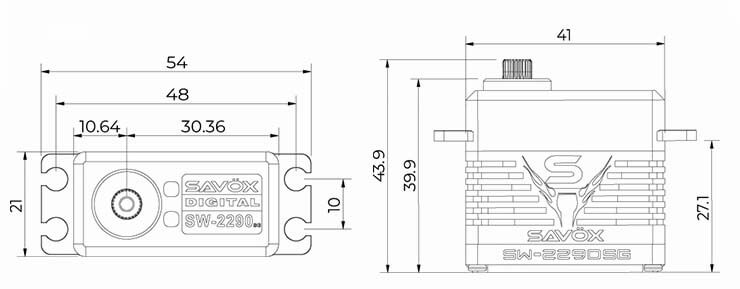

Dimensions
