SAVOX HV DIGITAL BRUSHLESS SERVO 42KG/0.13s@7.4V UPDATED+

The Savox SB2230SG+ High Voltage monster torque brushless steel gear Digital Servo is ideal for giant scale aircraft, monster truck or 1/8 scale.

Features

• Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
• Ideal for use in Giant airplanes.
• Brushless motor provides longer life and cooler operating temps.
• Extremely strong unique steel gears ensure long-life and durability.
• The full aluminium case design not only looks good but also allows for cooler and smoother operating temps.
• Savox servos are totally green – from materials to production, these servos are environmentally friendly.

Specifications

• Dimensions(mm): 40.3×20.2×45.0
• Weight(g): 84.0
• Speed(@6.0V sec/60): .16
• Torque(@6.0V oz-in): 499.9
• Speed(@7.4V sec/60): .13
• Torque(@7.4V oz-in): 583.3
• Gear: Unique Steel
• Bearing: 2BB
• Case: Full Aluminium
• Servo Horn: 25 Tooth Spline
• Frequency: 250-333
• Pulse Rate Frequency: 1520

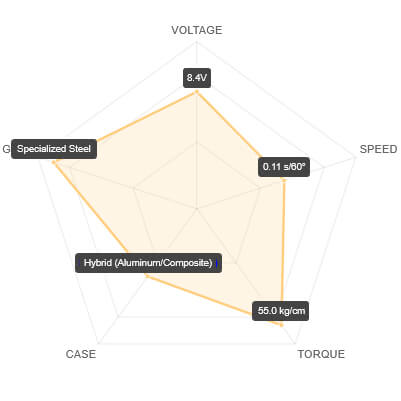

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

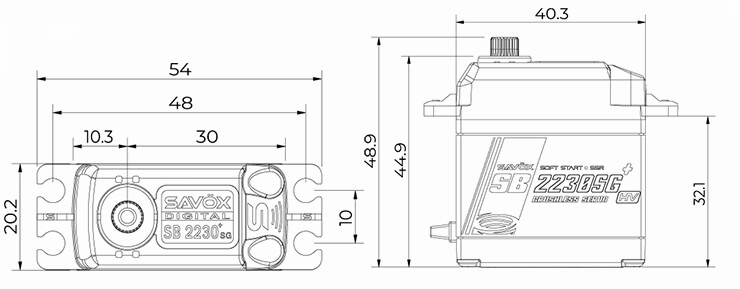

Dimensions
