SAVOX HV DIGITAL MINI SIZE SERVO 20KG/0.095s@7.4V

Description

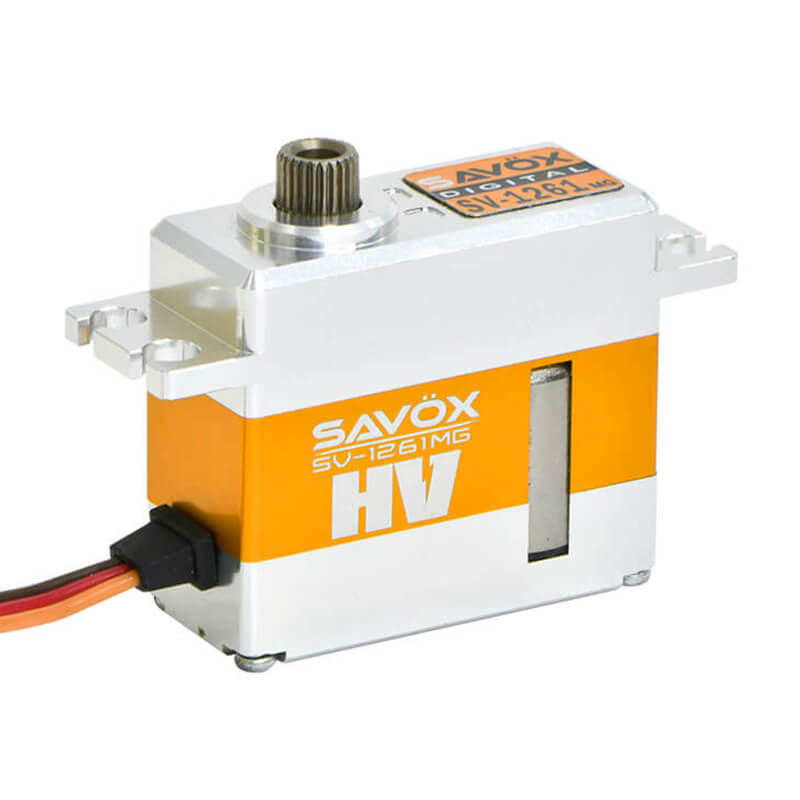

The Savox SV1261MG takes the performance of the micro servo to a new level, increasing the torque to a whopping 20kg/cm while maintaining an impressive 0.095 second transit time. Primarily intended for air applications, this powerhouse can also be used in specialty cars, trucks, and boats and is intended to be used on direct 7.4V LiPo power.

Features

• Metal gear train provide durability against heavy use.
• Capable of HV operation.
• All aluminium case provides strength and cooler operating temperatures.

Specifications

• Dimensions (mm): 35.0 x 15.0 x 31.9
• Weight: 40.0g
• Torque @6.0V (kg-cm): 15.0
• Torque @7.4V (kg-cm): 20.0
• Torque @8.4V (kg-cm): 25.0
• Speed @6.0V (sec/60 deg): 0.12
• Speed @7.4v (sec/60 deg): 0.095
• Speed @8.4v (sec/60 deg): 0.08
• Ball bearings: 2
• Case: Aluminium
• Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions
