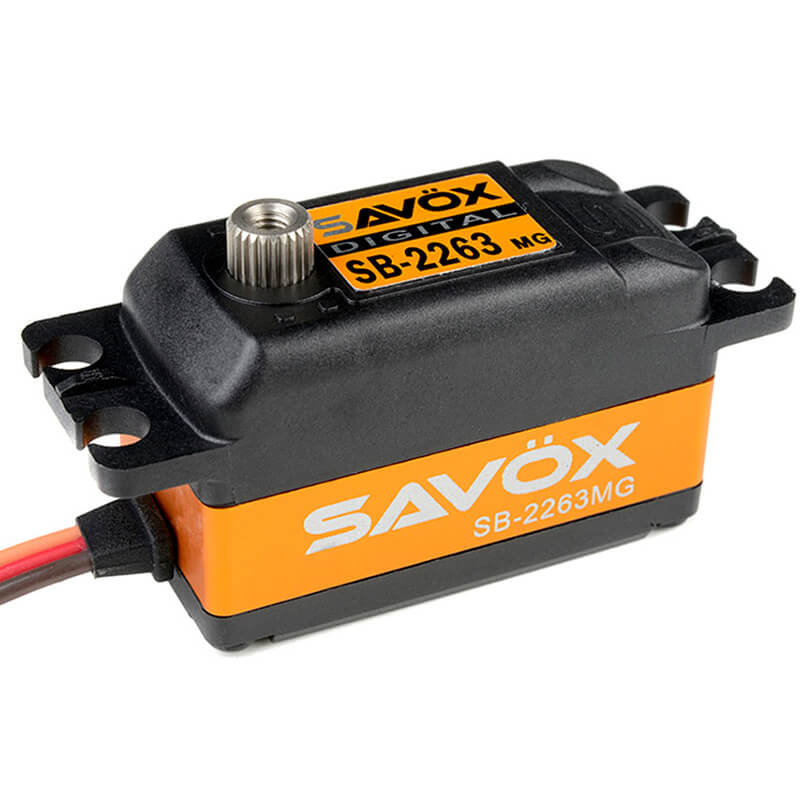

SAVOX LOW PROFILE BRUSHLESS DIGITAL SERVO 10KG/0.076s@6.0V

This servos combines leading edge technology with super high 12 bit (4096) resolution and also features a brushless motor/controller unit, and use a ‘bullet proof’ all steel gear set for unmatched strength that makes them ideal for 1/10 touring car and off road applications that require a high speed servo.

Features

• Leading edge digital servo technology
• High efficiency Brushless motor
• Accurate and fast response
• Super high resolution
• Aluminium centre case for improved motor cooling and total strength
• Precision Metal gears

Specifications

• Servo Technology: Digital Low Voltage
• Input Voltage (V): 4.8V – 6.0V
• Servo Type / Size: Low Profile
• Motor Type: Brushless Motor
• Gear Material: Metal Gears
• Bearing: 2x Ball Bearings
• Servo Case: Aluminium – Composite
• Speed 60°/Sec @ 6.0V: 0.076 Sec/60°
• Torque kg/cm @ 6.0V: 10.0 Kg/cm
• Length: 40.8 mm
• Width: 20.2 mm
• Height: 25.4 mm
• Weight: 48 g
• Connector type: JR
• Servo Horn: 25 Tooth Spline

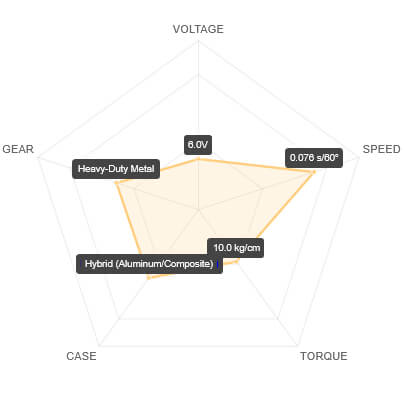

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

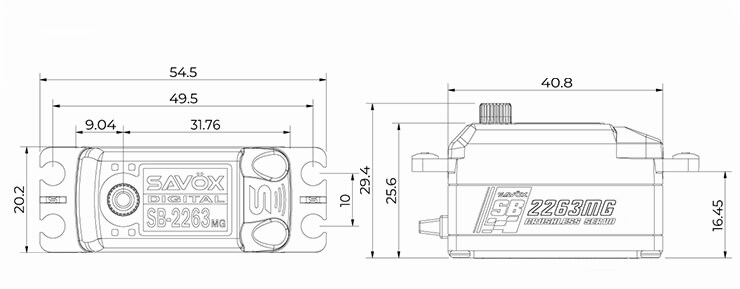

Dimensions
