SAVOX MINI CORELESS DIGITAL SERVO 4.6KG@6V (1/12 OR HELI) PLUS

The updated Savox SH1350+ servo from has finally enabled speed and torque both surpass the standard limit. Light, responsive and powerful this is servo design at its best.

Features

• The light weight of 26gm will indulge you in fluent and free fly experience with lower power consumption.
• The Coreless motor inside has brought the output performance to a greater level – smoother, faster and more efficient.
• The aluminium heatsink case design helps keep the operating temperatures low
• Ideal for rudder on 450 level heli, CCPM on 500 level heli and steering servo on 1/12th scale car.

Specifications

• Dimensions: 35.0 x 15 x 29.2mm
• Weight: 26g
• Speed @4.8V (sec/60°): 0.13
• Speed @6.0V (sec/60°): 0.11
• Torque @4.8V (kg/cm): 3.7
• Torque @6.0V (kg/cm): 4.6
• Gear: Industrial Plastic
• Case: Part Aluminium

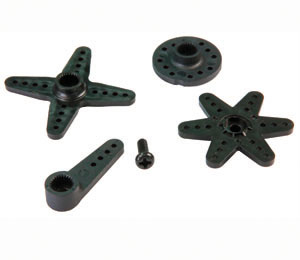

• Servo Horn: 25 Tooth Spline

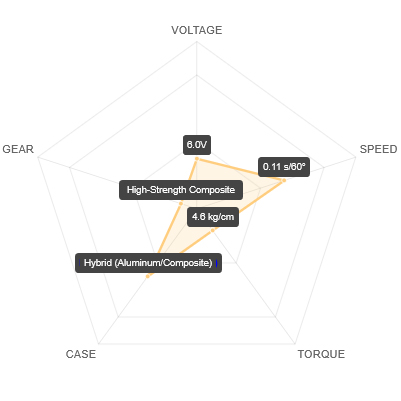

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

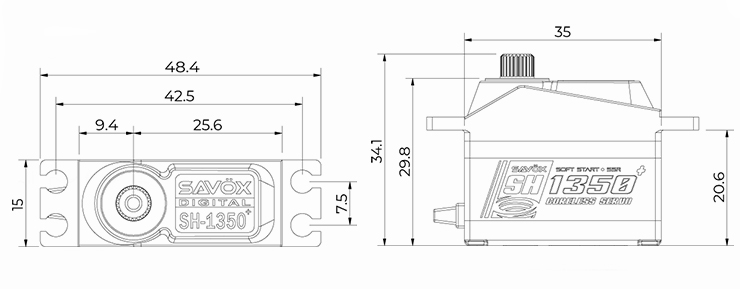

Dimensions
