SAVOX W/PROOF DIGI SERVO 20KG/ 0.15s@6V 32KG/0.13s@7.4V- PLUS

The SW1210SG+ is the premier waterproof digital servo in the Savox Line-up. This coreless servo boasts 20 kg-cm of torque and a speed of .15 at 6.0V and is now High Voltage capable with an impressive 37 kg-cm of torque and a speed of .12 at 8.4V.

It combines leading edge technology with super high 12-bit (4096) resolution and steel gears for one versatile and waterproof servo!

This is a great upgrade if your looking to drive your RC vehicle in any condition…rain, sleet, or snow.

Features

• Combines leading edge technology with super high 12 bit (4096) resolution and steel gears.
• Waterproof.
• Coreless motor provides high speed, incredible efficiency, and low power consumption.
• Extremely strong steel gears ensure long-life and durability.
• The case design not only looks good but also allows for cooler and smoother operating temps.
• Our servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for RC cars, trucks, buggies, and boats.

Specifications

• Dimensions(mm): 40.6 x 20.7 x 42.0
• Weight(g): 71
• Speed @6.0V (sec/60): .15
• Torque @6.0V (kg-cm): 20
• Speed @7.4V (sec/60): .13
• Torque @7.4V (kg-cm): 32
• Speed @8.4V (sec/60): .12
• Torque @8.4V (kg-cm): 37
• Gear: Unique Steel
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

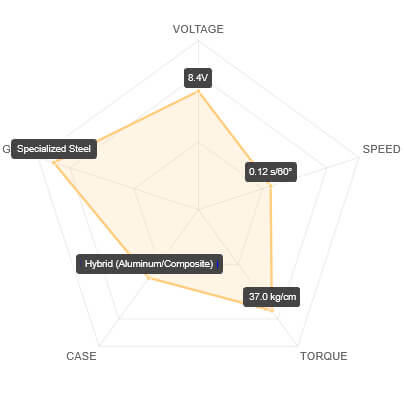

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

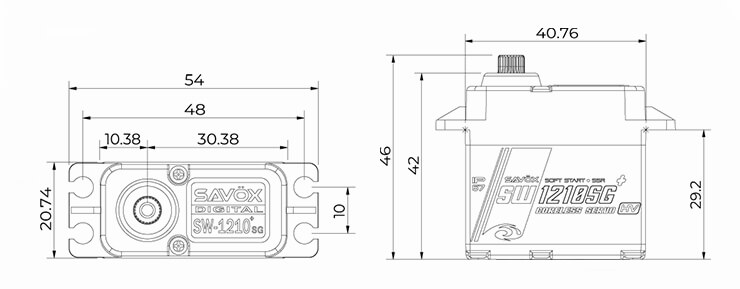

Dimensions
