Servo, digital high-torque 600 brushless, metal gear (ball bearing), waterproof

FEATURES

• Easy drop-in installation into most Traxxas 1/10 and 1/8 models
• Fully waterproof, not “water resistant
• Compatible with Traxxas Stability Management (TSM)
• 580 oz-in torque and 0.13 sec/60 at 6.0 volts
• 705 oz-in torque and 0.09 sec/60 at 7.4 volts
• Full steel gears
• Full ball bearings
• Brushless motor technology
• Finned aluminium case
• Compatible with most Traxxas 1/10 and 1/8 scale electric models*
• Compatible with TRX-4 models using high power BEC Kit 2262 and 8247X metal servo horn
• Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
• Compatible with Maxx using adapter 7749 and servo arm from 5345R
• Not recommended for X-Maxx or XRT

DETAILS

The Traxxas High-Torque 600 brushless servo is the ultimate steering upgrade for your 1:10 or 1:8 scale vehicle. With 600 oz-in of torque at 6 volts and a staggering 700+ oz-in or torque at 7.4 volts, the High-Torque 600 has ample power to turn even the heaviest trucks with authority. The High-Torque 600 includes a long list of high-performance features including full steel gears, ball bearings, and a finned aluminium case for added heat dissipation.

The Power to Perform
The High-Torque 600 servo is fully waterproof, not just “water resistant and drops into most 1:10 and 1:8 scale Traxxas vehicles. With almost 5 times the power of a standard 2075 servo, the High-Torque 600 delivers maximum steering authority and speed for high-demand vehicles like Sledge, Raptor R, Revo, and lifted TRX-4 models with 2.2 wheels and Tyres. With a quick transit time of 0.13 sec/60 at 6.0 volts, the High-Torque 600 works great with TSM equipped vehicles to produce fast, responsive handling.

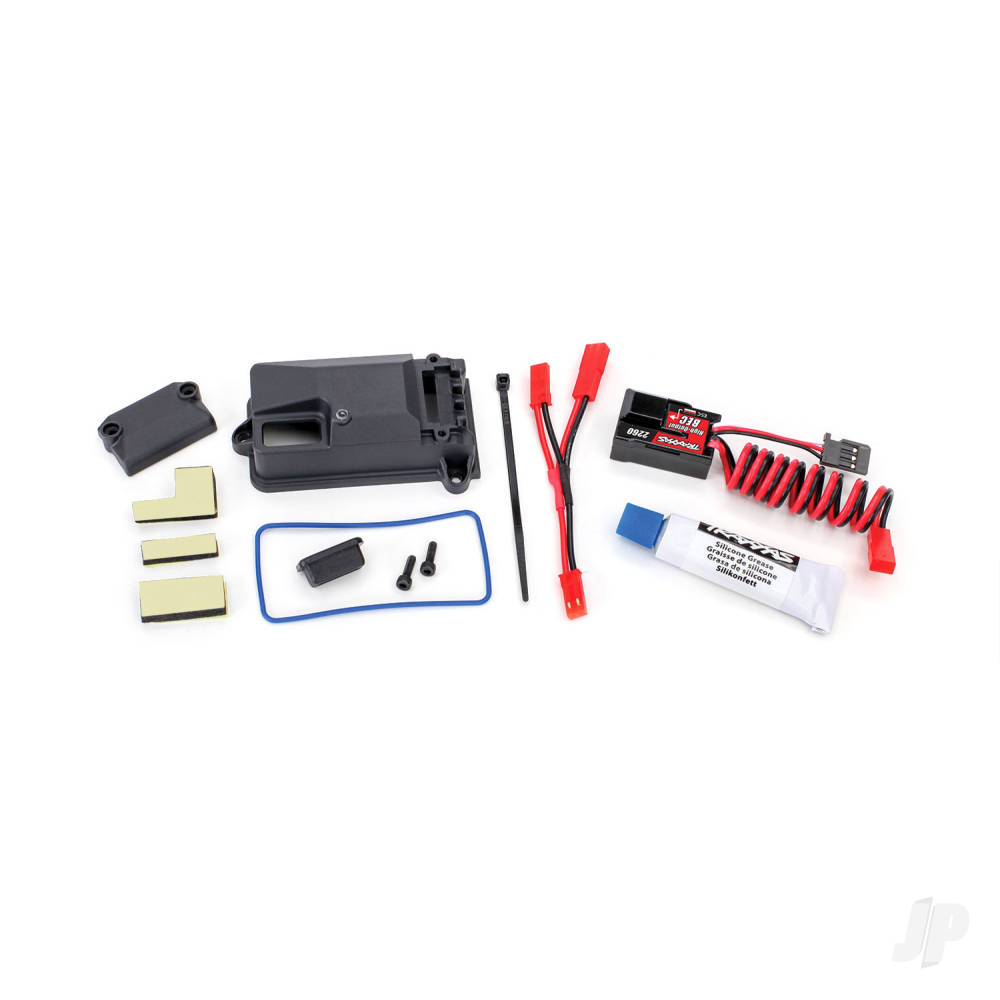

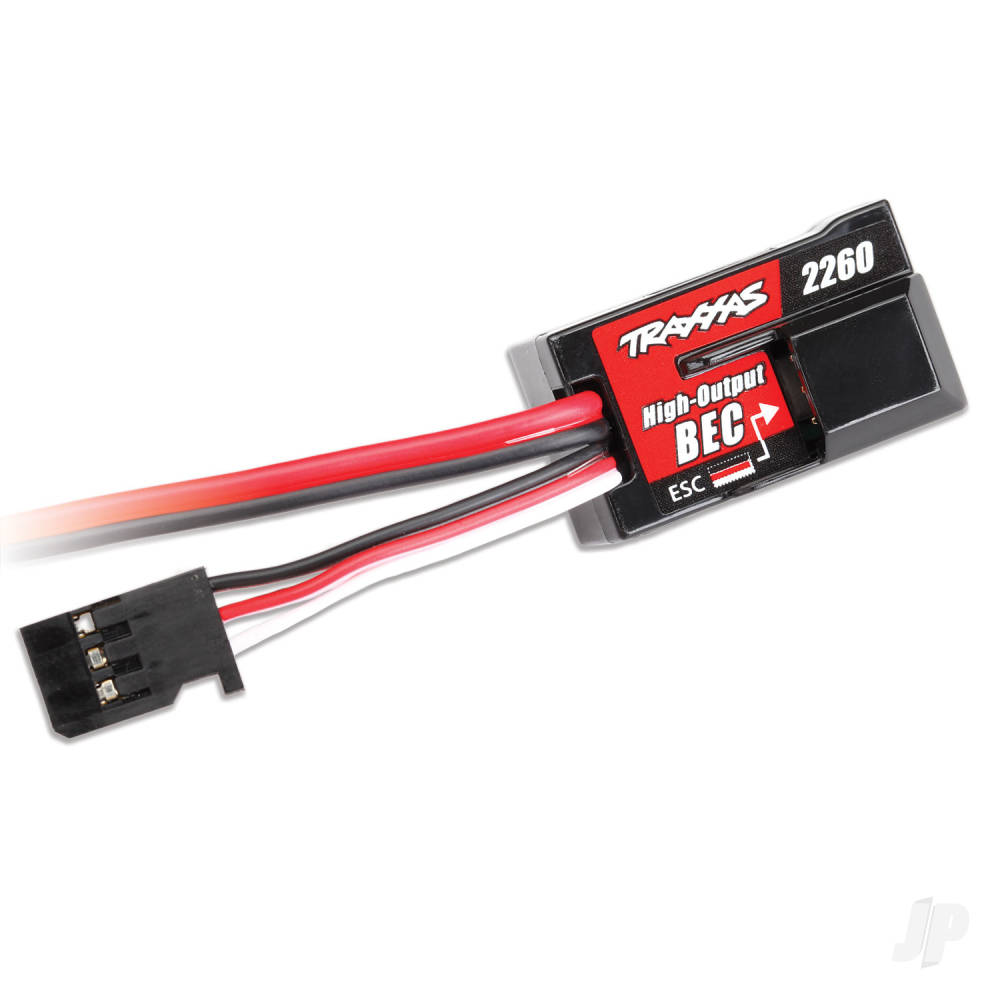

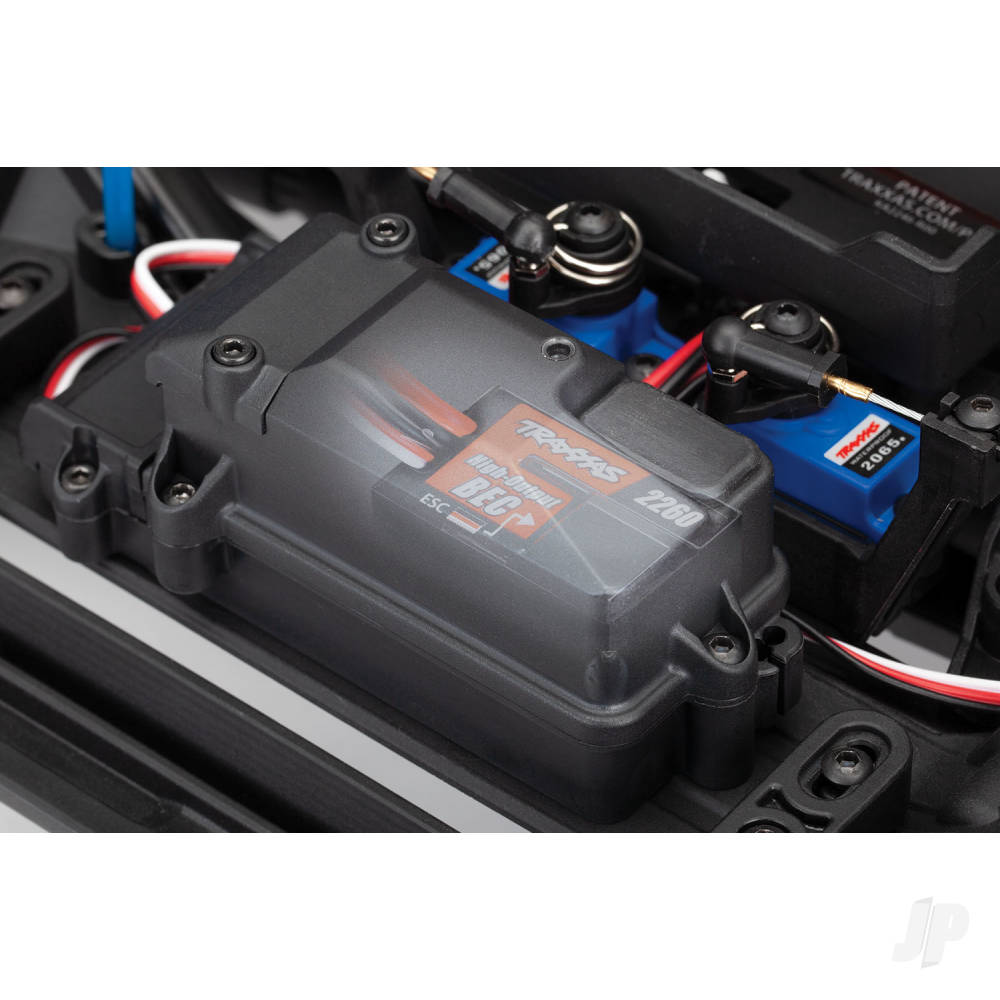

The Traxxas High-Torque 600 servo represents a huge power upgrade for TRX-4 and TRX-6. When installing this servo, it is required that you use the high-power BEC kit 2262. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.

Waterproof Not “Water Resistant”
Traxxas knows the difference between “water resistant and waterproof. Traxxas High-Torque servos are completely waterproof to give you the freedom to run when you want, where you want. Power through streams and bogs without fear while trucks with “water resistant servos are stuck on the side lines.

Specifications:

• Motor Type:
  Brushless
• Operating Voltage:
  6.0 – 7.4V
• Speed:
  0.13 sec/60 at 6.0 volts
  0.09 sec/60 at 7.4 volts
• Torque:
  600 oz-in at 6.0 volts
  705 oz-in at 7.4 volts
• Weight:
  64g
• Gears:
  Metal
• Output Spline:
  25T
• Case:
  Finned aluminium
• Controller:
  Digital

Application Guide:

• Compatible with most Traxxas 1:10 and 1:8 scale electric models*
• Compatible with TRX-4 models using high power BEC Kit TRX2262 and TRX8247X metal servo horn
• Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
• Compatible with Maxx using adapter TRX7749 and servo arm from TRX5345R
• Not recommended for X-Maxx or XRT

*Does not fit 4-Tec models, XO-1, Unlimited Desert Racer, Spartan or Jato. Other models may require minor trimming.
