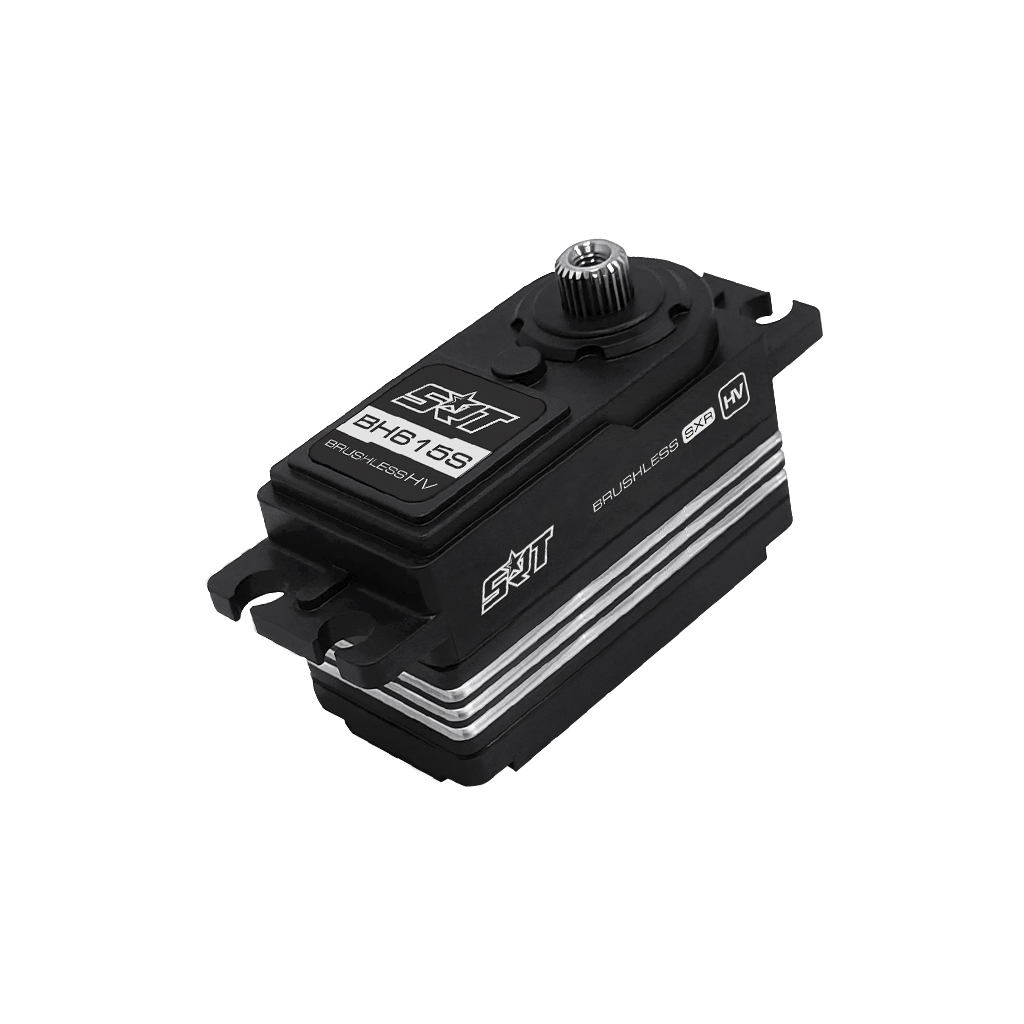

SRT 615S 1/10th Onroad HV Brushless Servo

Description

KEY FEATURES

– Ideal for 1/10 on road applications
– incredible efficiency and low power consumption
– Aluminum case for good heat dissipation
– NMB dual main bearings
– Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
– 25T output shaft
– 1-Year Limited Warranty

Application :

1/10 Electric Touring
1/10 2WD Electric Buggy
Formula One

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.062 sec/60 degrees at no load
operating speed (7.4v): 0.052 sec/60 degrees at no load
operating speed (8.4v): 0.045 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0×20.0x26.4 mm /1.61×0.79×1.04 in
weight: 49.0g (1.73 oz)
connector wire length: jr 180 mm
