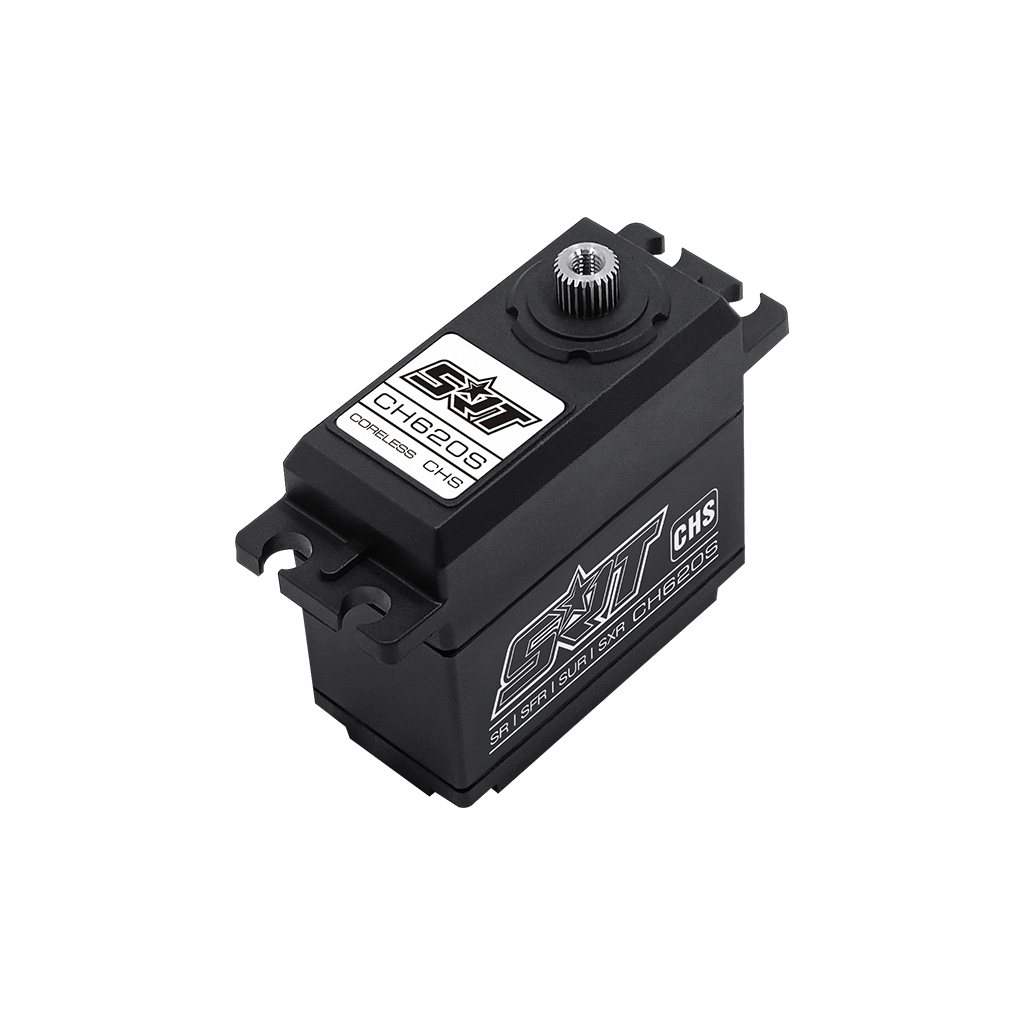

SRT CH620S 1/8 Scale HV Coreless Servo

Description

KEY FEATURES

– Incredible efficiency and low power consumption
– Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
– 2 μsec Dead Band
– 1-Year Limited Warranty

Application :
1/10 4WD Electric Buggy
1/8Scale Car
1/10 Nitro Touring
1/8 Nitro GP>
1/8 Electric GP

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive
dimensions: 41.3×20.5×38.3 mm /1.63×0.81×1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
