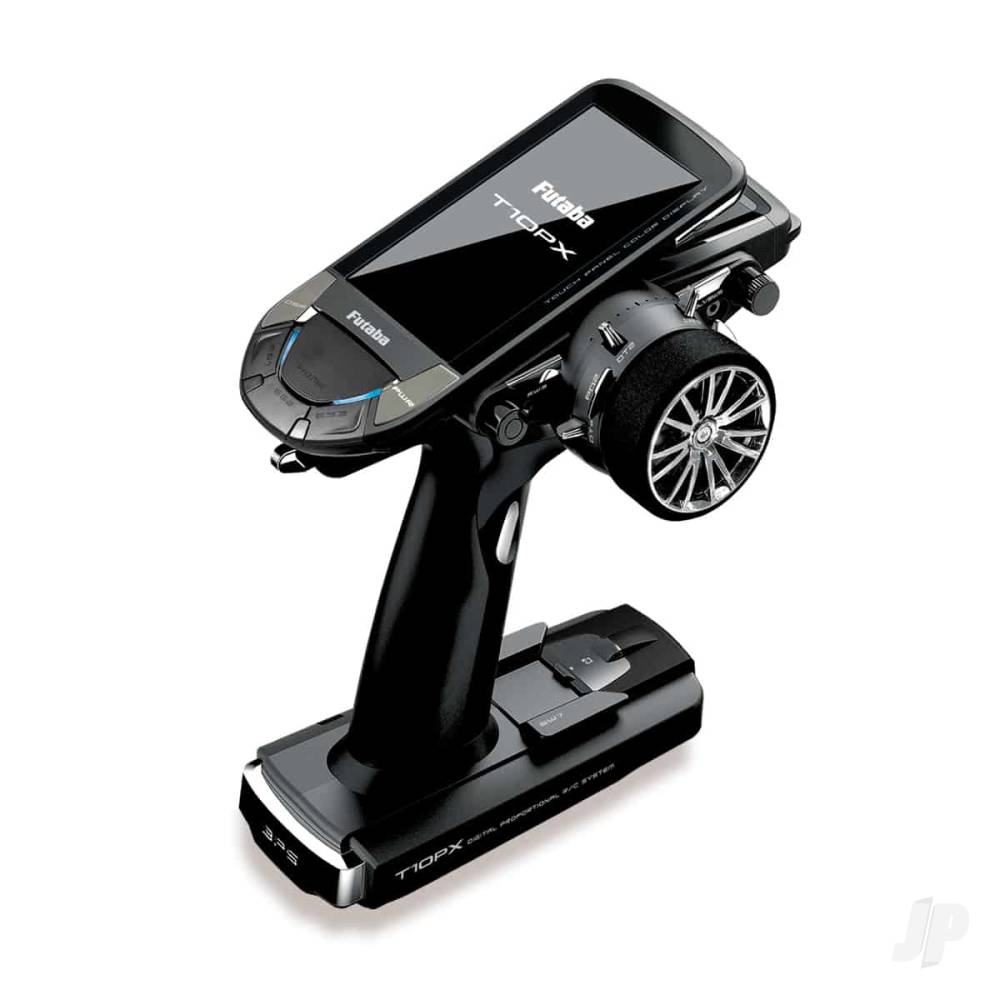

T10PX 10-Channel Surface Radio with 3x R404SBSE Rx

FEATURES

• 10 channels.
• 40 model memories.
• F-4G, S-FHSS, T-FHSS & Mini-Z protocols.
• Full colour 4.3 inch HVGA LCD.
• Telemetry (temp / RPM / volts / amps / GPS).
• Steering mix.
• Acceleration mix.
• Brake mix.
• Gyro mix.
• 4WS mix.
• Dual ESC mixing.
• CPS mixing.
• Winch mix.
• Tank mix.
• Tilt mix.
• Program mixing.
• Condition programming.
• Exponential (steering, throttle & brake).
• Speed (steering & throttle).
• Servo response.
• Traction control.
• ABS.
• Throttle speed.
• Engine cut.
• Drag racing (trans brake).
• Idle-up.
• Timers (x4).
• Lap list.
• S.Bus servo.
• MC (ESC) link.
• Gyro link.
• Warning alarms.
• Vibration alert.
• Intuitive programming interface.
• MicroSD card port.

CONTENTS

• 1x T10PX transmitter.
• 3x R404SBSE receivers.
• 1x Dry battery holder.
• 1x Wheel offset adapter & screws.
• 1x Wheel adapter (32 degree).
• 1x Wheel angle spacer (5 degree).
• 1x Large diameter steering wheel.
• 1x Trigger guard.
• 1x Rubber grip.
• 1x Blind paddle set.
• 1x Hex wrench.
• 1x Short manual.

DETAILS

Futabas T10PX represents a top-tier surface radio thats engineered for performance and offers complete customisation. Designed for the discerning racer, the 10PX fuses cutting-edge technology with Futabas renowned reliability, delivering unrivalled precision for competitive R/C driving.

Powered by Futabas ultra-fast 4th generation F-4G telemetry system, the 10PX offers lightning-fast response and near-zero latency giving you the critical edge on track. Meanwhile, its 10-channel capability is paired with an impressive 40 model memory, allowing you to manage all the vehicles you need with total ease, from 1/8 nitro buggies to electric touring cars, trucks, tanks and and everything in between. But, of course, theres more. Boasting 4.3 inches of vibrant full-colour the touchscreen delivers an intuitive and highly responsive interface, giving you full control over advanced settings such as throttle curves, dual rates and telemetry readouts. Among its standout features are dedicated truck and track mix menus, designed specifically for managing multi-axle trucks or dual-motor crawlers, as well as fine-tuning traction and balance across different surfaces ideal for competitive off-roaders who demand adaptability across disciplines.

Ergonomically refined, the T10PX offers a fully adjustable wheel along with throttle trigger tension, ensuring a perfectly tailored feel in hand. Bluetooth and USB connectivity, voice feedback and vibration alerts further enhance its capabilities making this radio as smart as it is powerful. With its advanced features, extensive model capacity and tailored control options, the Futaba 10PX isnt just a transmitter, it’s an essential piece of tech thats built specifically to raise your game.

Full colour touch screen
T10PX has an HVGA 4.3 inch transflective screen, which enables both indoor and outdoor visibility.
F-4G system and telemetry
The F-4G system enables 30% faster response with UR servos.
10 channels
Enjoy full control with 10 channel availability.
T-FHSS Mini-Z system
By setting the Mini-Z system you can pair with the Kyosho Mini-Z Evo dedicated receiver RA-42.
Update-able software
Software can be updated by microSD card. Model data and telemetry data can also be saved on a microSD card.
40 model memory
Model names can use up to 15 letters, number and symbols.
Switch availability
A paddle switch near the wheel, plus a 3-position switch on the grip and a bottom switch are provided to support multiple functions.
LiPo battery option
For extended running times the optional LT2F2000B LiPo battery can be used as the transmitter’s power supply.
Brake mixing
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.
Steer mixing
Smoother cornering can be achieved using the independent left and right steering servo setting.
4WS mixing
For use with crawlers and other 4-wheel steering type vehicles.
Dual ESC mixing for crawlers
ESCs at the front and rear can be controlled independently.
Gyro mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T10PX.
Tank mixing
For tanks, excavators and all tracked vehicles.
CPS mixing
LED lighting / ashing control can be matched to steering and throttle operation.
S.BUS servo
A handy function that allows the setting of S.Bus servo parameters.
MC-Link
A dedicated function allowing Futaba speed controller data changes to be made via a PC.
Throttle speed
Sudden trigger operation on a slippery road surface can cause tyres to spin. Setting the throttle speed allows the operation to be performed smoothly and easily.
Non-telemetry LED
Confirms when the telemetry function is OFF.
Dial select function
This assigns functions to dials. The step amount and operating direction can also be adjusted.
Switch select function
This assigns functions to 10 switches. The operating direction can also be set.
Wheel & Trigger position
The wheel position can be oset, the wheel angle can be adjusted and the throttle trigger can be moved forward and backward.
Rubber grip
It is possible to alter the grip type.
Trim/dial lock functions
The lock functions prohibit the setting and operation of the transmitter trims and dials.
Left-handed support
The wheel can be reversed for left- or right-handed operation.
Vibration warning
Vibration alert can be applied to the grip and linked to the the timer, battery level and a variety of other warnings.
USB port
For certain games the transmitter can be used as a controller by connecting it to a computer with a USB cable.
