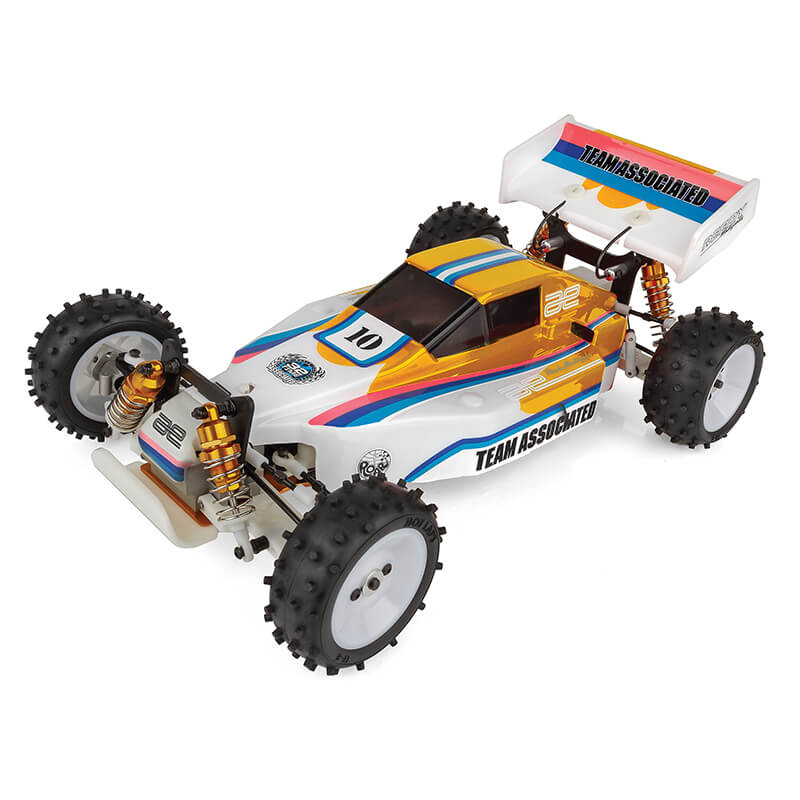

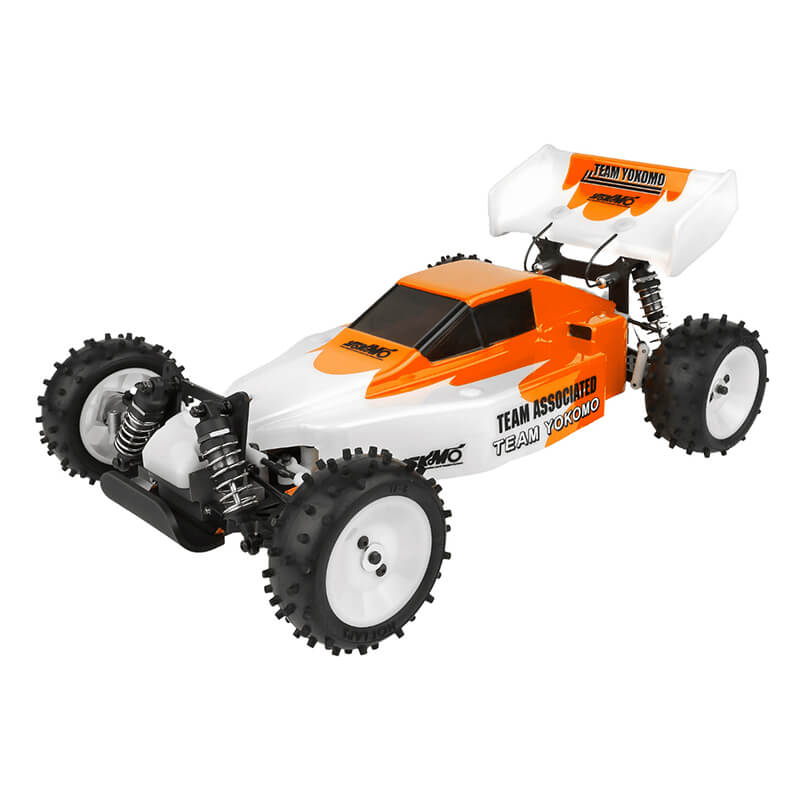

TEAM ASSOCIATED EDITION YOKOMO YZ-10 CLASSIC KIT

Description

Competition 4WD 1/10 Scale Electric Race Buggy.

When the serious racers on Team Associated wanted to go 4WD racing, they chose the best car they could find: The Yokomo YZ-10.

This car is state of the art. It’s not only designed to be the best 4WD car in the world, it’s also designed so that it’s easy to work on. If you’re really serious about 4WD racing, race the best – the YZ-10.

The front end includes a gear differential, universal drive shafts and an adjustable track width. Plus fully adjustable coil over, oil-dampened shocks, front and rear.

High traction, low profile tyres and wheels, front and rear, for super handling. Realistic-looking Protect IV body has separate under pan to keep your car clean. Body includes functional air scoop for the motor cooling.

With a very efficient 2-belt drive system, the YZ-10 includes a gear differential, slipper clutch, and universal drive shaft. Saddle mount battery pack for better weight distribution.

Features

• 4WD belt drive.
• Adjustable servo saver.
• 3 servo horns included.
• 21T pinion gear included.
• Chassis protector.
• Metric hardware throughout.
• Fluid-filled gear differentials.
• Ball bearings.
• Gold Aluminium chassis.
• Aluminium bulkhead, motor mount, rear hubs, and steering knuckles.
• Spring loaded servo saver.
• Floating servo mount.
• Gold Threaded shocks.
• Anti-roll bar.
• Original studded tyres.
• Slipper clutch.
• Battery box for shorty battery.
• White Dyeable Plastics.

Specifications

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit
Length: 395mm (15.55″)
Power: Electric
Width: 235mm (9.25″)
Height: 190mm (7.48″)
Wheelbase: 273.5mm (10.77″)

Please Note: This vehicle comes as a kit and must be fully assembled by the user.

Required To Complete

• 2S Shorty LiPo battery for radio-controlled car.
• Radio control battery charger.
• 1:10 scale radio control electronic speed control.
• 1:10 scale 540-size electric RC car motor.
• 2-channel RC surface transmitter and its batteries.
• Steering servo.
• 2-channel receiver.
• Paint for the body.
