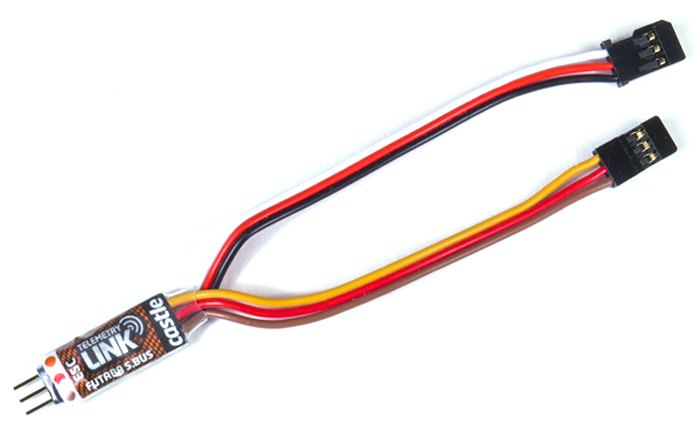

Telemetry Link SBUS2 (Futaba Compatible)

CASTLE

£71.99

RRP: £74.99
You save: £3.00

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

5 in stock

Add to wishlist
Add to compare
SKU: LOGIC-P-CC010-0152-00 Categories: , , , , ,

Maybe you want to know the voltage of your onboard battery (s), the RPM the motor is turning or the temperature of your ESC. In this day and age R/C is not just one way communication anymore. Traditional radio systems just transmit signals to the receiver, but Telemetry-capable systems send real-time data from your model back to your transmitter.

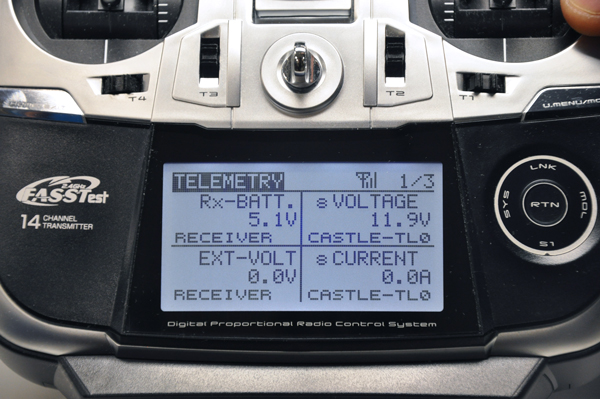

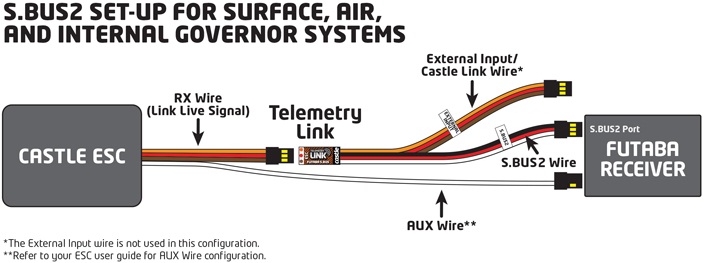

The S.BUS2 Telemetry Link was developed based on communication protocol disclosed from Futaba for use with specific Futaba S.BUS2 radios and compatible Castle Creations ESCs. Telemetry data can be displayed on the transmitter screen, or for parameters where you only want to be notified when a defined threshold is exceeded, (battery voltage, ESC temperature, etc.) you can configure a vibration or sound alert from the radio.

Compatible Castle ESC The ESC must have the ability to accept a bi-directional communication protocol that gives it the ability to transmit real-time telemetry feedback. This feature is called Link LiveT and needs to be enabled on compatible ESCs using Castle Link T (P-CC0500). Click here to view the Castle ESC Compatibility Chart.
Compatible Futaba S.BUS2 Radio S.BUS2T extends Futaba S.BUST and supports bidirectional communication. Compatible radios will support S.BUS2 protocol. It is also necessary to utilize a compatible Futaba® Telemetry Receiver. Click here to view the Futaba® Radio Compatibility Chart.
