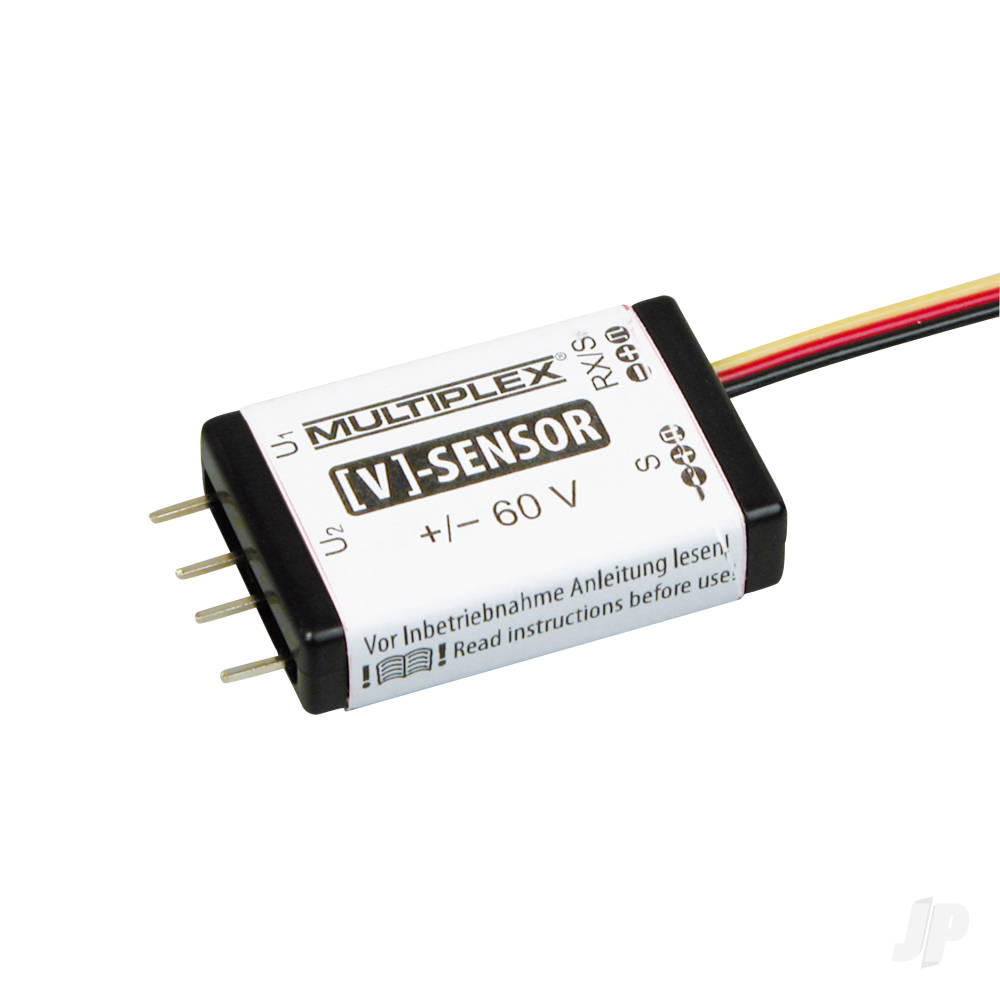

Voltage Sensor For Receivers M-LINK 85400

Multiplex

£52.55

RRP: £55.90
You save: £3.35

We keep most products in stock, however we are currently working on a live stock system.  Feel free to give us a call on 01462 619543 to check if we have it in stock in our shop.

Found this product cheaper elsewhere? Enquire now about a price match!

Out of stock

Add to wishlist
Add to compare
SKU: JP-MPX85400 Categories: , , ,

DETAILS

Measures voltages up to 60 V (e.g. drive battery, ignition battery, turbine battery, etc). Monitor all safety-relevant voltages in the model and keep an overview. After activating the second measuring channel with the MULTImate (# 8 2094) or using the “Sensor DataManager”** PC program, a second voltage value can also be recorded and output on the transmitter.

Can be activated or set using MULTImate or “Sensor DataManager”**:

  • Address – (display line on the transmitter) under which the voltage is displayed
  • Alarm – high Upper voltage value from which an alarm is triggered on the transmitte
  • Alarm – below Lower voltage value from which an alarm is triggered on thetransmitter
  • Option – Additional output of miniumum, average or maximum voltage
  • Address option – (display line on the transmitter) under which the option value isdisplayed
  • … – Analogously for the second measuring channel

**Intergrated in the MULTIPLEX Launcher
