XERUN DRX 3662SD 6500KV BLACK

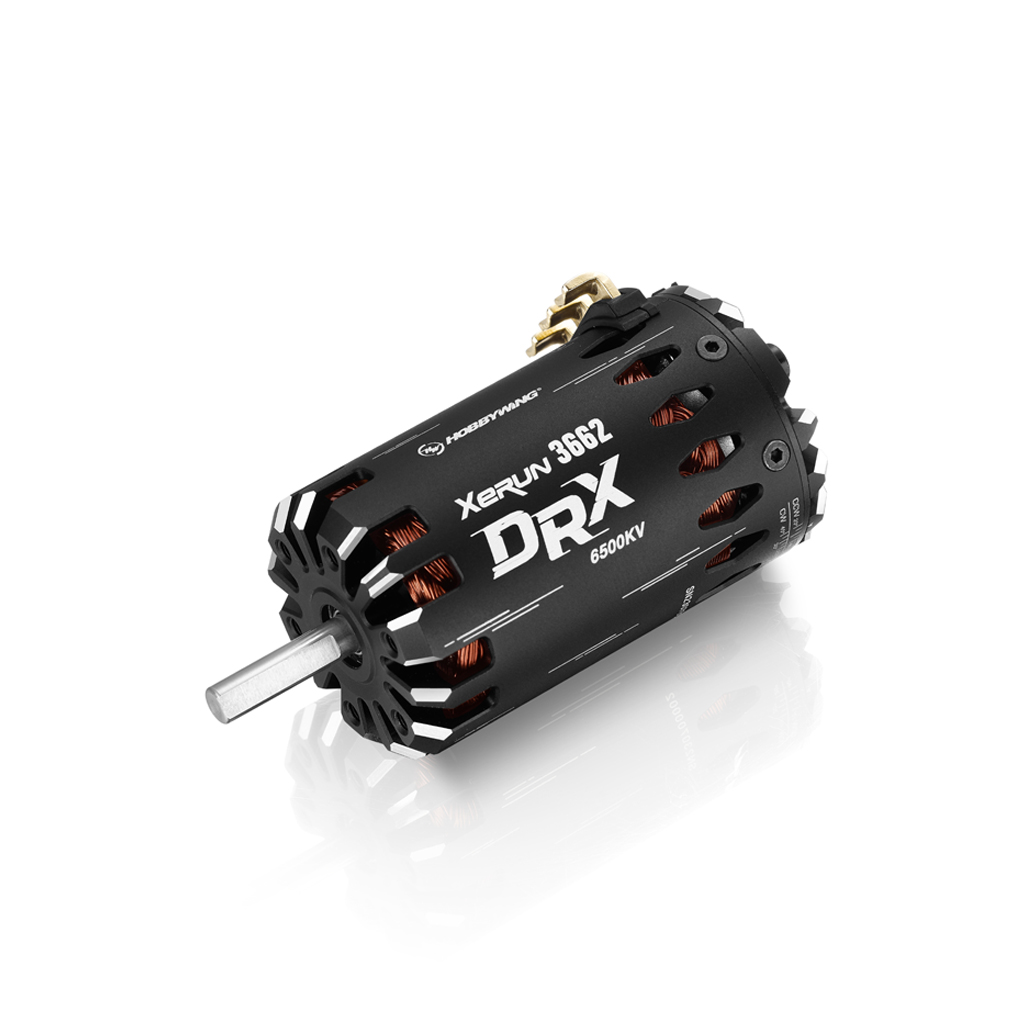

Introducing the Hobbywing XeRun DRX 3662SD 6500KV Brushless Drag Racing Motor.

Failure Proof Rotor
The rotor steel sleeve ensure it will withstand the most extreme demands.

Dual sensor port design for easy wiring
Dual sensor ports allow builders wiring options.

Modular design for easy maintenance
The motor adopts a modular structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Premium materials, strong and reliable
High hardness aluminum

CNC shell
High performance

iron core
Steel sleeve design

explosion-proof rotor
200 ° C high temperature

resistance wire
High toughness alloy

output shaft
Top-of-the-line

bearings
The outlet terminal adopts customised UU-shaped gold-plated curved copper bar which are widened and thickened in order to have a lower internal resistance, stronger current resistance, and makes soldering a breeze.

Specifications

Type

Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Pole Count – 4

Relevant Parameters

KV Rating – 6500
LiPo Cells – 2S
No-load Current(A) – 8.0A

Size & Weight

O.D.(mm) – 36
Length (mm) – 63
Shaft Diameter (mm) – 5
Weight (g) – 240g
Front Bearing – D11*D5*t5
Rear Bearing – D8*D3*t4

Applications

1/10th Drag Racing
