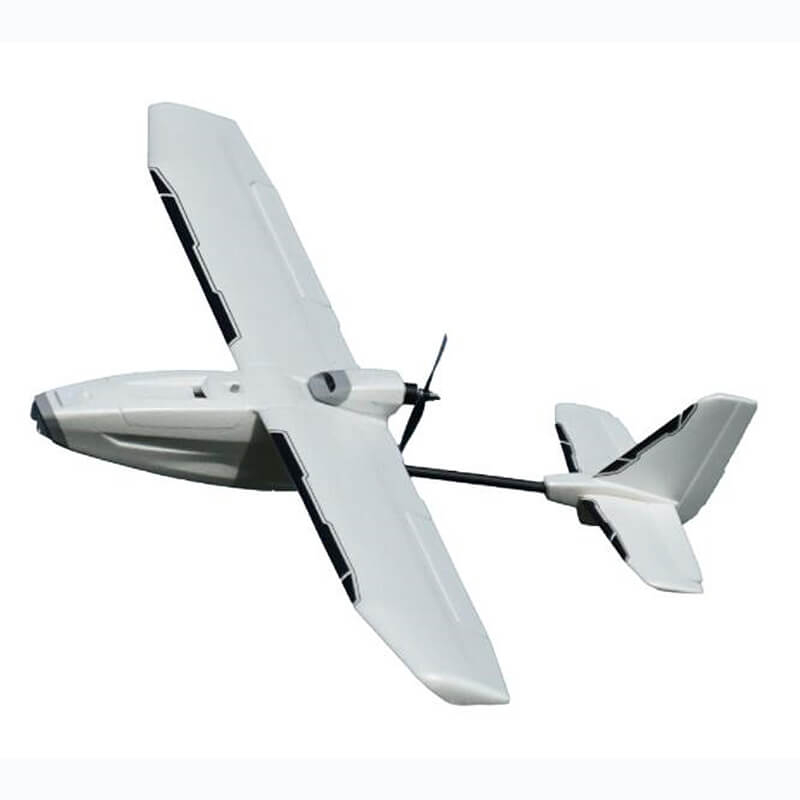

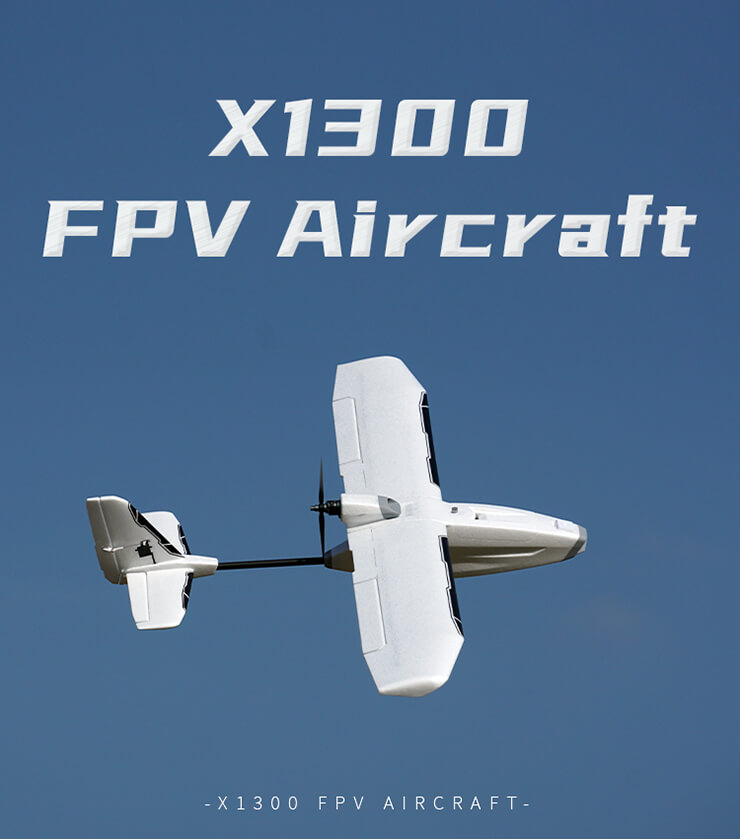

XFLY X1300 FPV MONOPLANE KIT (ELECTRONICS NOT INCLUDED)

XFly Model X1300 is an FPV aircraft which uses 3D printing technology on most components. 3D files are accessible for customers to download and print plastic parts for replacement or modification, making it possible to explore more fun.

X1300 is a high wing monoplane with 1300mm wingspan and a rear-mounted pusher propeller, delivering FPV flying experience with stability and forward visibility. Hand launch is a breeze while taking off from the ground with landing gears (sold separately) is also an option. Assembly is simple and quick with no screws or glue needed and you can get the aircraft assembled in just a few minutes. Battery compartment is spacious enough to accommodate common 4S LiPo batteries or 21700 batteries for optimised flight times. With a place reserved on the battery hatch, DJI O3 or Walksnail Moonlight Kit FPV transmission system can be installed. X1300 also supports simultaneous installation of fix view and multi-axis gimbals. Moreover, customers can modify the aircraft and add flaps in the reserved position.

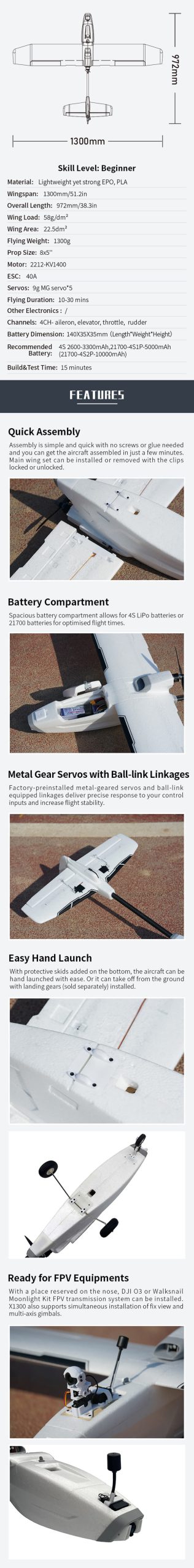

Features

• Quick assembly with no screws or glue required.

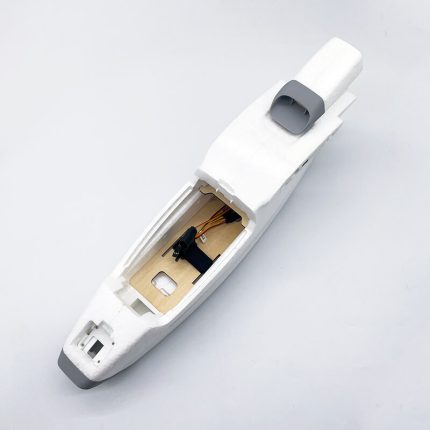

• Spacious battery compartment allowing for 4S LiPo batteries or 21700 batteries for optimised flight times.
• 3D files accessible to download, making it easy to acquire plastic parts needed.
• Digital metal gear servos with ball-link equipped linkages for precise and stable movement.
• Easy to hand launch, or install the optional landing gears to take off from the ground.
• Flaps can be added in the ‘reserved position’.

Specifications

Material: Light Weight Strong EPO & PLA
Wing Span: 1300mm (51.2in)
Wing Load: 58g/dm²
Wing Area: 22.5dm²
Length: 972mm (38.3in)
Flying Weight: Around 1300g
Servo: 9g Metal Gear Servo x 5 (Installed)
Motor: 2212 1400Kv Outrunner Brushless Motor (Installed)
ESC: 40A Brushless ESC (Installed)
Propeller: 8 x 5  2 Blade Propeller x 1 Set (Included)
Battery: Li-Po 4s 14.8v 2600mAh – 3300mAh / 21700-4S1P-5000mAh (21700-4S2P-10000mAh)
Radio: 4 – 6 Ch Radio Control
Approximate Flying Time: 10-30 mins
Assembley Time: 15 mins
Skill Level: Beginner
Age Level: 14+ Years
Flap: No
Retract: No
Landing Gear: Optional
Prop Size: 8×5”
